6MP Fish-eye Network Camera IPC7F6-AF

FAQ

1. How many channels do the unit supports?


IPC7F6-AF supports a maximum of 5 channels simultaneously with 2048*2048 resolutions for fisheye view stream, 2048*1536 for panoramic and 1024*768 for the rest 3 streams.

It also supports the following combination:

1. 1 x fisheye (3072 x 2048, 25fps)

2. 1 x panoramic (2048x1536, 30fps)

3. 4 x PTZ at (1024 x 768, 30fps)

4. 1 x fisheye(2048 x1536, 15fps) and 3 x PTZ (1024 x 768, 15fps)

5. (2048 x1536, 15fps)1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048


x1536, 15fps) and 3 x PTZ (1024 x 768, 15fps)

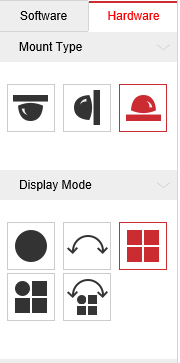

If viewed from IE browser, it can achieve up to 9 views, achieved by software:

2. How is Lens distortion correction achieved?


All images are processed within the IPC7F6-AF unit itself, with Lens distortion corrected. There is no extra processing required from NVR or PC side.

3. How do I connect to NVR?


Connect through PoE port:

Connect the camera to the NVR PoE port with Ethernet cable. You can leave channel 1 in Plug and play mode and add the rest channels by manual configuration with same camera IP address yet different channel No.

Connect through LAN:

Connect the camera to the switch, power on the camera; assign IP address to the camera (Camera IP should be in the same segment as NVR IP), then manually add each channel to the NVR with same camera IP address and different channel No.
