Activate Device with SADP and Add to NVR over Network

Activate Device with SADP and Add to NVR over Network












Activate IP Camera with SADP and Add IP Camera to NVR over the Network













Step 1: Install the SADP Application from the link below.

https://app.box.com/s/dmix8r9t0exurvagtg3jxth0jscy5aog

Step 2: Make sure that either the computer/laptop is in the same network as the switch or the computer is connected to the same switch as the devices.

Step 3: The SADP application will list the “Inactive” devices connected to the switch as shown in the figure below.













Step 4: Select the “Inactive” devices by checking the box next to the Device Type. Create a “New Password” and “Confirm password”

(Note: It is recommended to use the same password as the NVR)


Step 5: Click on “Confirm” to finish activating the devices.



Step 6: Click “Refresh” before proceeding with the step.

Step 7: Assigning IP Addresses to activated devices.

  • Select each device individually and input the desired IP Address
  • Input the password
  • Click “Modify”
  • Repeat the steps for all the activated devices. The IP address has to be unique for each device.












Step 8: Adding the activated devices into the NVR over network.

  • Make sure the NVR and the devices are in the same network

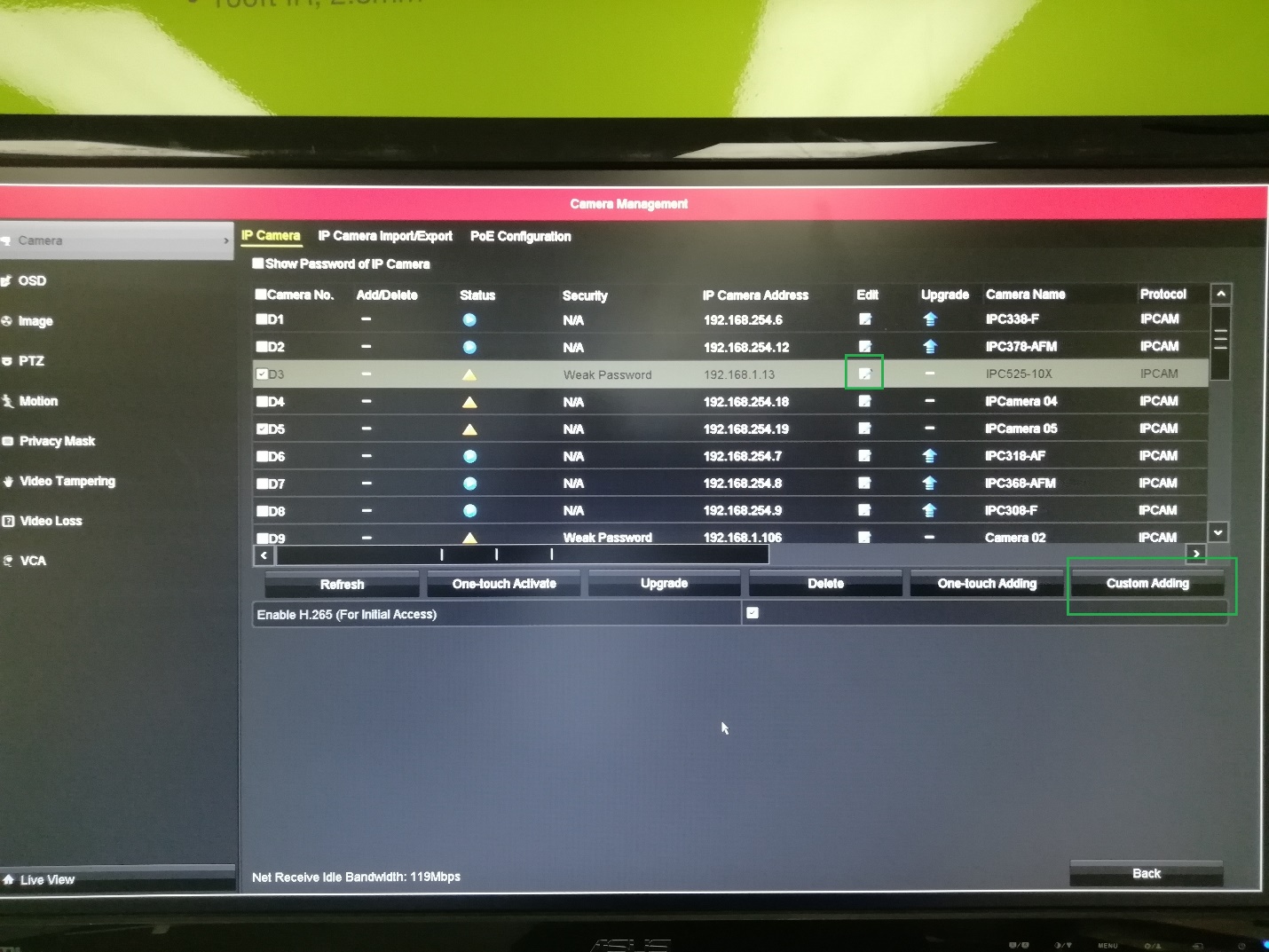

  • On the NVR local menu, right click and select Menu  Camera  Camera  IP Camera
  • Click on the notepad icon next to a channel we want to add the camera.
  • Change the adding method to Manual.
  • Type in the IP address of the IP Camera activated on the SADP application\
  • Input the password and click “OK”
