Add Guarding Vision Device to CMS/Guarding Vision Lite Windows Application

Add Guarding Vision Device to CMS/Guarding Vision Lite Windows Application










                                 Add and View Guarding Vision device on CMS Lite/Guarding Vision Lite Windows Application














Purpose:

This document provides steps to add and view your devices remotely by using the CMS Lite Application.

Step to take before proceeding:

  • Please Install the CMS Lite from the link below:

https://app.box.com/s/0g82wazo6j7b7cwh6r1wyx8q4d1w34hb

  • Create a guarding vision account


Creating an Account for the application:

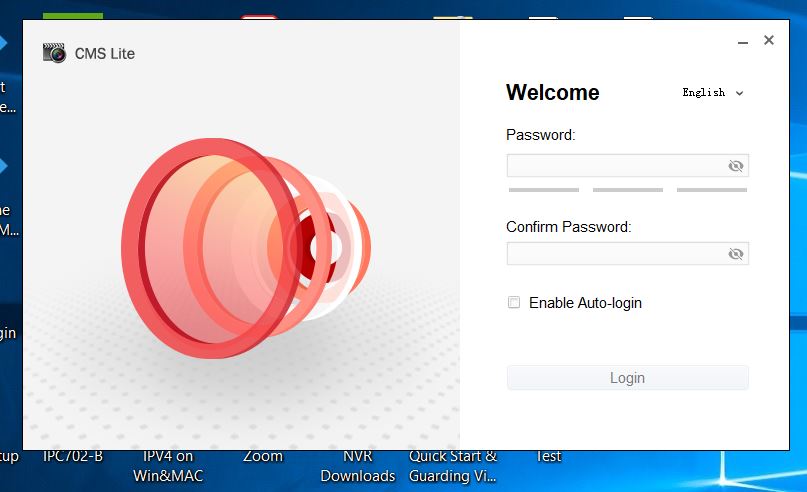

Step 1: When you open the application for the first time you should see the following welcome page.

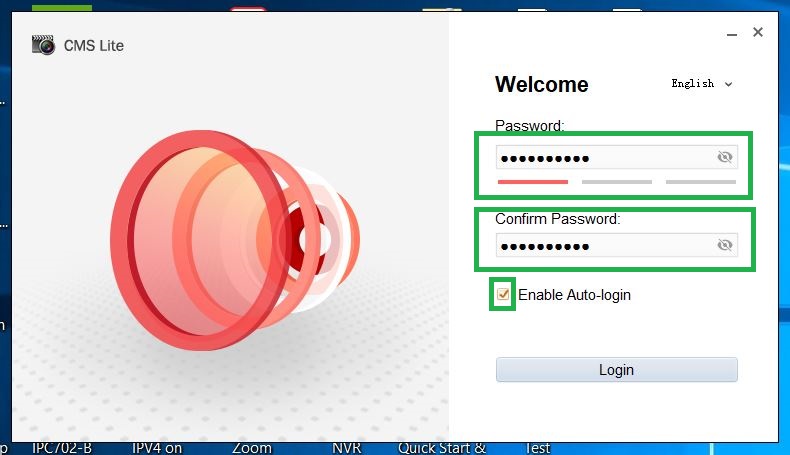

Step 2: Create a password, confirm the password and select ‘Enable Auto-login’ and click ‘Login’ to proceed.














Adding your Guarding vision device into the Application:

Step 1: You should see the following page after you create the password.











Step 2: Select ‘Maintenance and Management’ option on the top right and select ‘+Add’ and proceed to the next step.

(Note: Click on "Online Device" option to add the device over the local network)

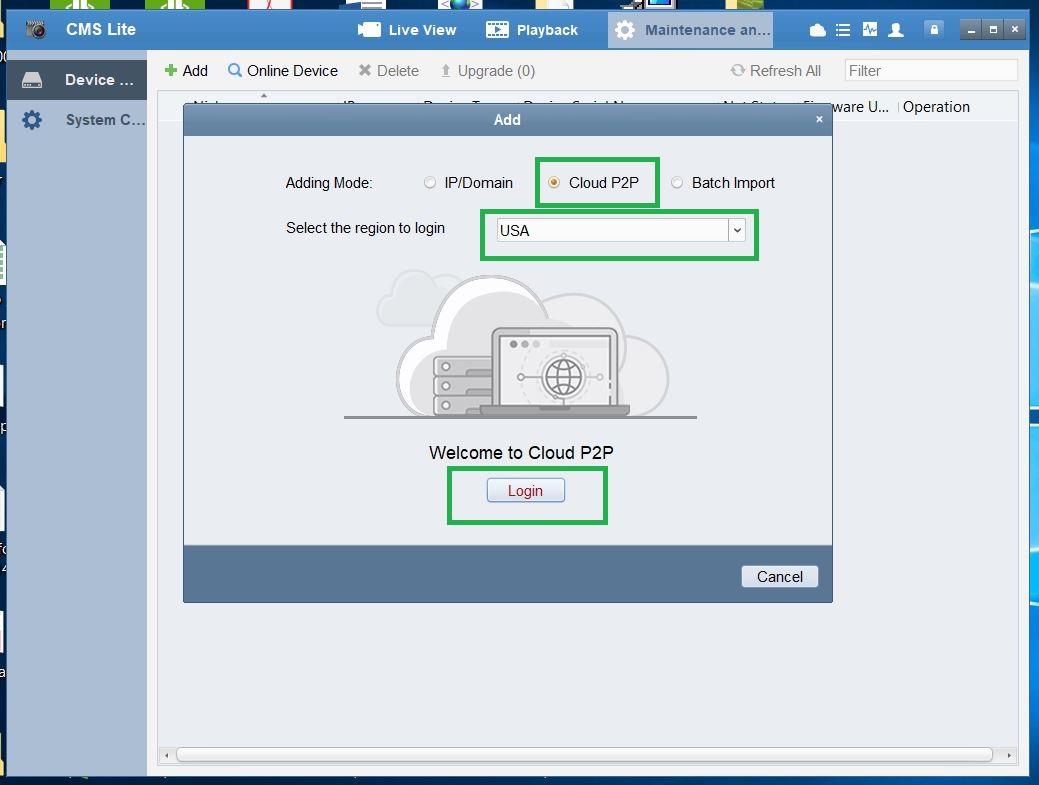

Step 3: Select ‘Cloud P2P’ in the adding method, Select the region to login as ‘USA’ and click ‘Login’ this will open the login page for Guarding vision.











Step 4: Input the Guarding vision Account credentials and click ‘Login’.

(Note: If you do not have a guarding vision account created, Click on ‘Register’ to create a new account)

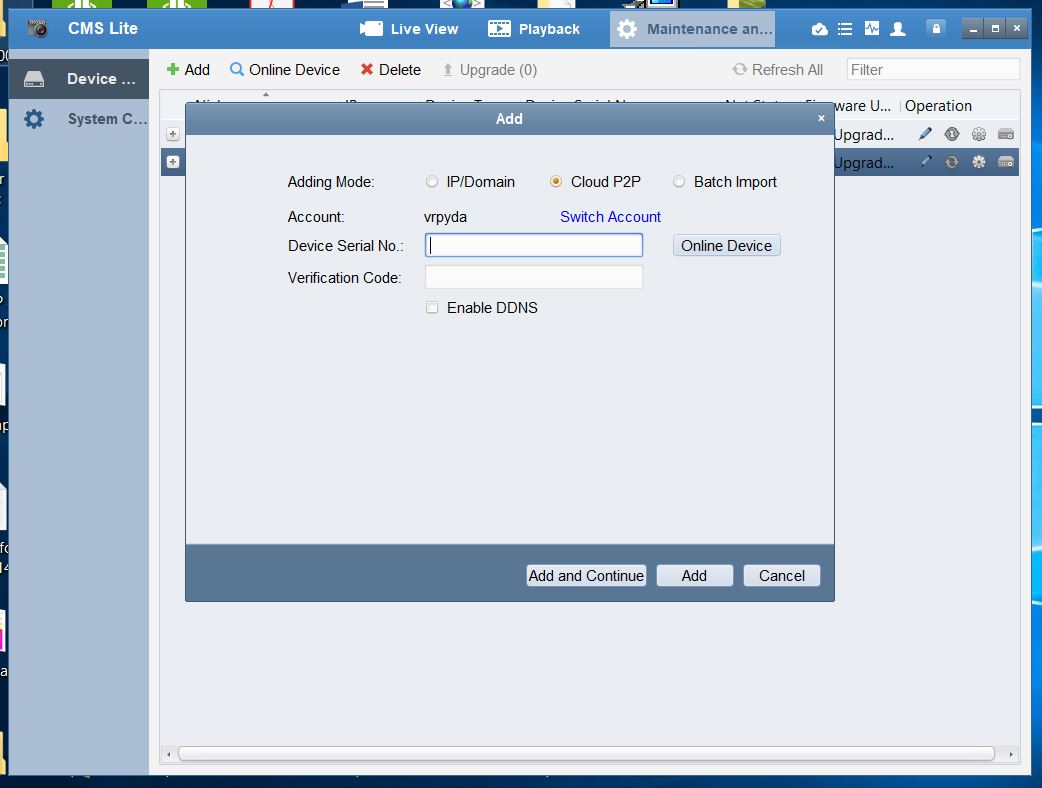

Step 5: Input the last 9 digits of the serial number for ‘Device Serial No’ and ‘Verification Code’ and click ‘Add’. Or close the "Add" window if you already have a device existing your account.

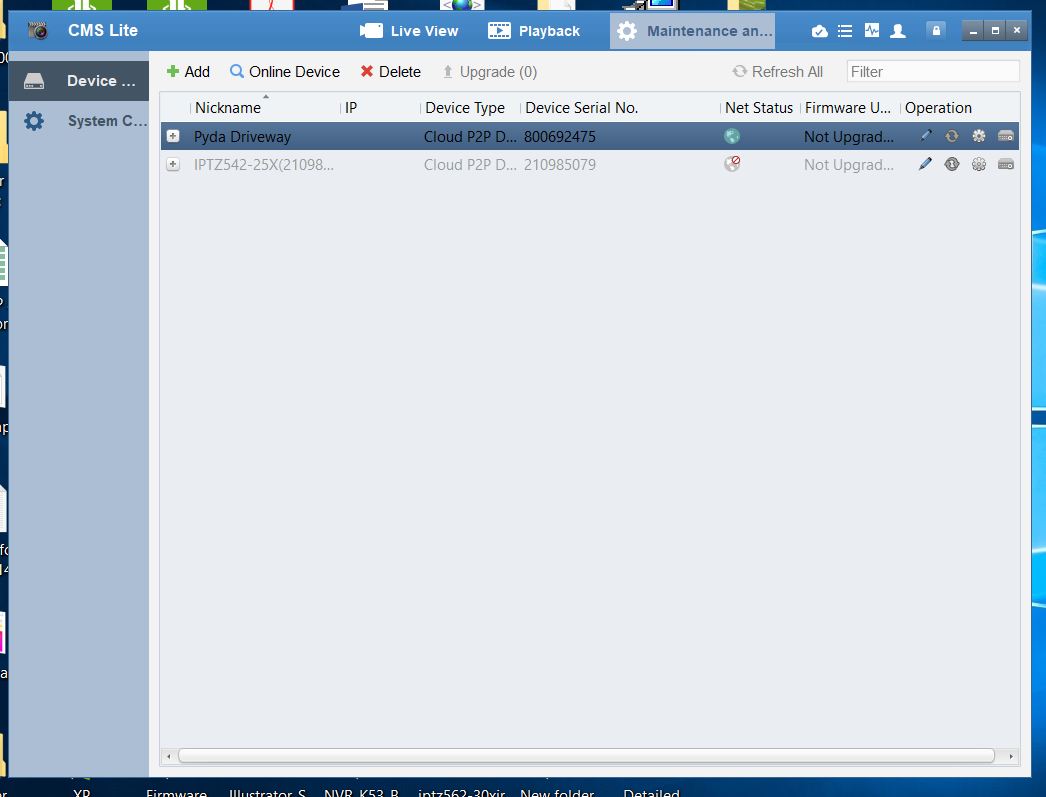

Step 6: You should see your device added into the list












Step 7: Select ‘Live View’. The left pane will show your device listed under ‘Camera’ click on ‘+’ next to your device name to see the cameras connected to your device. You can double click on a desired camera or double click on the device name to start viewing the live video.

You can also select number of cameras you can view at the same time by selecting the options under ‘Default View’



For more support call Hinovision at +1 (469) 444-2999 x 2
