                                   Adding a Stand Alone IP Camera to Guarding Vision App

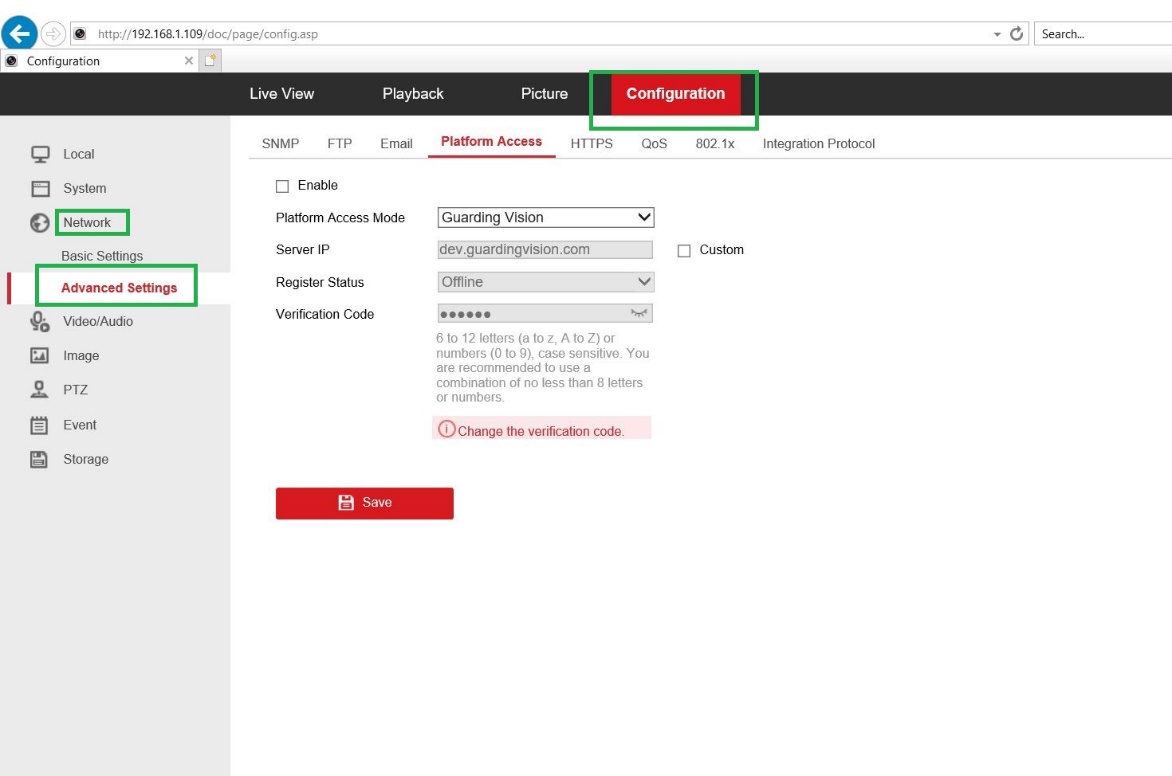

Step 1: Log in to the IP Camera with internet explorer and Go to Configuration  Network  Advanced Settings  Platform Access

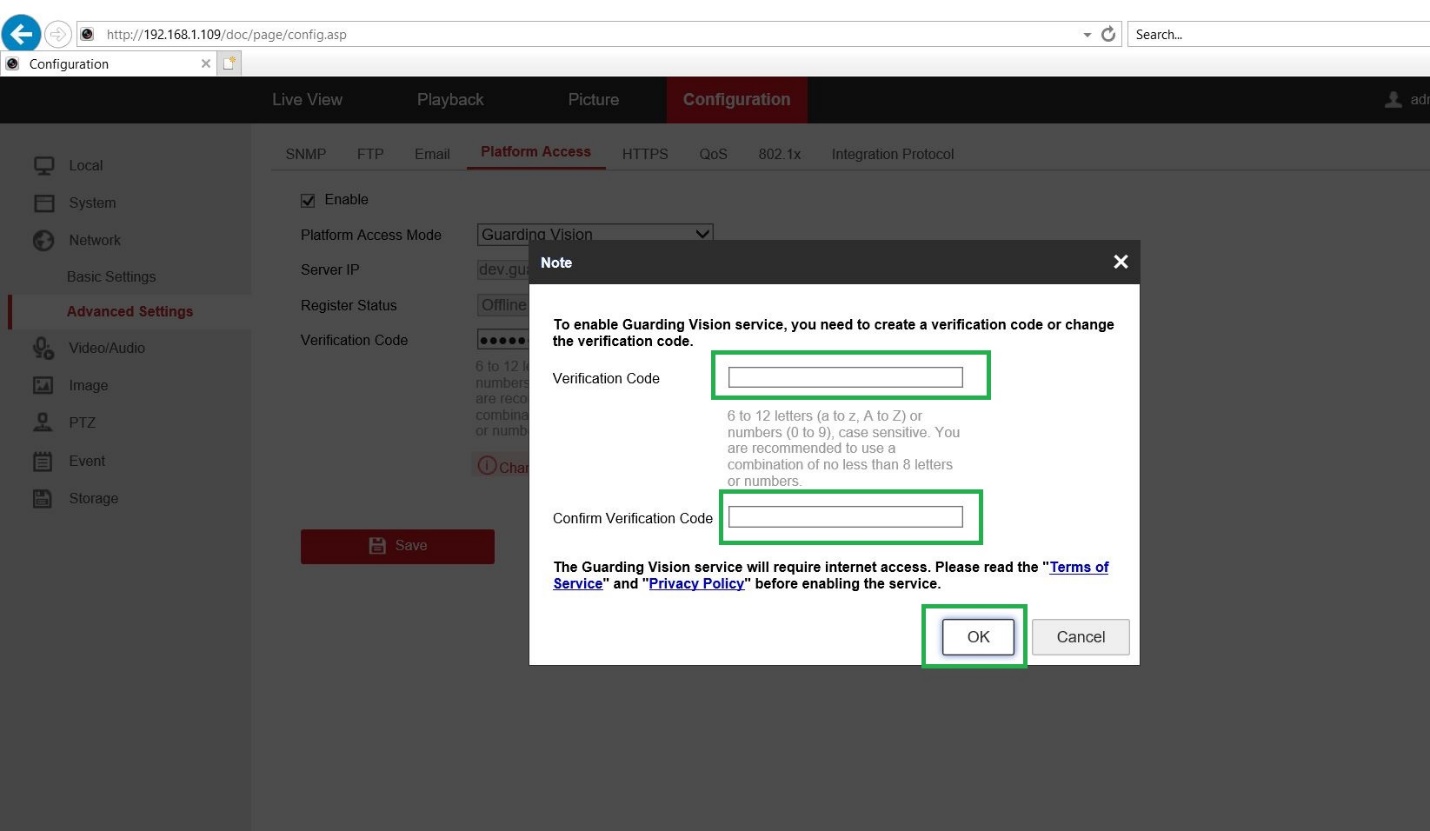

Step 2: Check the “Enable Option” you will see a pop-up window asking to create a verification code. Enter the desired verification code and click “OK”

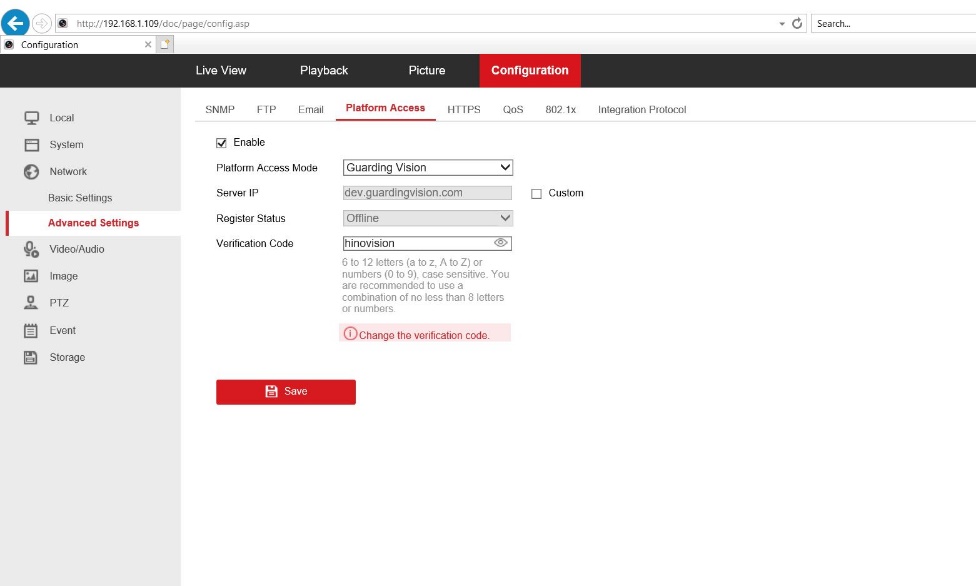

Step 3: You can view the verification code by clicking on the eye lid icon.

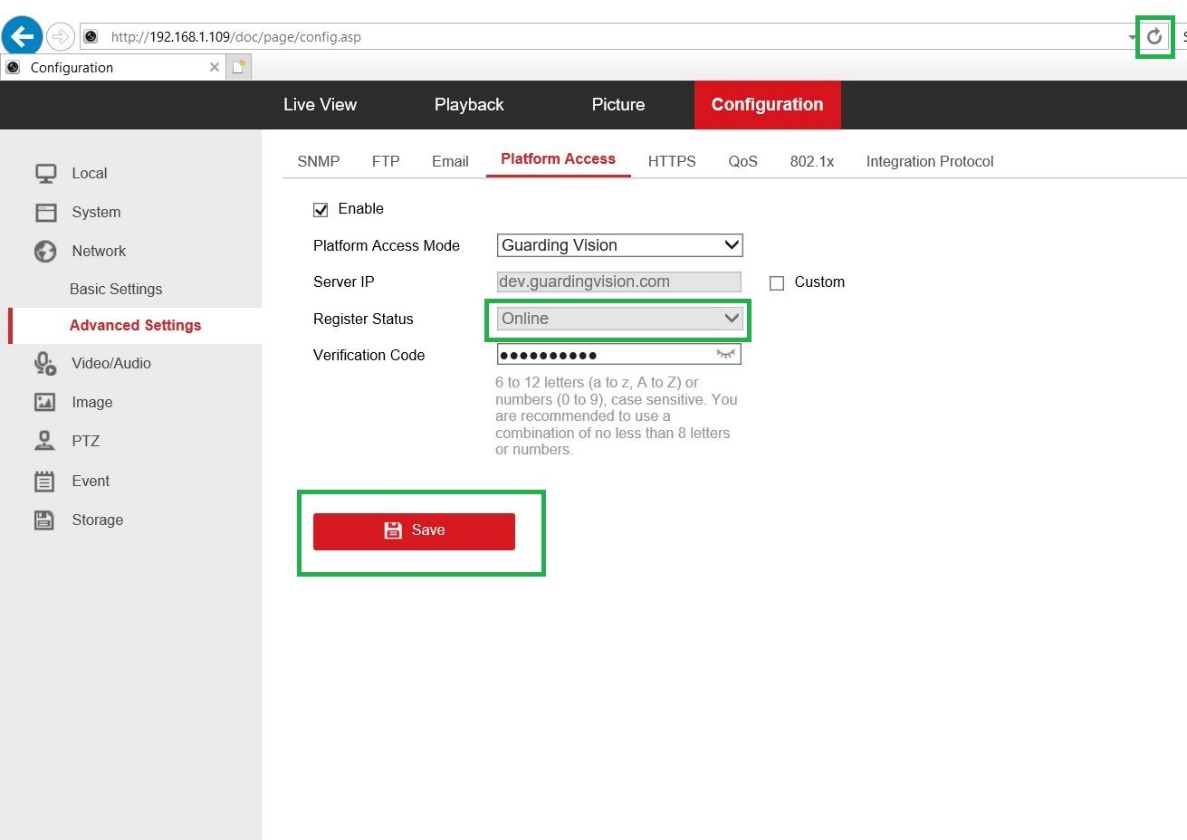

Step 4: Click “Save” and refresh the page. The status should turn from offline to online.

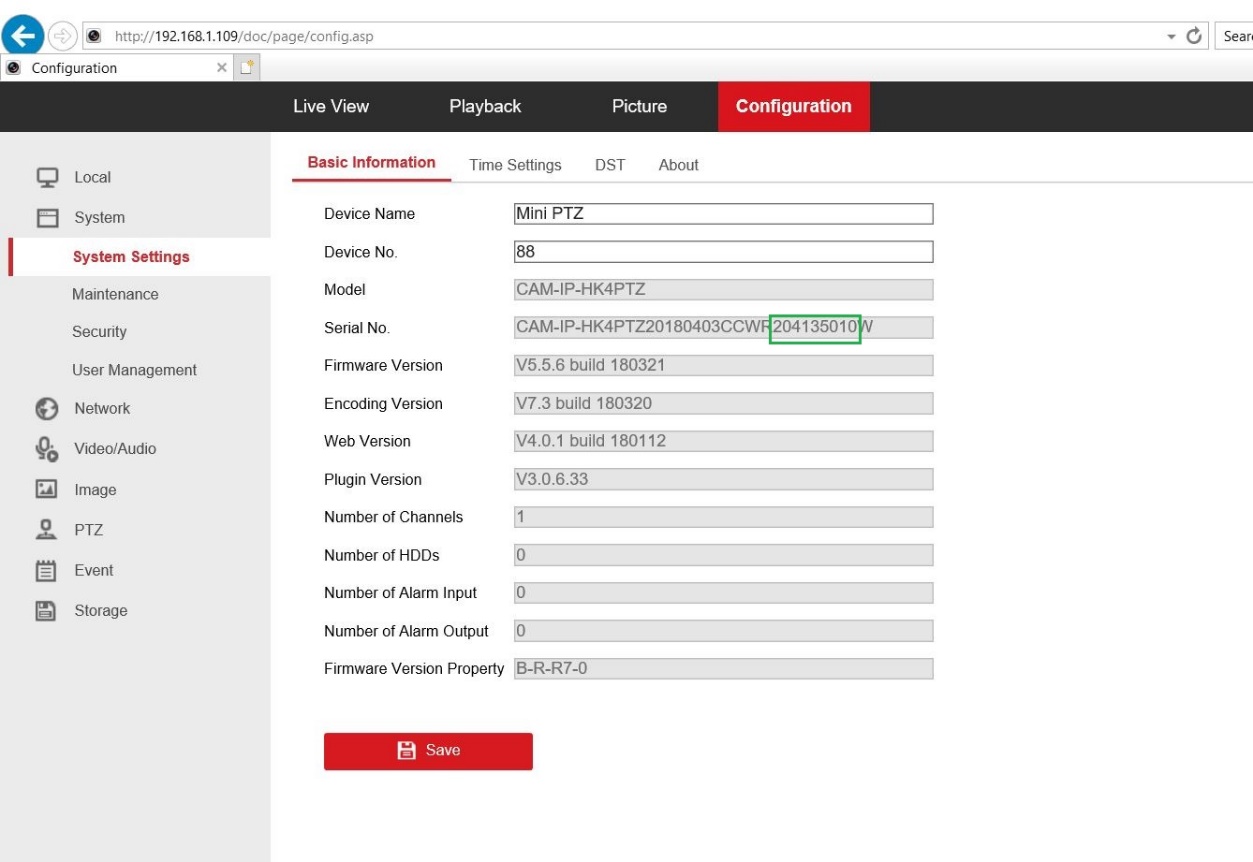

Step 5: Now you can add the device into guarding vision by entering the las 9 digits of the serial number which can be viewed by going in to

Configuration  System  System Settings.

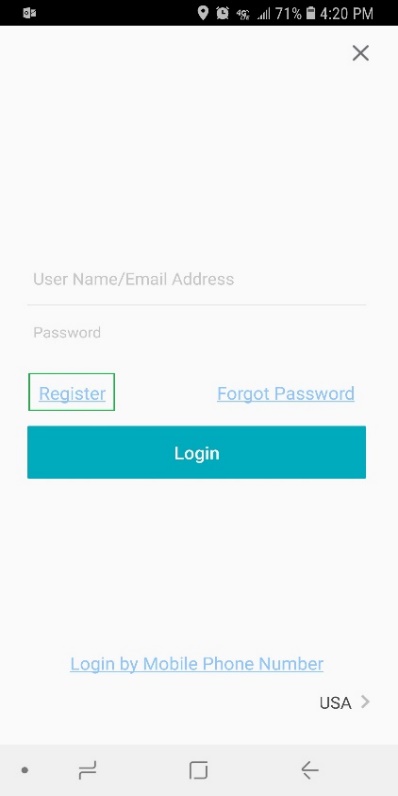

Step 6: Open the guarding vision app on your mobile device and register for a new account.

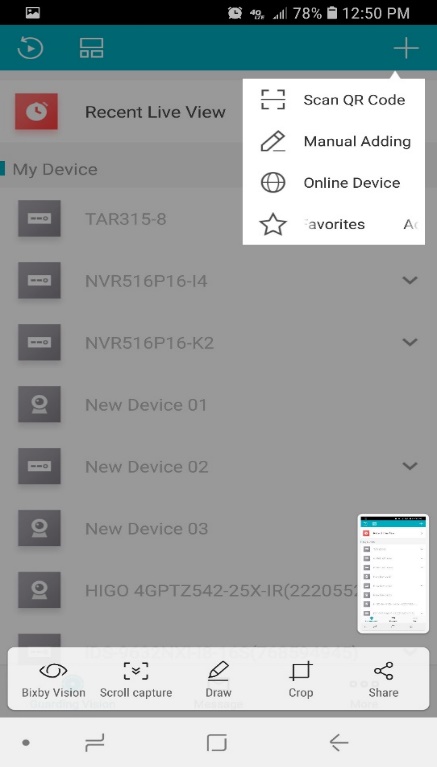

Step 7: Click on the ‘+’ sign on the top right corner of the app and select manual add for serial number or QR code to scan the QR code on the device sticker

(Note: Playback can be viewed on the App for IP Cameras that support Micro SD Card)

                                               www.hinovision.com                                  Office:  469-444-2999
