Hinovision Fisheye Camera Mounting Positions and Display Modes
Hinovision Fisheye Camera
Mounting Positions and Display Modes
Hinovision Fisheye Camera supports multiple mounting position and Display Modes. Fisheye view aside, it also supports Panoramic view and 3 lower resolution PTZ view.
This document will show you how to different mounting positions and viewing angles you can achieve on Hinovision Fisheye Camera.
Test Environment
IPC model: IPC7F6-AF
Firmware Version: V5.4.14 build 160615
- Mounting Positions
The Fisheye Camera supports following 3 mounting positions. You can choose to mount it lens facing up, Lens facing down, or lens facing sideway.
- Display Mode
You can configured it to display one fisheye view, one panoramic view, 4 PTZ view, one fisheye view with 3 PTZ view, one fisheye view with panoramic view and 3 PTZ view.
Each view can be recognized by NVR and recorded separately.

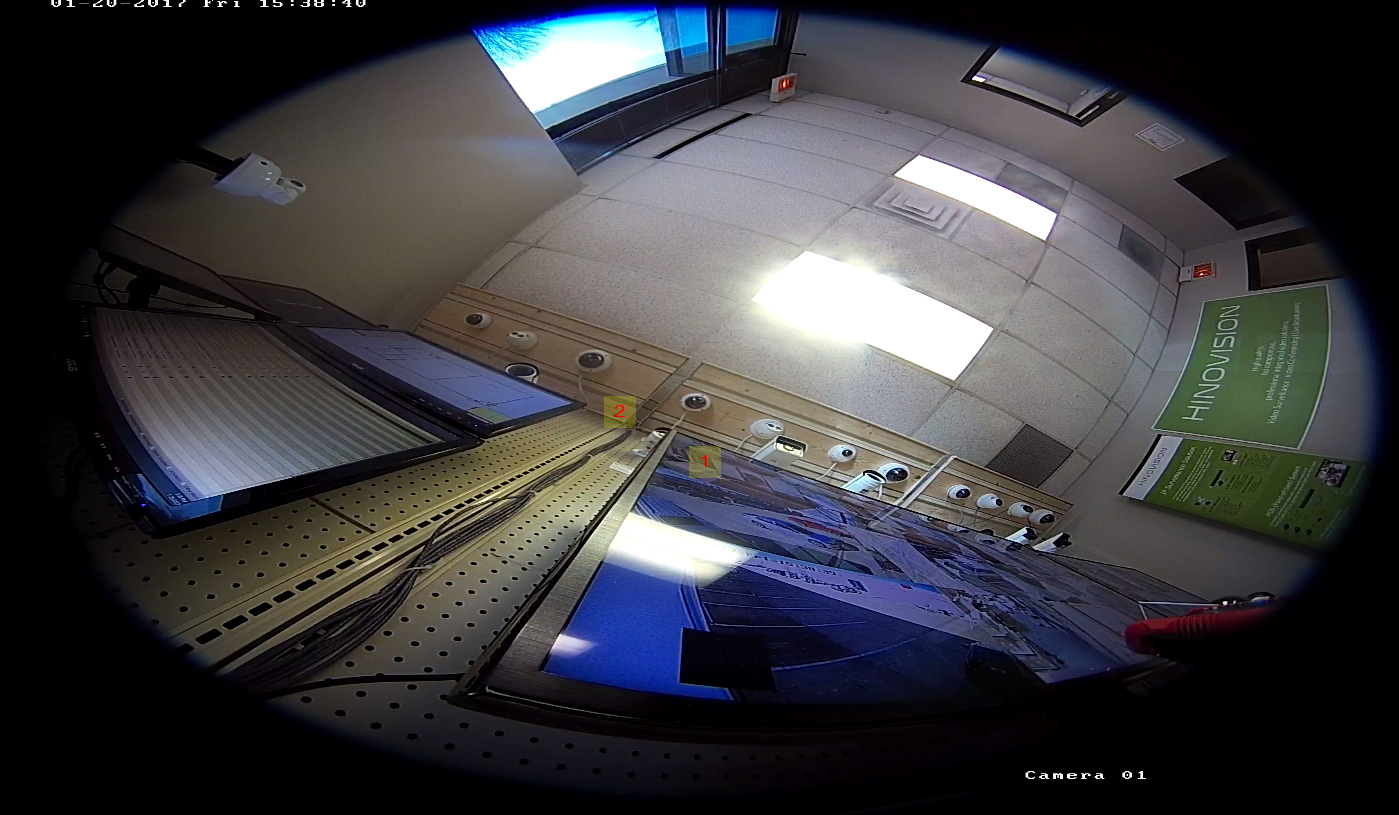

Fisheye view:

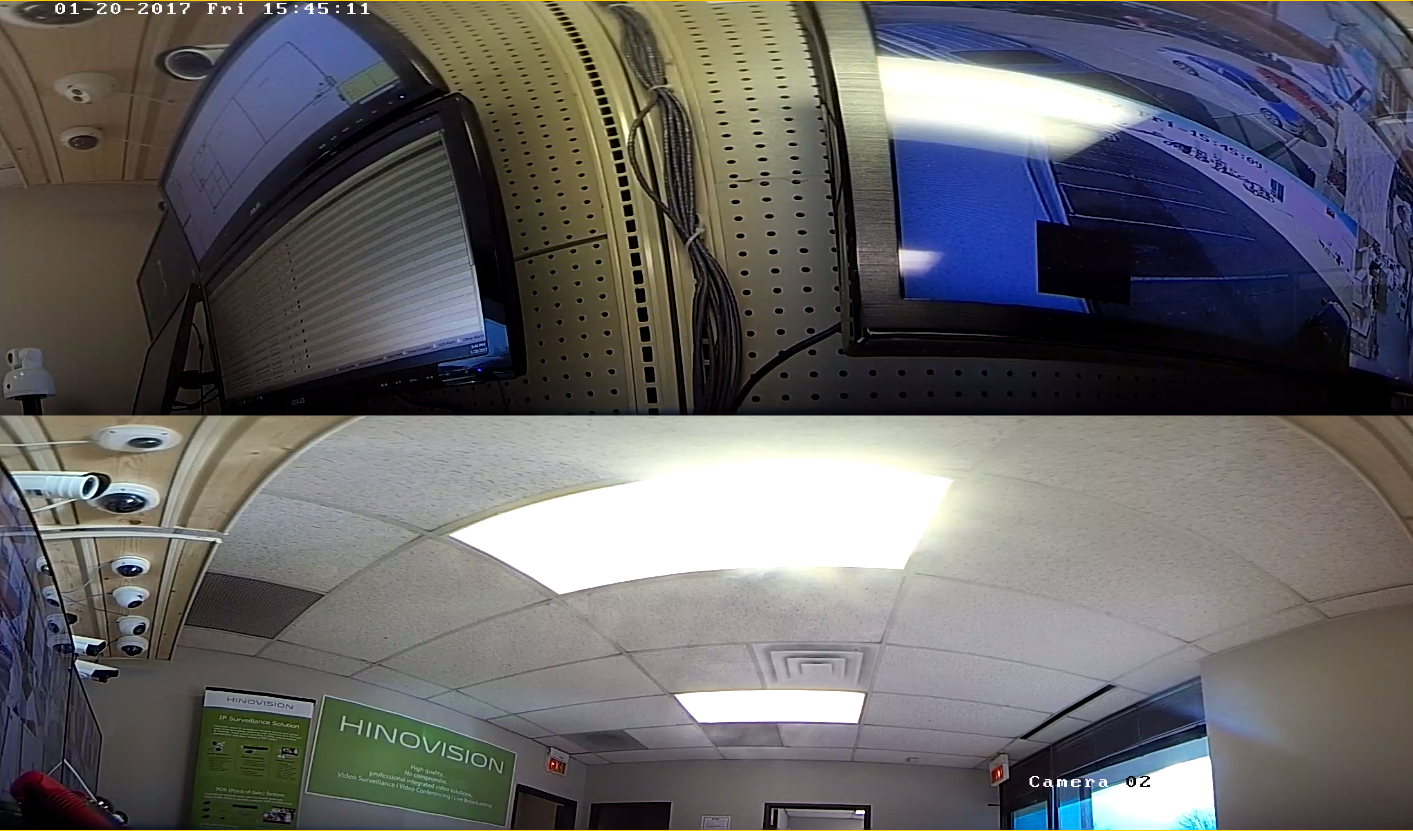

Panoramic view:

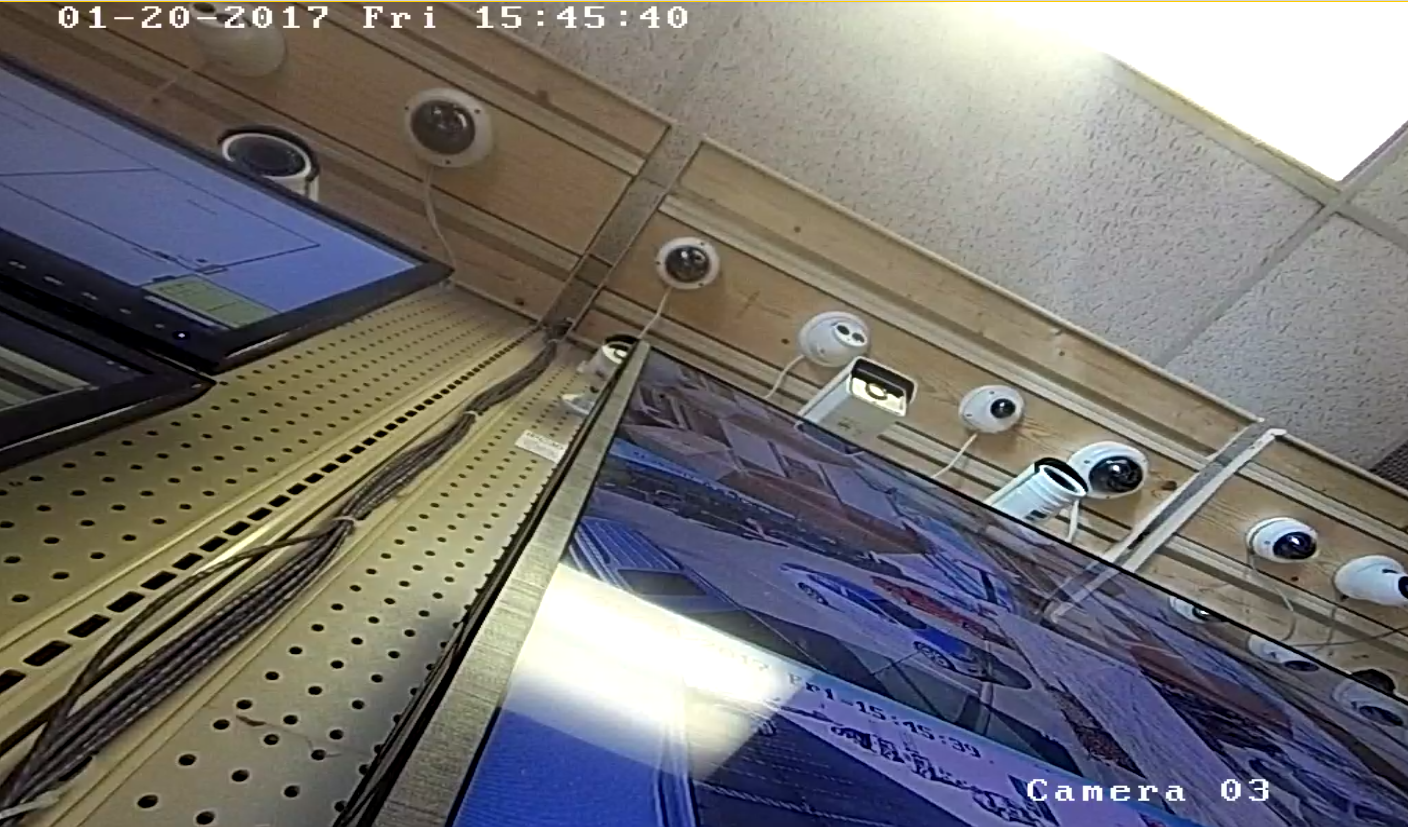

PTZ view:

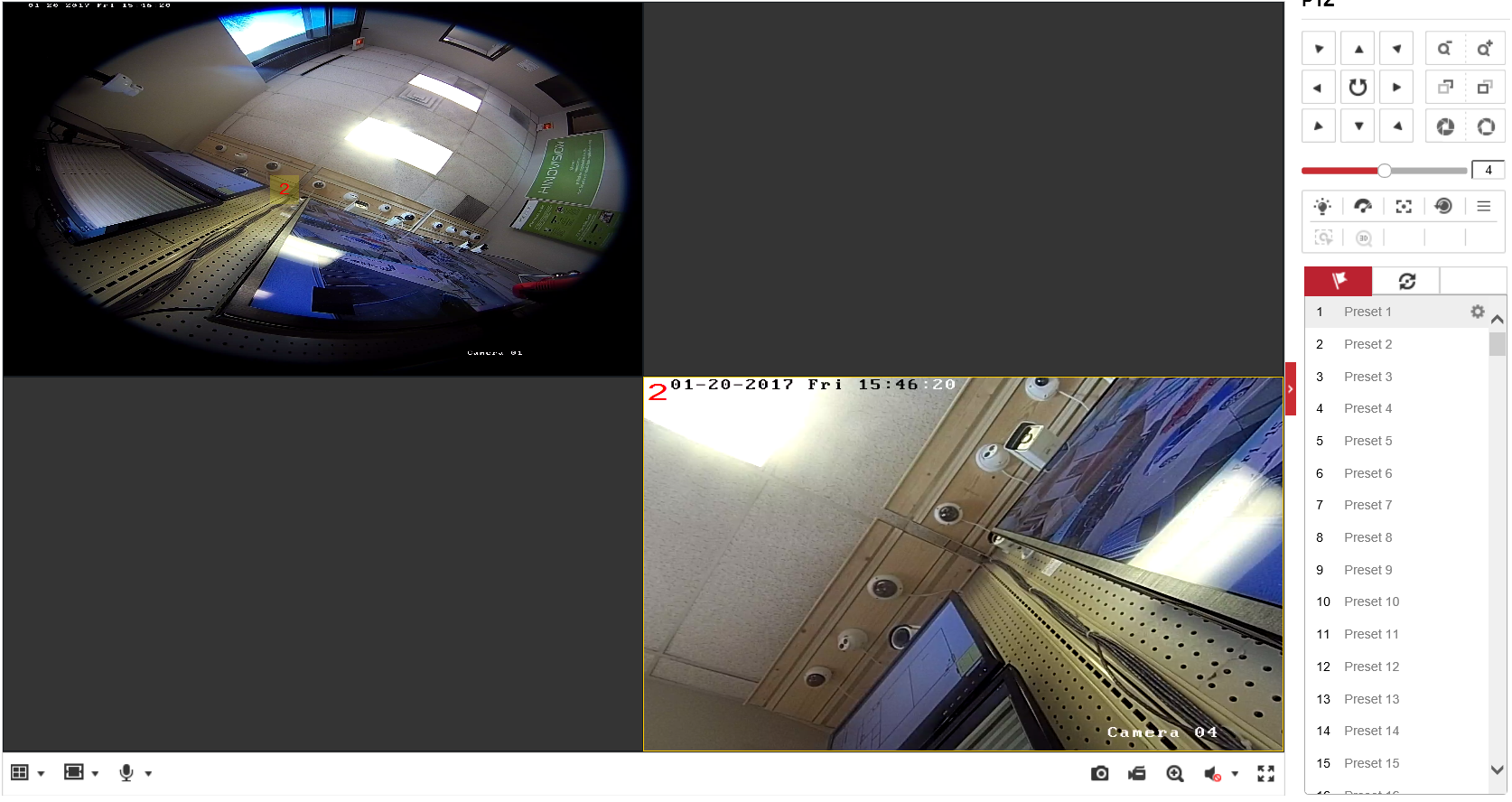

PTZ view is generated from fisheye view, you can control the relative position of PTZ view by using the PTZ control button or click on the main view.
