How to Adjust Recording Frame Rate on NVR
How to Adjust
Recording Frame Rate
on NVR
Ver.1.0
Recording in a low frame rate allows you to use less bandwidth and thus save disk space.
You can adjust frame rate on a NVR from either NVR local screen or from the web interface.
Setup from NVR local screen:

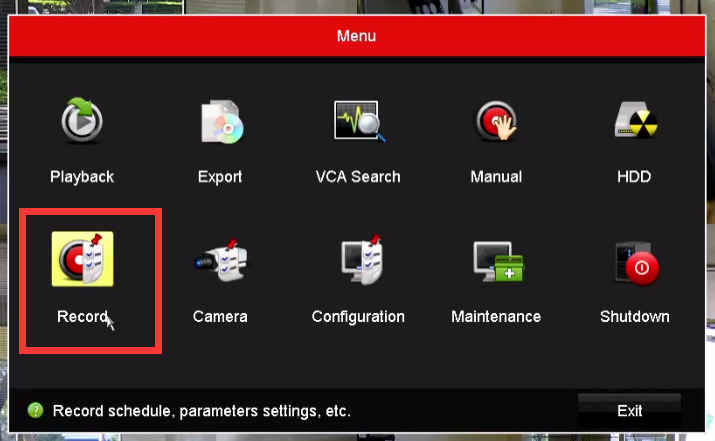

- From the NVR local screen, right click and select menu
- Click on Record
- Click on Parameters, Record, select the camera you want configure, and adjust the frame rate for both. Apply before exit.

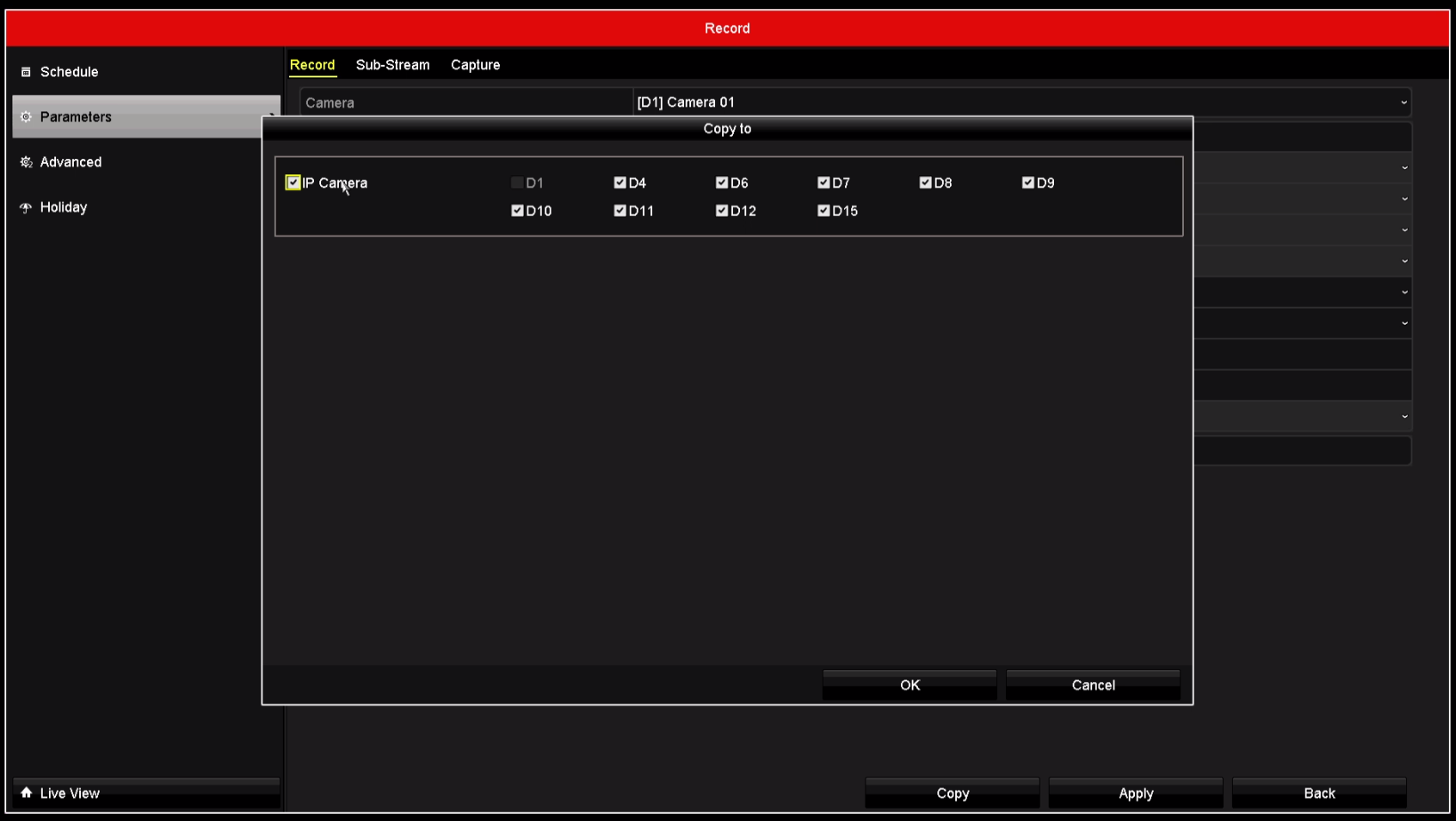

Note: you can apply the current camera configuration to other cameras by click on copy, thus you don’t need to configure each of the cameras.
Setup from Web interface
- Login your NVR with Internet Explorer

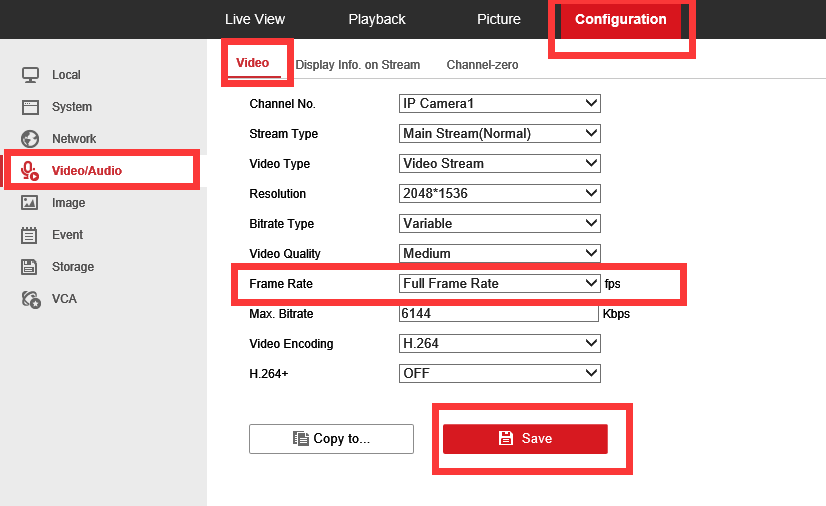

- Go to Configuration, then Video/Audio, Video, you can adjust Frame Rate under Frame Rate.
Do the Same for Main Stream (Event).
Save before exit.

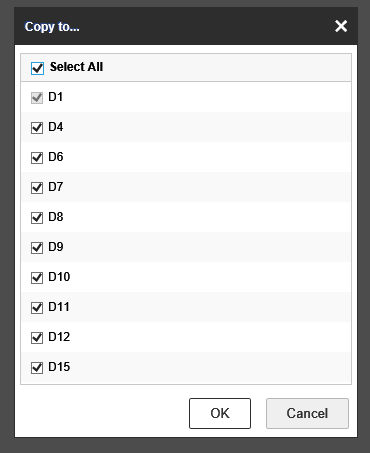

Note: you can apply the current camera configuration to other cameras by click on copy to, thus you don’t need to configure each of the cameras.
