How to change Hinovision LiveTracker2

Video Standard between 50Hz and 60Hz

Hinovision Technical Team

Ver.1.1


Hinovision LiveTracker2 supports refresh rate of both 50Hz and 60Hz.Please see the following instruction to change between 50/60Hz.

Test Environment

Camera Model: LiveTracker 2

Camera Firmware: V5.3.0 build 160809

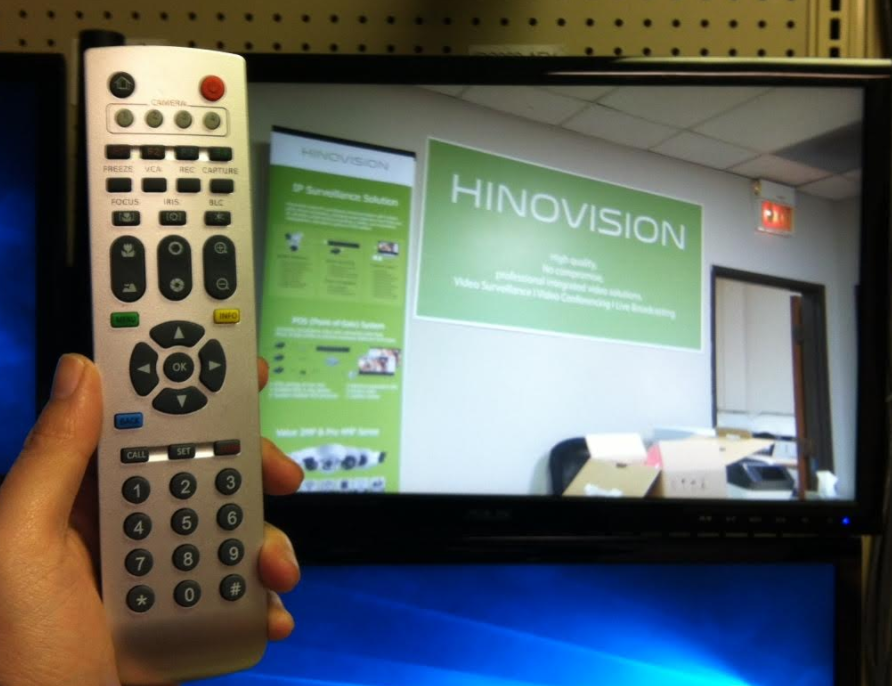

1. Find the remote come with the LiveTracker2





2. Press the Menu button in Green to access the Menu

  Note: the IR receiver is at the front of LiveTracker2





3. Navigate to Video Settings with arrow key on the remote, then press OK on the remote

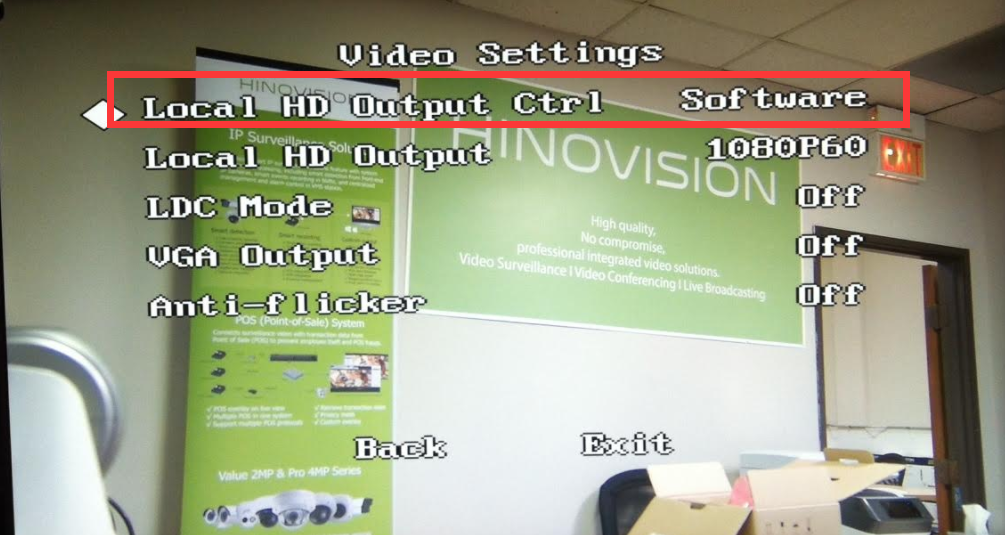

4. Change Local HD Output Ctrl to Software

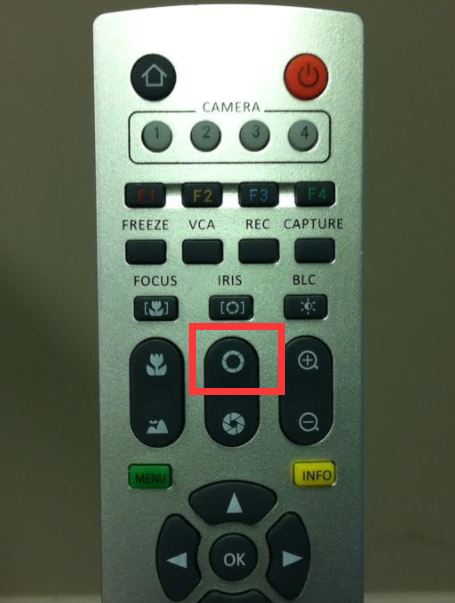

5. Press Iris+ on the remote to comfirm



Note: If you want to enable third-stream on this device, Please set  Local HD Output Ctrl to Software and Local HD Output to OFF

Third-Stream on this device currently supports 1920*1080 P30 output.

You will find Third-Stream appear in the web interface after the configuration.


  1. Login from Web interface

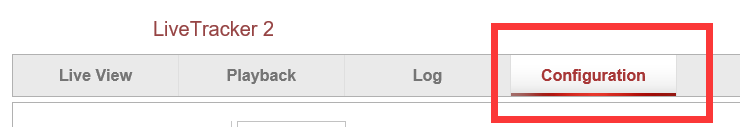

  2. Click on Configuration on the top

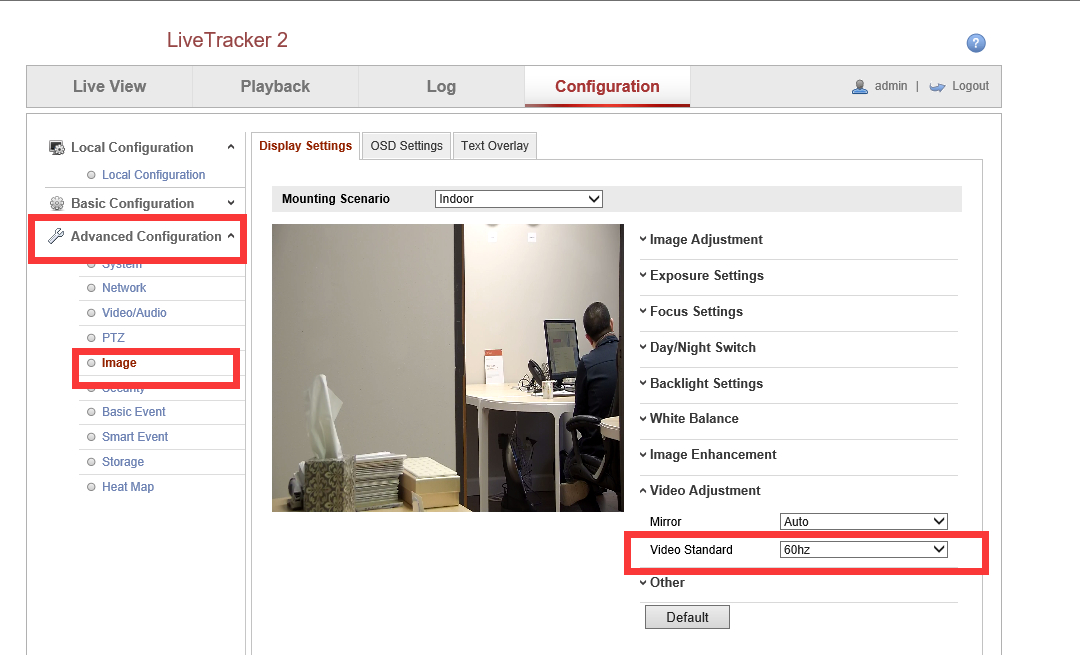

  1. Click on Advanced Configuration, then click Image, and then change Video Standard to 60Hz.





Alternative Solution:


You can change the DIP switch on the bottom of the device and switch between 50/60Hz.




It is recommended to use the software setting.
