How to configure DDNS on Hinovision NVR

How to configure DDNS on Hinovision NVR










How to Configure SimpleDDNS on

Hinovision NVR?


Hinovision Technical Team

Ver.1.0


Hinovision NVR supports multiple popular DDNS such as DynDNS and No-IP, in addition it also supports SimpleDDNS which provides exclusive free service for Hinovision products.


Once the DDNS is configured on Hinovision NVR, you will be able to access the NVR directly from Internet instead of from Local Area Network. This provides the possibility for remote access anywhere in the world.


Instead of using a private IP address (192.168.x.x, 10.x.x.x) or Public IP address (which is quite expensive), you can use URL and domain name. And SimpleDDNS service is provided free of charge.


NVR DDNS configuration can be accessed through NVR Screen, Web Interface or Hinovision iVMS-Pro/Lite client software.


Test Environment

NVR Model: NVR516P16-I4

NVR Firmware: V3.4.82 build 161207


Router Model: RT-AC1900

Router Firmware:  V3.0.0.4.380_4164


  1. Configure the port forwarding/DMZ settings on the router, mapping the port for the NVR or put the NVR IP address in the DMZ zone. Router configuration differs from router to router, in this demonstration we will use RT-AC1900 from Asus.


Note:

Currently most Hinovision NVR uses following 3 ports:

80(HTTP port), 8000 (control information), 554 (RTSP port)

Ports 80, 8000, 554 can be modified in the web configuration.


  1. Click on Yes for Enable DMZ option
  2. Enter the IP address of IP camera you wish to map
  3. Click on Apply, wait  for the router to finish configuration






  1. Go to SimpleDDNS website and register an Account

http://www.simpleddns.com/



  1. Go to NVR web interface, Click on configuration, then click Network – Basic Settings, then click on DDNS.

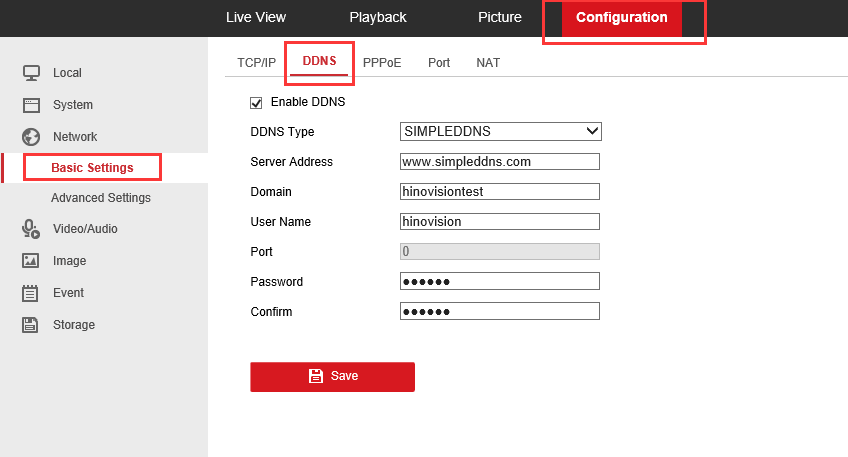

  1. Configure the DDNS settings



  1. Choose SIMPLEDDNS for DDNS Type
  2. www.simpleddns.com will automatically populate in the Server Address field
  3. Enter a unique domain name. If you are not sure about the domain name, you can visit www.simpleddns.com to see if you domain name is available.
  4. Enter your username and password for www.simpleddns.com
  5. Click on Save


  1. (Optional) Add your device on www.simpleddns.com

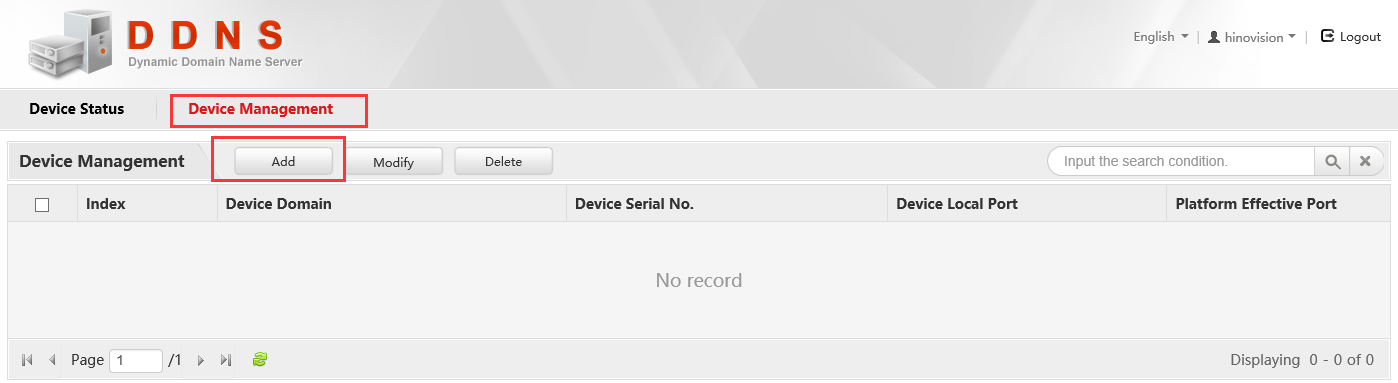

  1. Click on Device Management, then Click on Add.

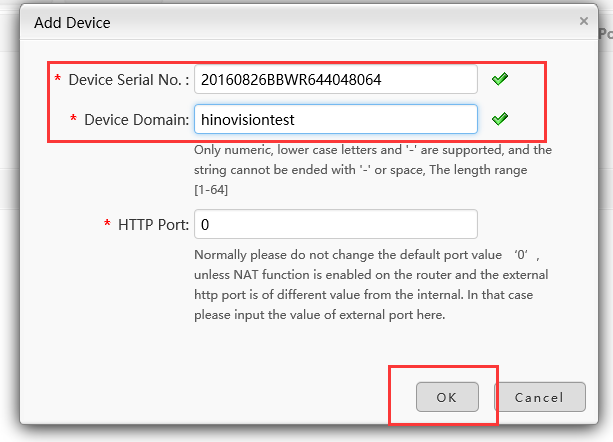

  1. Enter Device Serial Number and Domain Name of your choice, Click on OK to save.

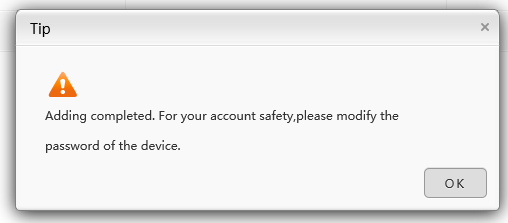

  1. You will receive the following notification if successful




  1. Verify the setting by visit [YourDomainName].simpleddns.com.

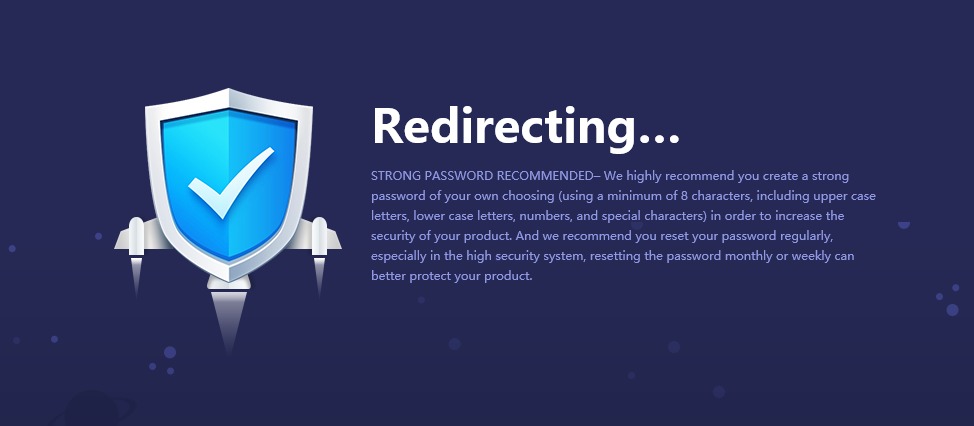

If the settings are correct, you will see the following image

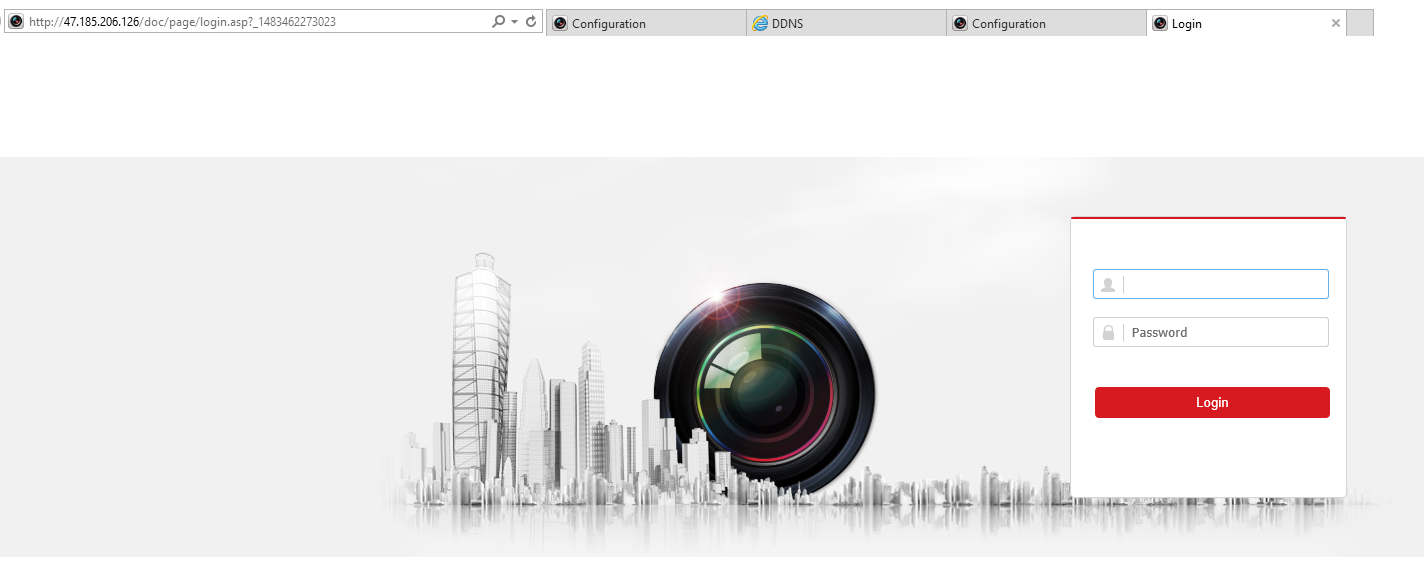

Then you will be redirect to the IPC login interface, the URL will start with your Public IP address.
