POE-EXT3001LP UltraReach PoE Extender

Overview

POE-EXT3001LP is one port UltraReach PoE extender for both indoor and outdoor applications, featuring 2600ft (or 800 meters) super long distance PoE power and data transmission.

Features

• PoE EXTENDER - Extend extra 330ft or 100m POE + Ethernet network at 100Mbps bandwidth when using one of the PoE Extenders.
• UP TO 2600ft SUPER LONG PoE TRANSMISSION DISTANCE - Two POE-EXT3001LP will automatically be in Paired Mode when two INPUT Ports (Green) are connected directly. In Paired Mode, the max. PoE transmission distance is 2600ft or 800 meters (bandwidth will be lowered to 10Mbps after 1960ft or 600 meters).
• OUTDOOR RATED - IP67 waterproof standard, wide temperature range -10°C ~50°C (14°F～12°F), designed for harsh outdoor environments.
• COMPLIANT WITH IEEE802.3AF/AT STANDARD - Working with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. Supports connecting IEEE802.3af/at POE devices and non-POE devices.
• EASY TO USE - Plug-n-Play, no configuration is required


Applications

It is used to extend PoE transmission over 330ft or 2600ft (in paired mode). It is compatible to all standard IEEE802.3af/at/bt PoE devices.

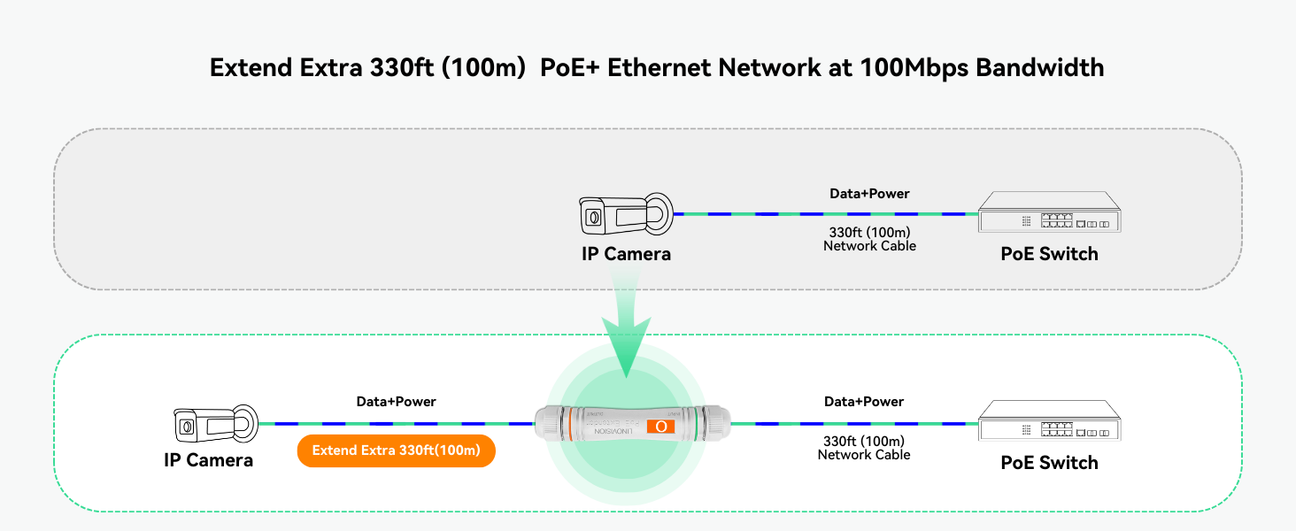

Application 1: Extend extra 330ft (100 meters) PoE+ ethernet network at 100Mbps.

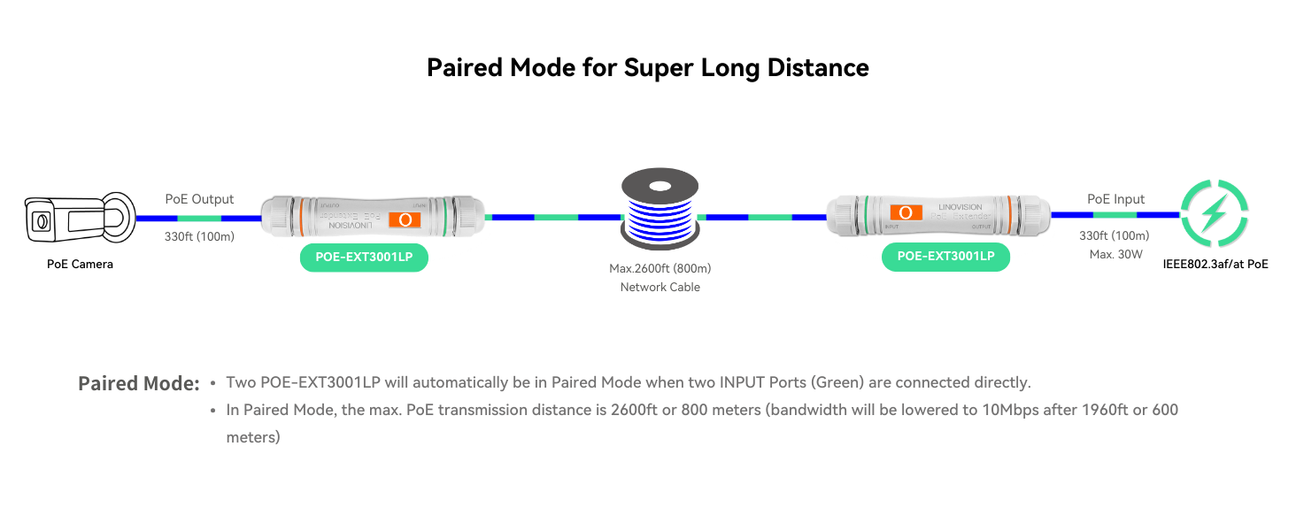

Application 2 In paired mode, it can transmit PoE power and data over up to 2600ft or 800 meters.

Note: Two INPUT port (Green ring port) should be attached together.

Important Notification

This  PoE Extender is only compatible with PoE PD (Powered Device) and must be used with Ethernet cable only.

Data Sheet

Model	POE-EXT3001LP
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at
Port	2*10/100Mbps RJ45 ports
Network Medium	10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤100 meters) 100BASE-TX: Category 5 and above unshielded twisted pair (≤100 meters)
Power Supply	PoE power supply/pass-through
PD Port Input	IEEE802.3af/at
PoE Port Output	IEEE802.3af/at
RJ45 PoE Power Receiving	Data Pairs 1/2（+）3/6（-）,4/5（+）7/8（-）
Dimension	6.16"x1.14"x1.14" (156.5*29*29mm)
Operating Temperature	14°F～131°F（-10°C ~55°C）
Storage Temperature	-40°F~158°F (-40°C ~ 70°C)
Working Humidity	10%~90%
Storage Humidity	5%~90%
Waterproof Level	IP67

Comparison between Linovision PoE Extenders

	Learn more >		Learn more >	Learn more >	Learn more >	Learn more >
Model	POE-EXT3001GP	POE-EXT3001LP(2 Pack)	POE-EXT6002GP	POE-Extender02	POE-EXT04	POE-EXT9004G
PoE Input	Max 30W	Max 30W	Max 90W	Max 30W	Max 90W	Max 90W
PoE Output	1 x 30W	1 x 30W	1 x 60W + 1 x 30W	1 x 16W + 1 x 8W	4 x 30W	4 x 90W
PoE Standard	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt
PoE Budget	30W	30W	90W	30W	80W	75W
Extend Extra Transmission Distance	Max.1000ft (2 pack)	Max.2930ft (2 pack)	Max.330ft (1 pack)	Max.660ft (2 pack)	Max.330ft (1 pack)	Max.820ft (1 pack)
Ethernet Speed	Gigabit	10/100Mbps	Gigabit	10/100Mbps	Gigabit	10/100/1000Mbps
Waterproof	✔	✔	✔	/	/	/
Installation Method	/	/	Wall-Mount	DIN-Rail/Wall-Mount	/	DIN-Rail/Wall-Mount
