POE-SW503GDF

POE-SW503GDF

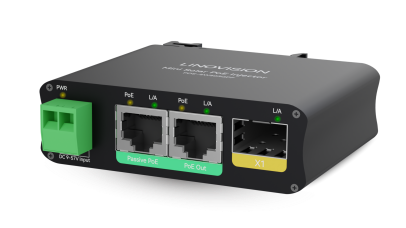

Overview

The POE-SW503GDF is a compact industrial Gigabit PoE switch with wide 9–57 V DC input and built-in voltage booster. It provides one IEEE 802.3af/at PoE+ port, one passive 24 V PoE port, and one Gigabit SFP uplink. With its rugged aluminum housing and DIN-rail design, it ensures reliable power and data for IP cameras and IoT devices in solar or remote installations.

Datasheet

POE-SW503GDF

Mini Solar PoE Switch


Outstanding Features


Core Functionality
  1. DC 9–57V wide voltage input with built-in voltage booster, compatible with DC 12V / 24V solar battery systems.
  2. 1× IEEE802.3af/at PoE+ port (up to 30W) and 1× Passive 24V PoE port for flexible power options.
  3. SFP port supports Gigabit connectivity; can be converted to RJ45 via SFP-GE-RJ45 module.
  4. Full Gigabit switching with 10/100/1000 Mbps auto-negotiation on all ports.
Industrial-Grade Design​
  1. Rugged full-metal enclosure with DIN-rail mounting support.
  2. Compact size: 83 × 63 × 25.8 mm (3.27 × 2.48 × 1.02 in).
  3. Wide operating temperature range for harsh environments.
Applications & Benefits
  1. Designed for solar-powered surveillance, RV networks, farm security, and remote monitoring applications.
  2. Powers wireless bridges, IP cameras, and other PoE or passive PoE devices without extra injectors.
  3. Ideal for space-constrained installations such as solar control boxes and outdoor enclosures.

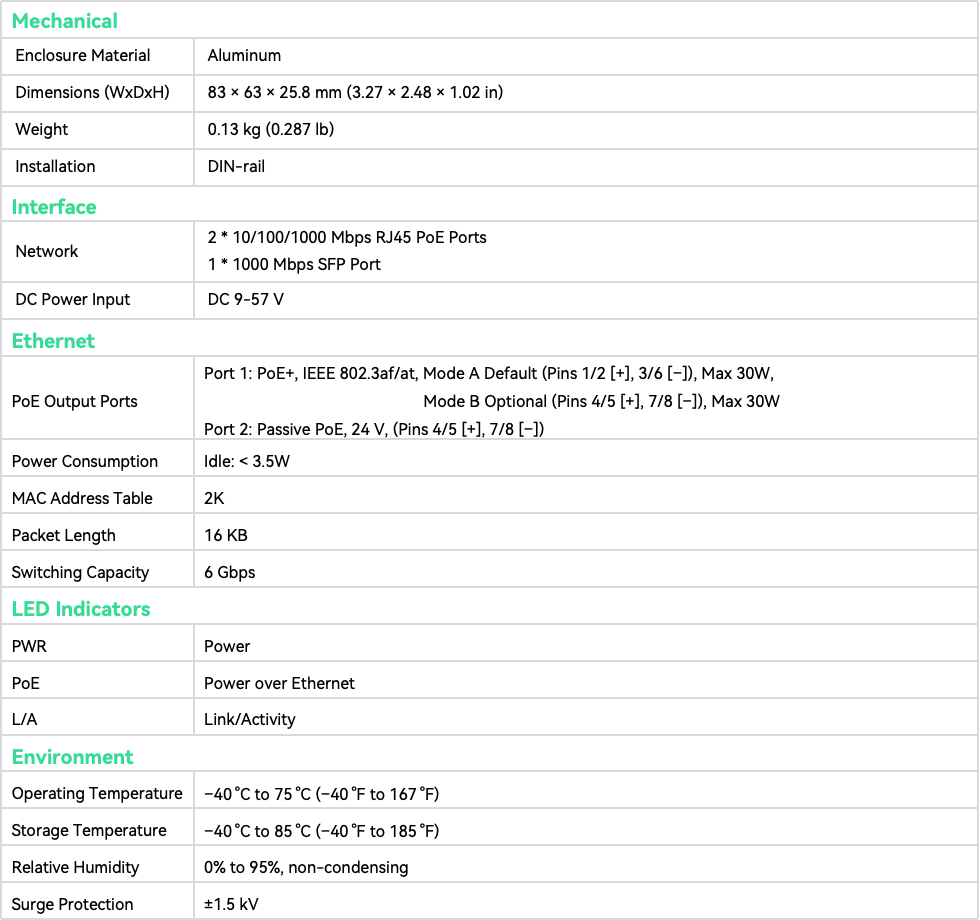

Specifications



Interface

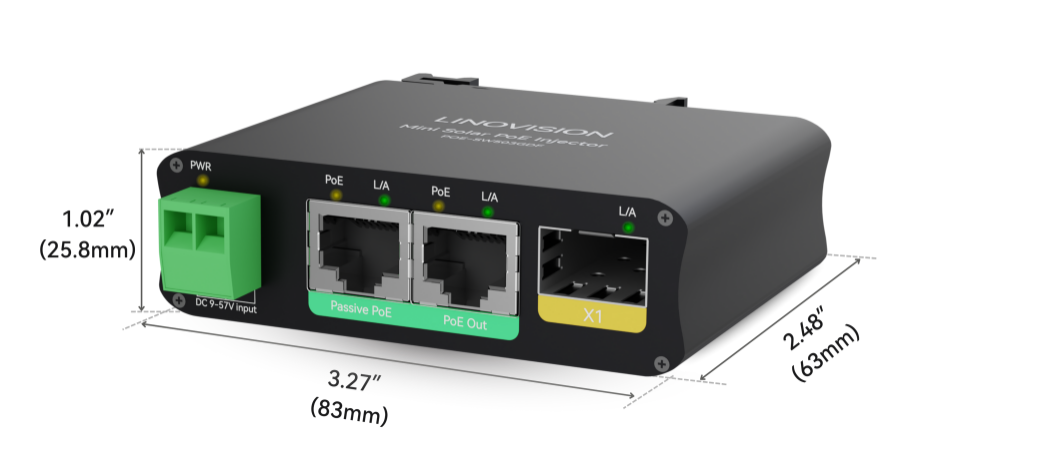

Dimension

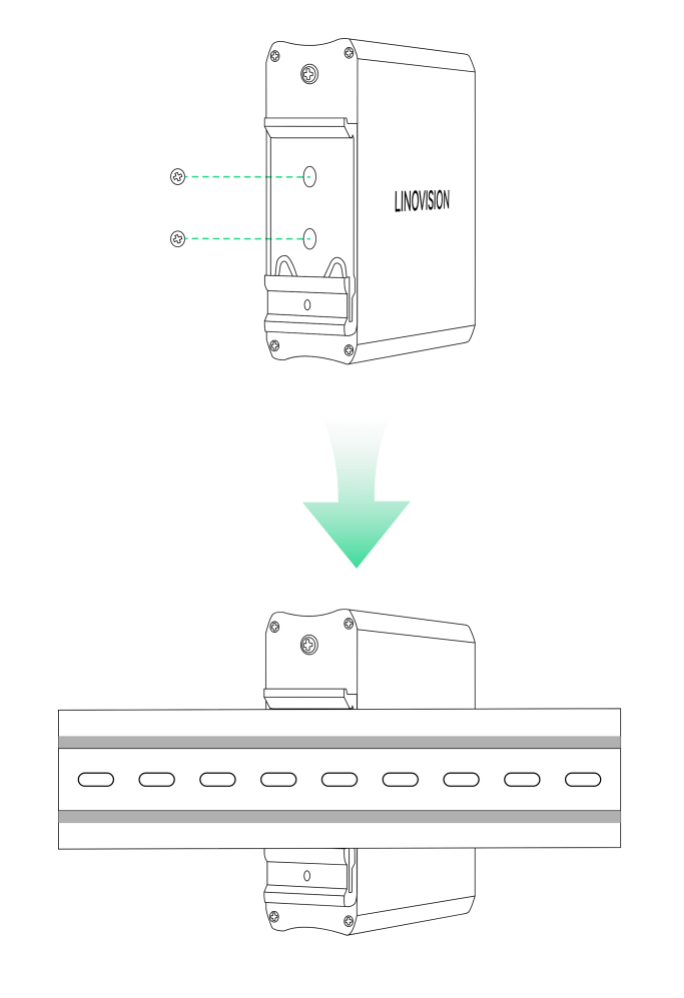

Installation

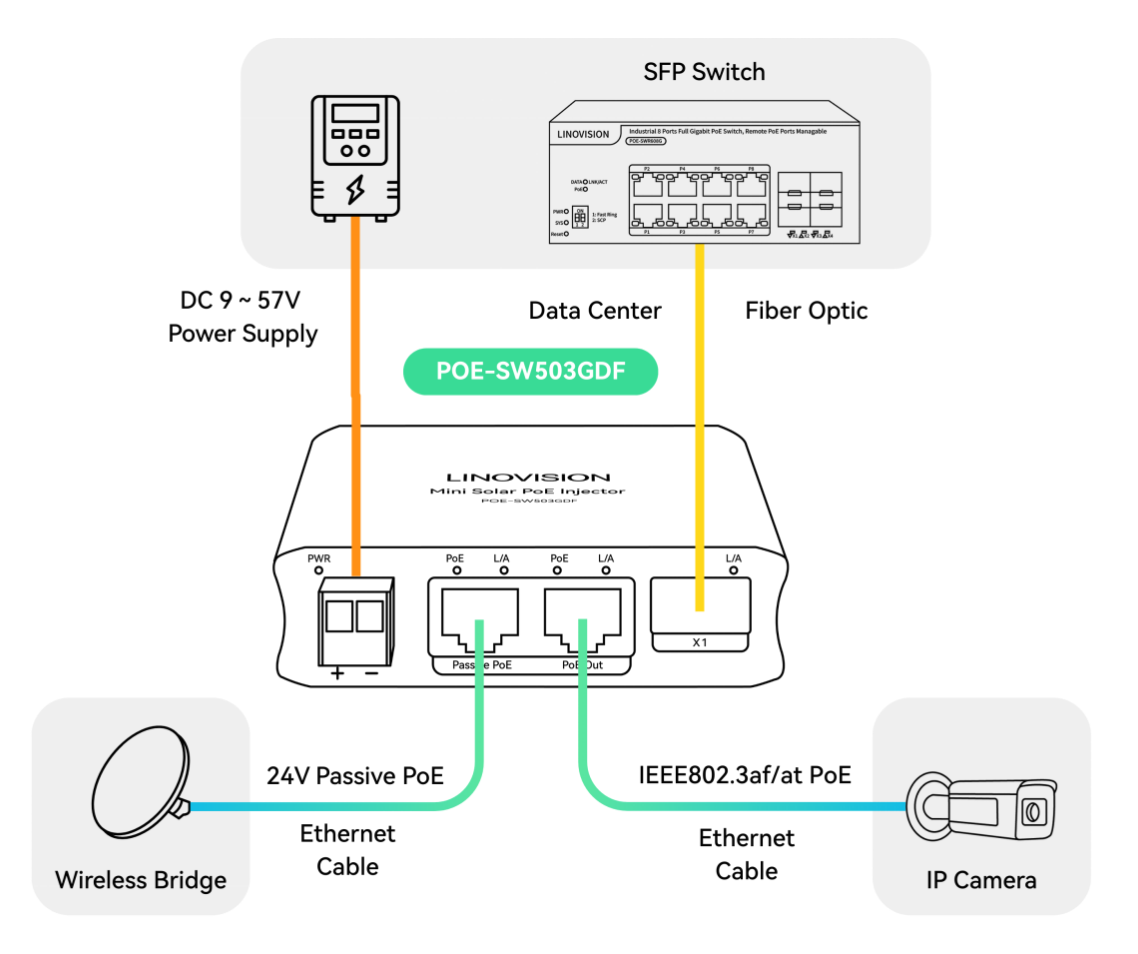

Connection Diagram

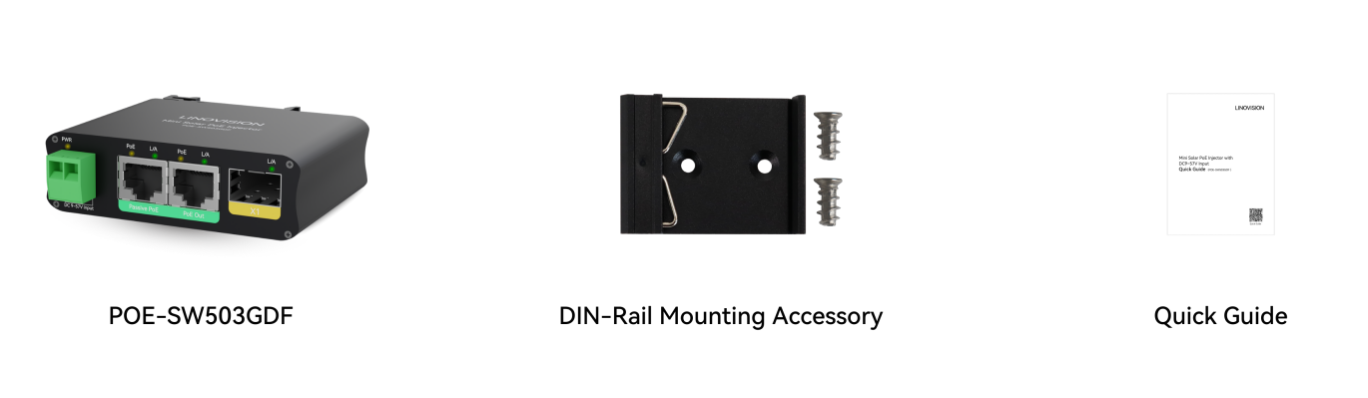

Package Contents
