POE-Switch0504GD

POE-Switch0504GD

Datasheet

POE-Switch0504GD is a 5 Ports DC9-54V Input Full Gigabit POE Switch with Voltage Booster.

Features

  • DC9V-54V POE SWITCH - Support DC9V-54V input and standard IEEE802.3af/at POE output with built-in voltage booster.
  • 5-PORT FULL GIGABIT POE SWITCH - Unmanaged. Provides 4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 120W (DC24V/DC48V input) or 60W (DC12V input).
  • INDUSTRIAL DESIGN - Compact IP40 rugged metal enclosure; wide working temperature -40°C to 80°C; Support DIN-Rail & wall mount
  • NON-STOP POE SUPPLY WITH DUAL POWER INPUT - Support 2 channel DC9V-54V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B POE outputs only.

Applications

  • Offer standard POE supply in solar power system (DC12V/DC18V/DC36V input)
  • RV/Vehicle/Truck/Bus system (DC12V input) where need POE ports
  • Suitable for UPS system (DC24V input) which need standard POE output

Specification


ModelPOE-Switch0504GD
Technical Specification
StandardsIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af/at
Forward & Filtering Rate1,488,000pps (1000Mbps)
Packet Buffer1Mbits
Packet Length10Kbytes
MAC Address Table8K
Switch Fabric10Gbps/non-blocking
Exchange PropertyBackplane bandwidth: 10Gbps;
Packet forwarding rate: 14.88Mpps
Connector5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE ModeMode B
PoE Line Pair4/5(+)，7/8(-)
Operating Temperature-40°F to 176°F (-40°C to 80°C)
Relative Humidity5% to 95% non-condensing
MTBF> 200,000 hrs
Input Power9~54V DC (Terminal Block)
Power Consumption<6W (PoE In Use: <125W)
Power Input OverloadAutomatic Resettable
Reverse PolarityPresent
Dimensions (WxDxH)3.74"x2.75"x1.14" (95 x 70x 29mm)
Weight0.551lb (250g)
CasingAluminum Case
Mounting OptionsDIN-Rail / Wall-mount


Comparison

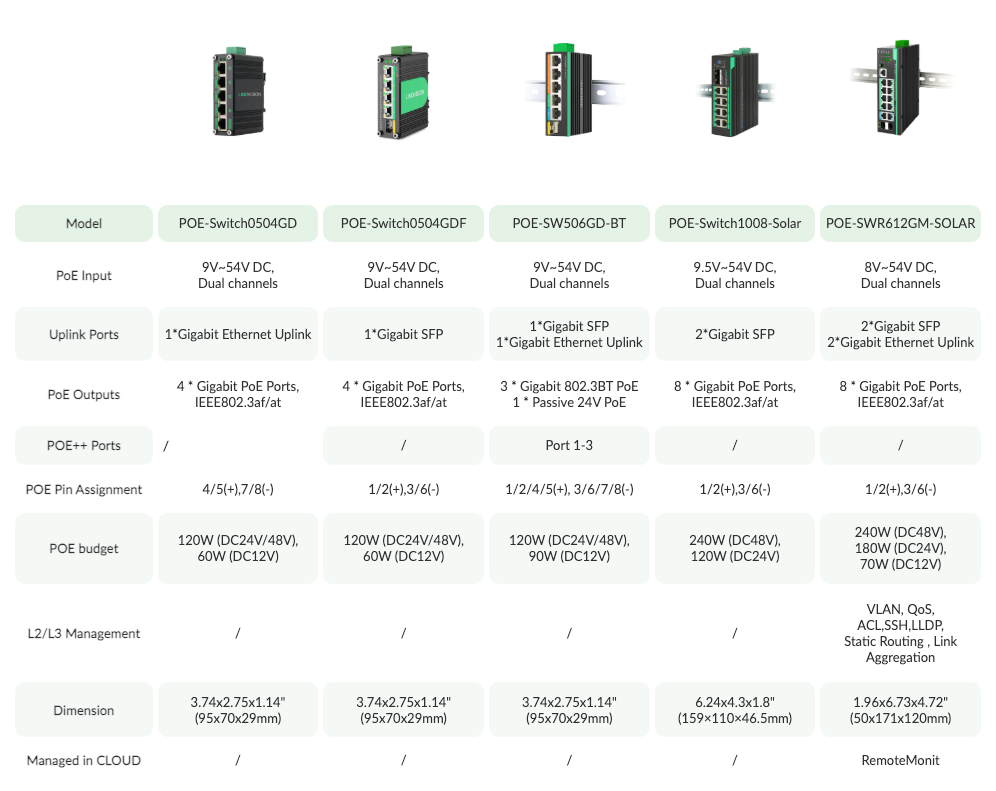

LINOVISION DC12V PoE Switch Selection Guide

POE-SW0504GD
Learn more >
POE-SW0504GDF
Learn more >
POE-SW506GD-BT
Learn more >
POE-Switch1008-Solar
Learn more >
POE-SWR612GM-SOLAR
Learn more >
ModelPOE-Switch0504GDPOE-Switch0504GDFPOE-SW506GD-BTPOE-Switch1008-SolarPOE-SWR612GM-SOLAR
PoE Input9V~54V DC,
Dual channels		9V~54V DC,
Dual channels		9V~54V DC,
Dual channels		9.5V~54V DC,
Dual channels		8V~54V DC,
Dual channels
Uplink Ports1*Gigabit Ethernet Uplink1*Gigabit SFP1*Gigabit SFP
1*Gigabit Ethernet Uplink		2*Gigabit SFP2*Gigabit SFP
2*Gigabit Ethernet Uplink
PoE Outputs4 * Gigabit PoE Ports, IEEE802.3af/at4 * Gigabit PoE Ports, IEEE802.3af/at3 * Gigabit 802.3BT PoE
1 * Passive 24V PoE		8 * Gigabit PoE Ports, IEEE802.3af/at8 * Gigabit PoE Ports, IEEE802.3af/at
POE++ Ports//Port 1-3//
POE Pin Assignment4/5(+),7/8(-)1/2(+),3/6(-)1/2/4/5(+), 3/6/7/8(-)1/2(+),3/6(-)1/2(+),3/6(-)
POE budget120W (DC24V/48V),
60W (DC12V)		120W (DC24V/48V),
60W (DC12V)		120W (DC24V/48V),
90W (DC12V)		240W (DC48V),
120W (DC24V)		240W (DC48V),
180W (DC24V),
70W (DC12V)
L2/L3 Management////VLAN, QoS, ACL,SSH,LLDP,
Static Routing , Link Aggregation
Dimension3.74x2.75x1.14"
(95x70x29mm)		3.74x2.75x1.14"
(95x70x29mm)		3.74x2.75x1.14"
(95x70x29mm)		6.24x4.3x1.8"
(159×110×46.5mm)		1.96x6.73x4.72"
(50x171x120mm)
Managed in CLOUD////RemoteMonit


Interface

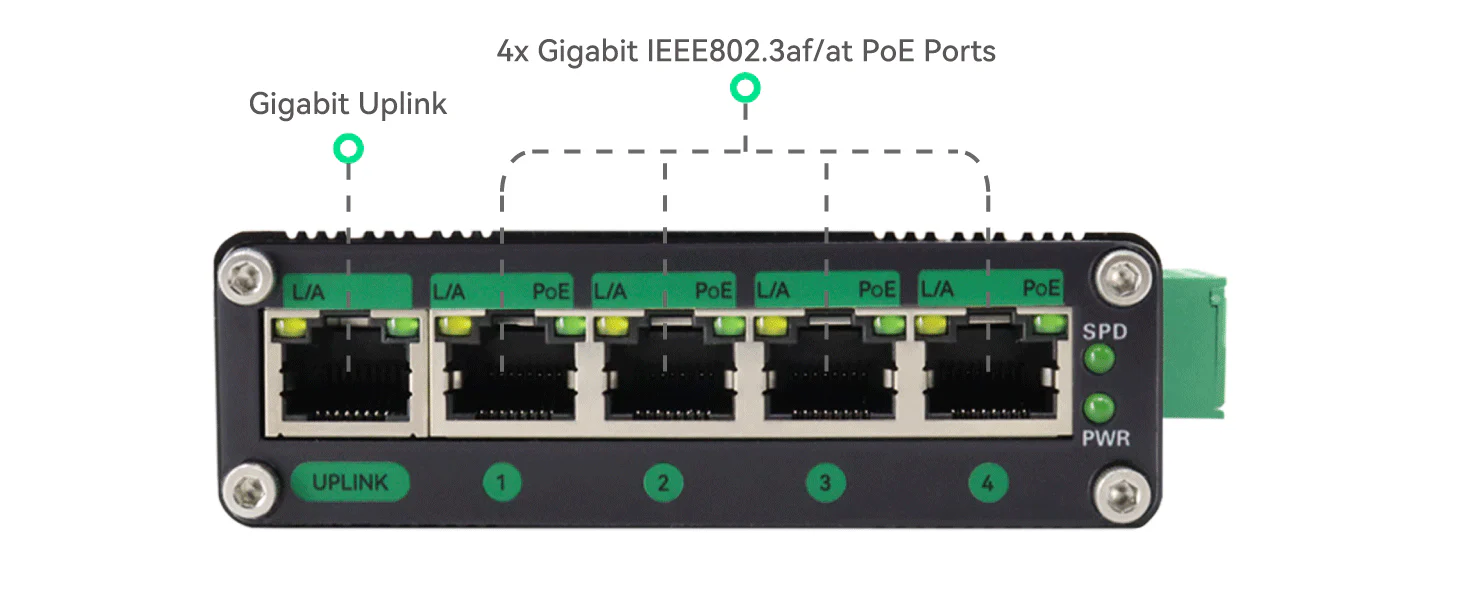

POE-Switch0504GD Interface
