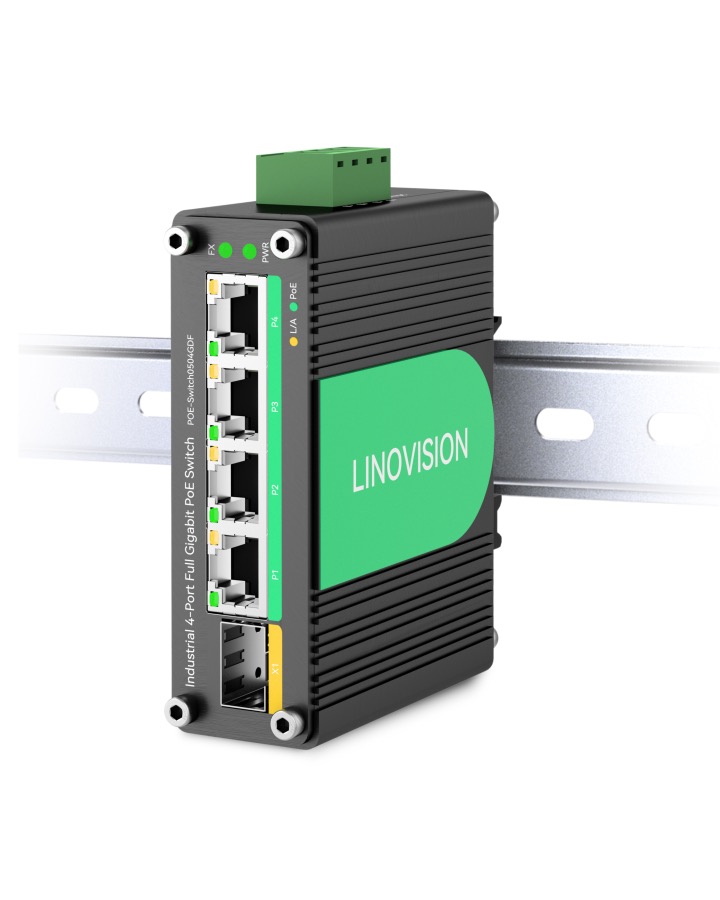

POE-Switch0504GDF Gigabit Solar PoE Switch

POE-Switch0504GDF Gigabit Solar PoE Switch

Overview

POE-Switch0504GDF is a Mini Industrial 5 ports unmanaged Solar PoE switch, featuring 9 to 57V DC inputs and Voltage Booster. It offers 4 10/100/1000Mbps PoE ports and 1 1000Mbps SFP slot. This PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

POE-Switch0504GDF


Datasheet

POE-Switch0504GDF

Industrial 4-Port Full Gigabit Solar PoE Switch with 9 to 57V DC Input

Outstanding Features

  • DC9～57V PoE SWITCH: Support DC9～57V input and IEEE802.3af/at PoE output with built-in voltage booster.
  • FULL GIGABIT: Providing 4x 10/100/1000Base-T Ethernet PoE ports and 1x 1000Base-X SFP slot (SFP module not included). All PoE ports are compliant with IEEE802.3af/at. Total PoE budget 120W (DC24V/DC48V input) or 60W (DC12V input).
  • INDUSTRIAL DESIGN: Compact IP40 rugged metal enclosure; Wide working temperature -40 ℉ to 185 ℉ (-40°C to 85°C); Support DIN-Rail & Wall Mount.
  • REDUNDANT POWER SUPPLY: Support 2 channel DC9～57V redundant power inputs and auto failover, ensure high reliability networking system.
  • STANDARD PoE - Unlike some software emulated PoE, this PoE Switch adopts hardware IEEE802.3af/at PoE chipset and compatible with Mode A PD device. It follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging.
  • APPLICATIONS: Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
Note: It outputs PoE at Mode A (Pin 1/2+, Pin 3/6 -),  if your PoE device only accepts PoE Mode B (Pin 4/5 +, Pin 7/8 -), please choose POE-Switch0504GD.


Specification

Ethernet

Standard

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate

14,880pps (10Mbps)

14,8800pps (100Mbps)

14,88000pps (1000Mbps)

MAC Address Table

8k

Packet Buffer

1Mbits

Packet Length

10Kbytes

Switch Capacity

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Interface

Connector

4* 10/100/1000Mbps PoE and injector function RJ45 Ports

Optical Port

1* 1000Mbps SFP Slot

PoE (Power over Ethernet)

PoE Standard

IEEE802.3af/at

PoE Port

RJ45

PoE Budget

Up to 120W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

Power Pin Assignment

1/2(+), 3/6(-)

Environmental

Operating Temperature

-40°F to 176°F(-40°C to 80°C)

Storage Temperature

-40°F to 185°F(-40°C to 85°C)

Operating Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Dimensions (W*H*D)

3.74×2.75×1.14″(95×70×29mm)

Input Power

9 to 57VDC (Terminal Block)

Power Consumption

<125W (Non-PoE<6W)

Power Input Overload

Automatic Resettable

Reverse Polarity

Present

Weight

0.25Kg

Casing

Aluminum Case

Installation

DIN-rail Installation; Wall-mounted Installation

LED Indicators

PWR

Power

L/A

Link/Activity

PoE

PoE Status

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
  IEC 61000-4-8: 2009 (PFMF)

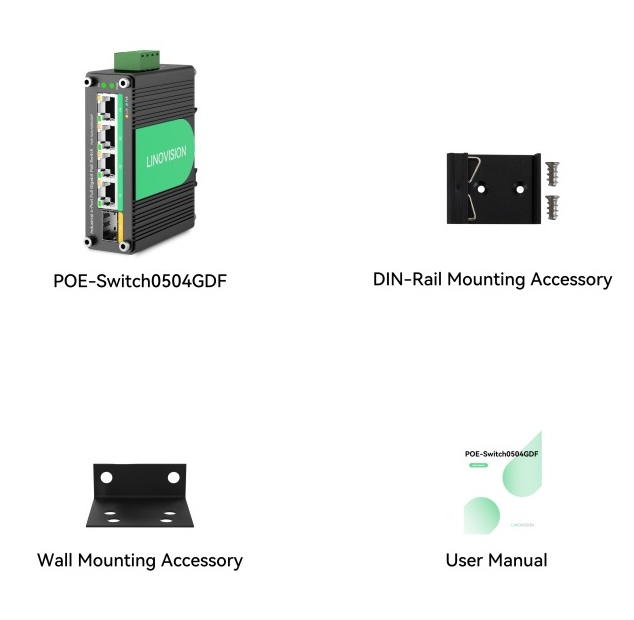

Package Contents

POE-Switch0504GDF Package Contents

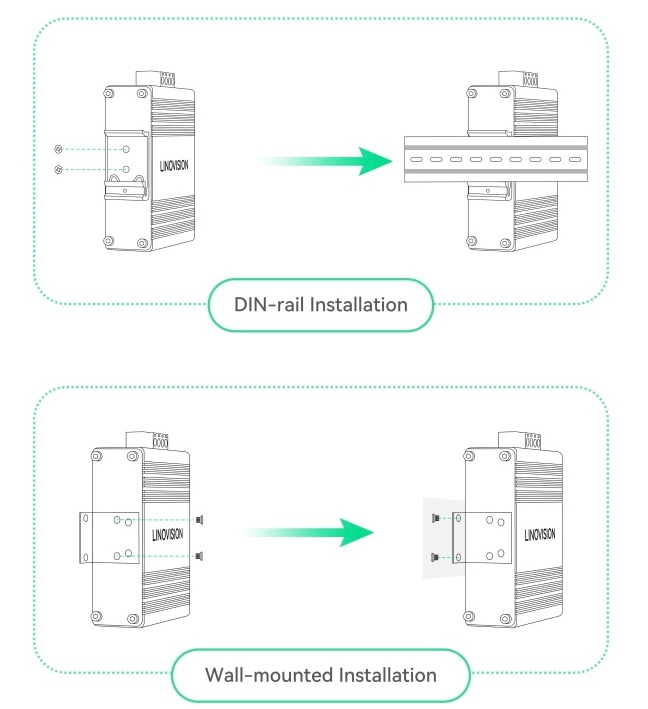

Installation

POE-Switch0504GDF Installation DIN-rail Installation&Wall-mounted Installa


Interface

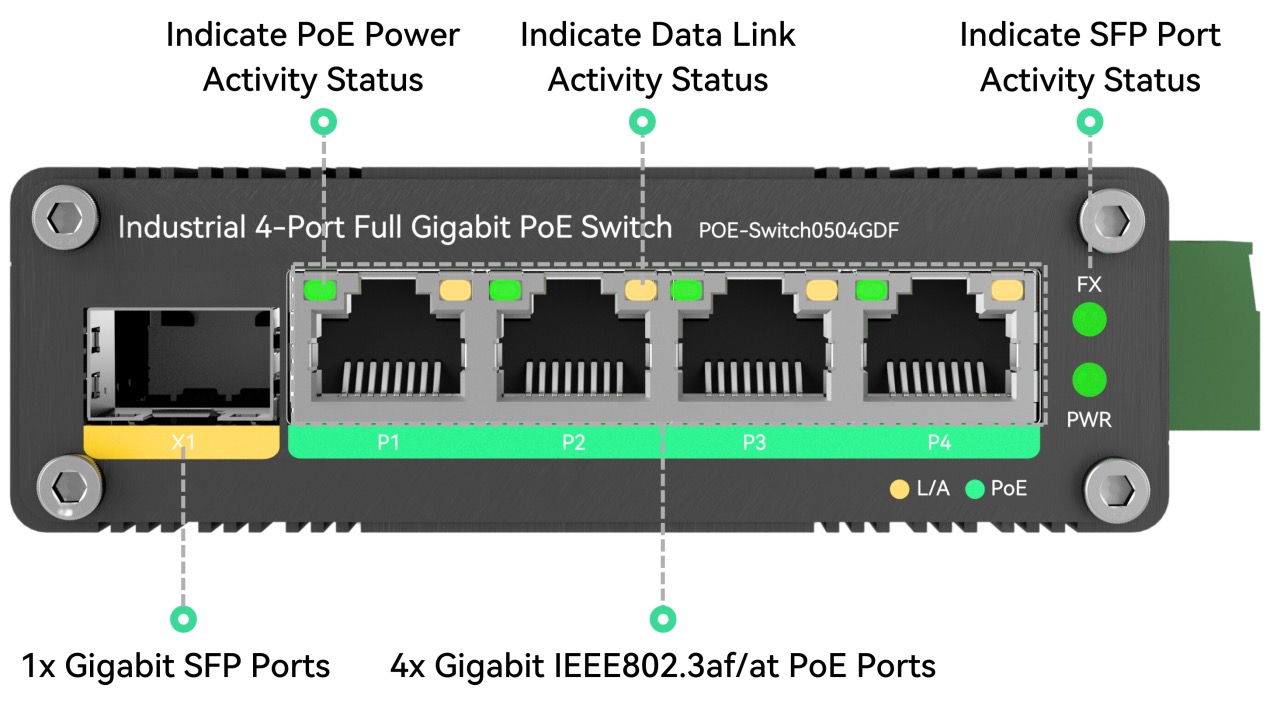

Front View
POE-Switch0504GDF Front View

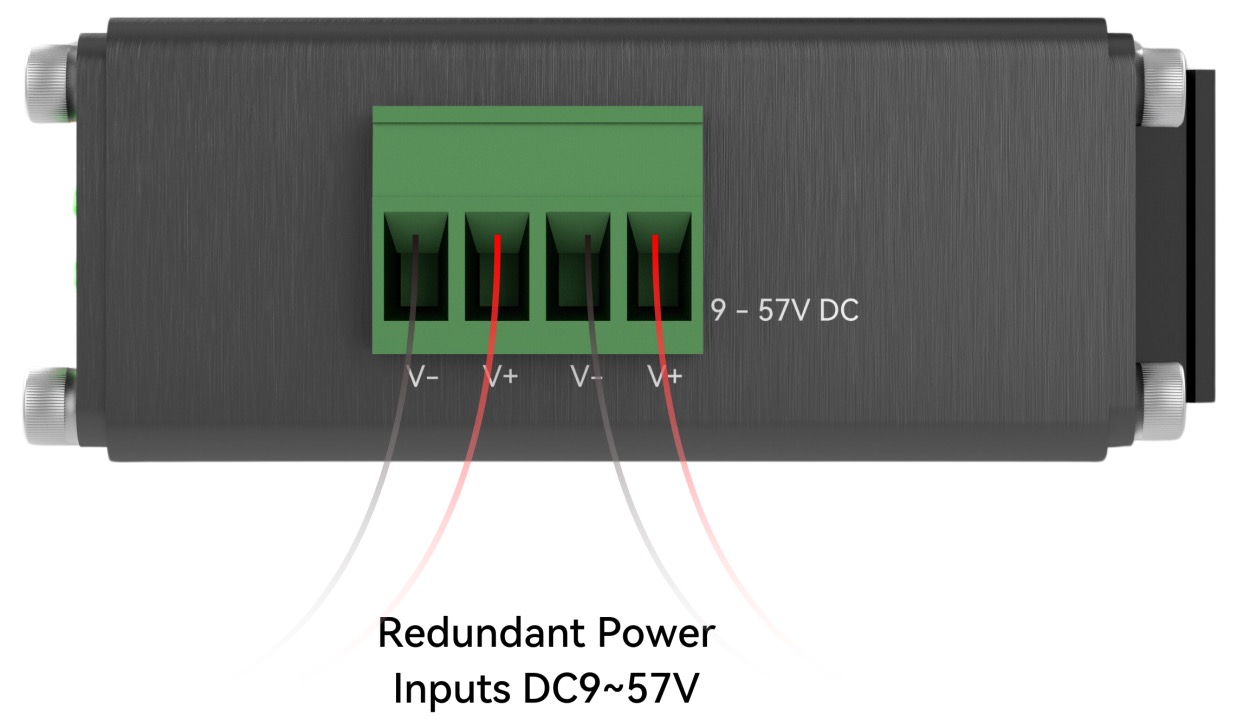

Side View
POE-Switch0504GDF Side View

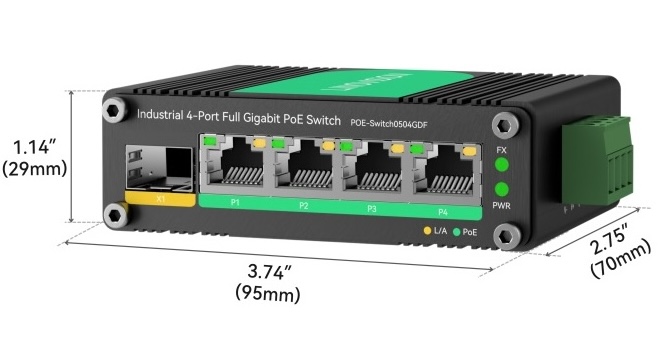

Dimension

POE-Switch0504GDF Dimension
