POE-SWR406UR - Quick Guide
POE-SWR406UR
4 Ports UltraReach PoE Switch With Remotely Cloud Management
Quick Guide (V1.1/2026-2-28)

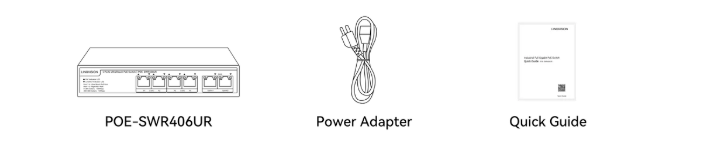

Package Contents

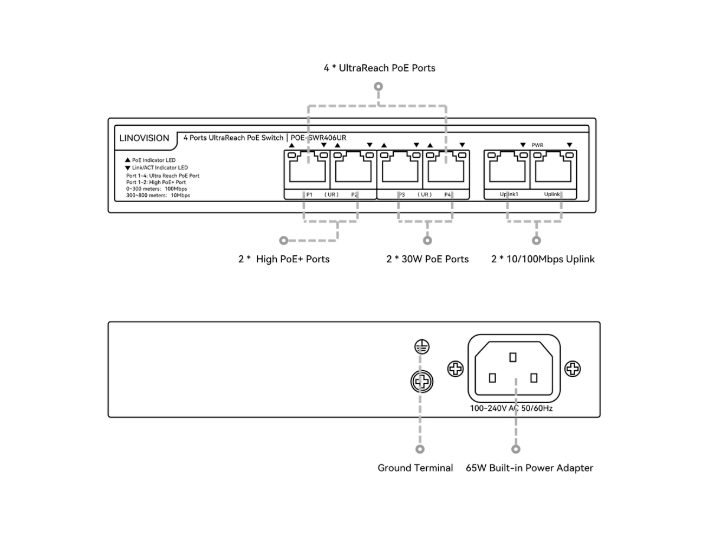

Interface

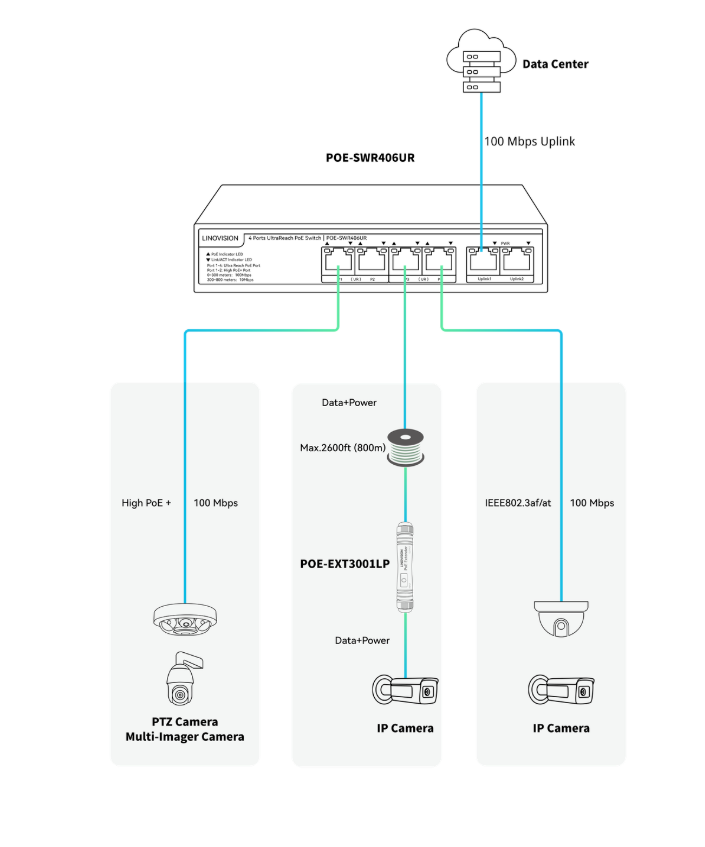

Connection Diagram

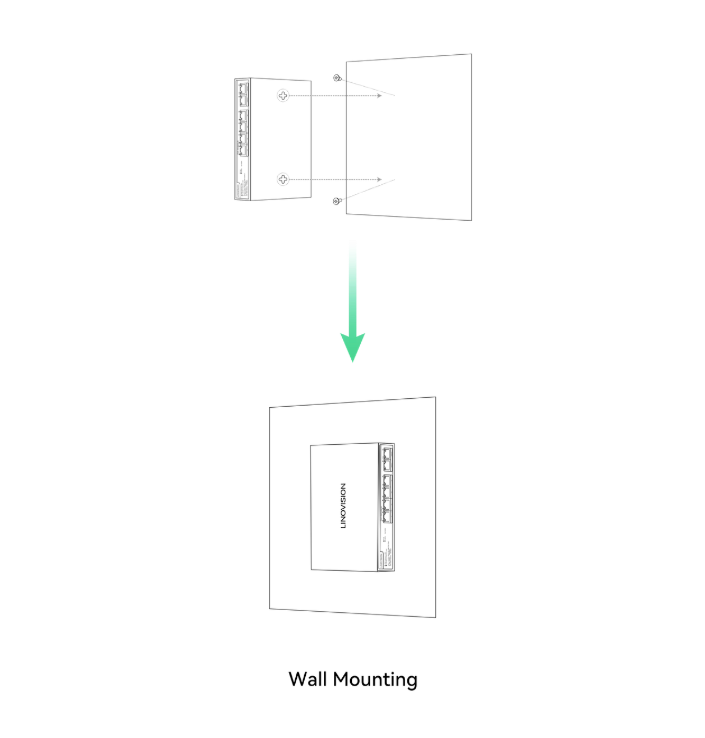

Installation
WEB Login
Web Login Steps
Step 1
Ensure the switch is powered on and operating normally. Connect the PC to the switch RJ45 port using an Ethernet cable.
Step 2
Manually set the PC IP address to 192.168.2.X
•X range: 2–254
•Subnet mask: 255.255.255.0
Step 3
Open a web browser on the PC and enter http://192.168.2.1 in the address bar, then press Enter.

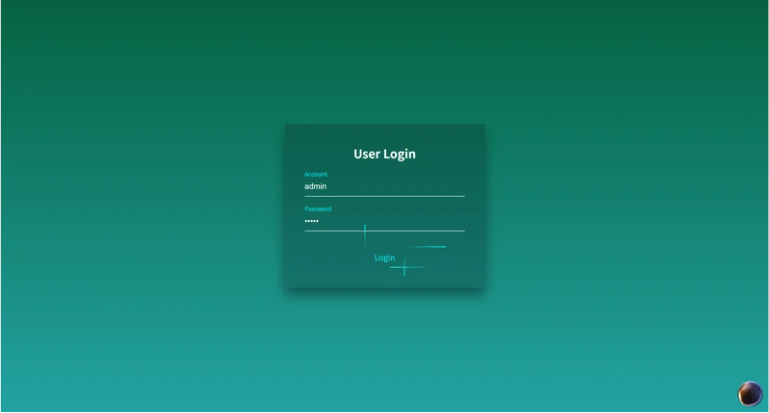

Step 4
Enter the default login credentials:
•Username: admin
•Password: admin
Click Login to continue.
Step 5
After successfully logging in, the switch web management interface is displayed. Configuration can now be performed.
PoE Management Configuration

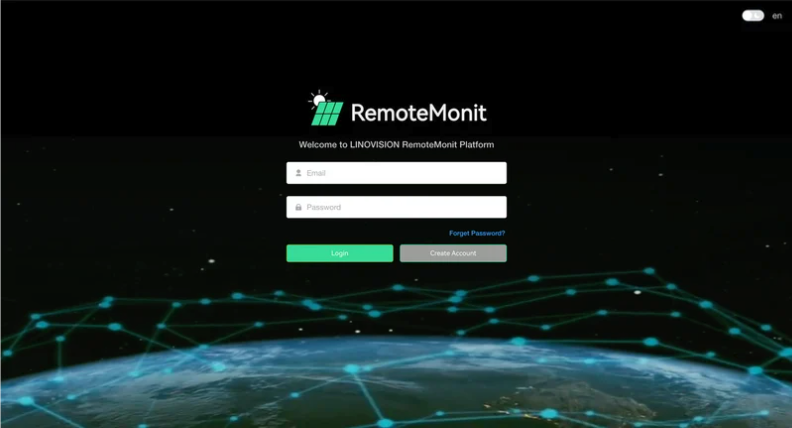

Step 1. Log In to the RemoteMonit Platform
•Open the RemoteMonit platform at https://remotemonit.com/ and log in to your account.
•If you do not have an account, please register a new one first.

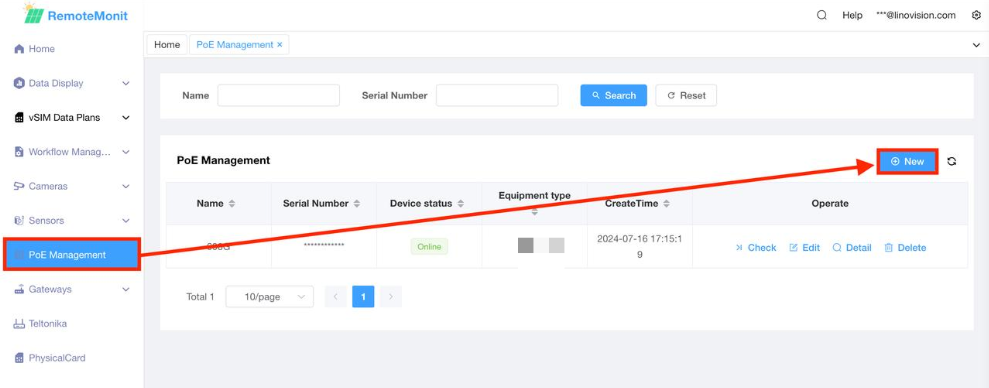

Step 2. Add a New PoE Management
In the left sidebar, navigate to:
PoE Management → + New
to add a new PoE Management.

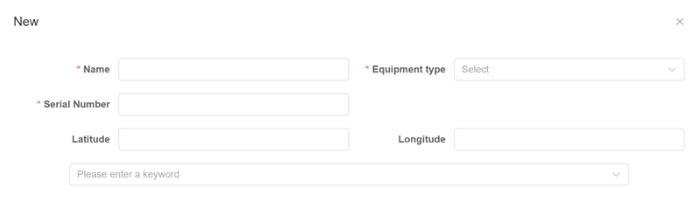

Step 3. Configure Gateway Information
Fill in the required information as follows:
•Name: The gateway name. This field can be customized.
•Equipment Type: Select the appropriate device model based on your current device.
•Serial Number: The device serial number, available on the product label or the Web interface home page.

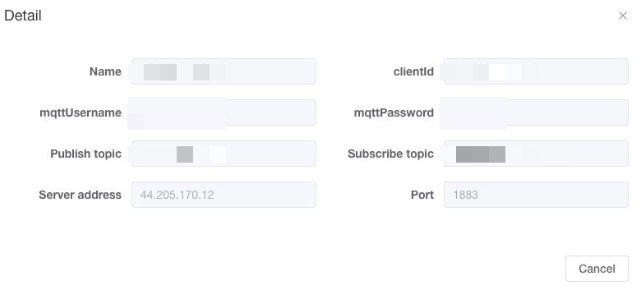

Step 4. Obtain Cloud Connection Information
On the RemoteMonit platform, open PoE Management and click Detail for the target device.
Record the following information from the Detail page:
- mqttUsername
- mqttPassword
- Publish topic
- Subscribe topic
- Server address
- Port
These parameters will be used for cloud configuration on the PoE switch.

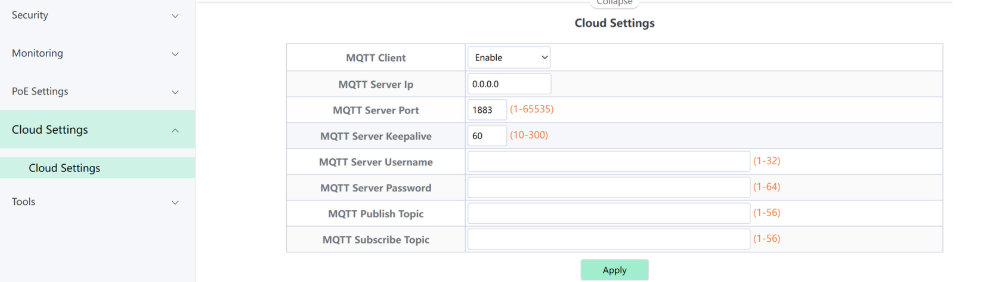

Step 5. Configure Cloud Settings on the PoE Switch
Log in to the PoE switch Web interface and navigate to:
Cloud Settings
Set MQTT Client to Enable.
Enter the cloud parameters obtained in Step 4, then click Apply to save the settings.
LED Indicator
| LED | Color | Function |
|---|---|---|
| PWR | Green | Off: No Power supply. Light: Indicates the switch has power. |
| DATA | Green | Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. |
| PoE | Orange | Off: No PoE powered device (PD) connected. Light: There is a PoE PD connected to be port, which supply power successfully. Blink: Indicates port abnormal PoE supply. |
Specifications
| Mechanical | |
|---|---|
| Material | Metal |
| Weight | 0.5kg (1.1lb) |
| Dimension | 6.61*3.70*1.22'' (168*94*31mm) |
| Storage Temperature | -40°F to 158°F (-40°C to +70°C) |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Interfaces | |
| Input Power Supply | AC: 100-240V 50/60Hz |
| Network | 6 * 10/100Mbps RJ45 Ports |
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) |
| Standard | IEEE802.3,IEEE802.3a,IEEE802.1ab,IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.3af,IEEE802.3at |
| Ethernet | |
| PoE Output Ports | Port 1-2: High PoE+, IEEE 802.3af/at, 45W(Max), Mode A(Pins 1/2[+], 3/6[-]) Port 3-4: PoE+, IEEE 802.3af/at, Mode A(Pins 1/2[+], 3/6[-]) |
| Power Supply | 65W |
| PoE Power Budget | 60W |
| Switching Features | |
| MAC Address Table | 8K |
| Packet Buffer | 4Mbits |
| Jumbo Frame | 9216Byte |
| Switching Capacity | 1.2Gbps |
| Packet Forward Speed | 0.89Mpps |
| Environment | |
| Surge Protection | Differential mode ±2 KV,Common mode ±4 KV |
| Electrostatic Standard | Contact ±6 KV, Air ±8 KV |
| MTBF | >50000 hours |
