POE-SWR608G-Solar
Industrial 8 Ports Remote Solar PoE Switch
Overview

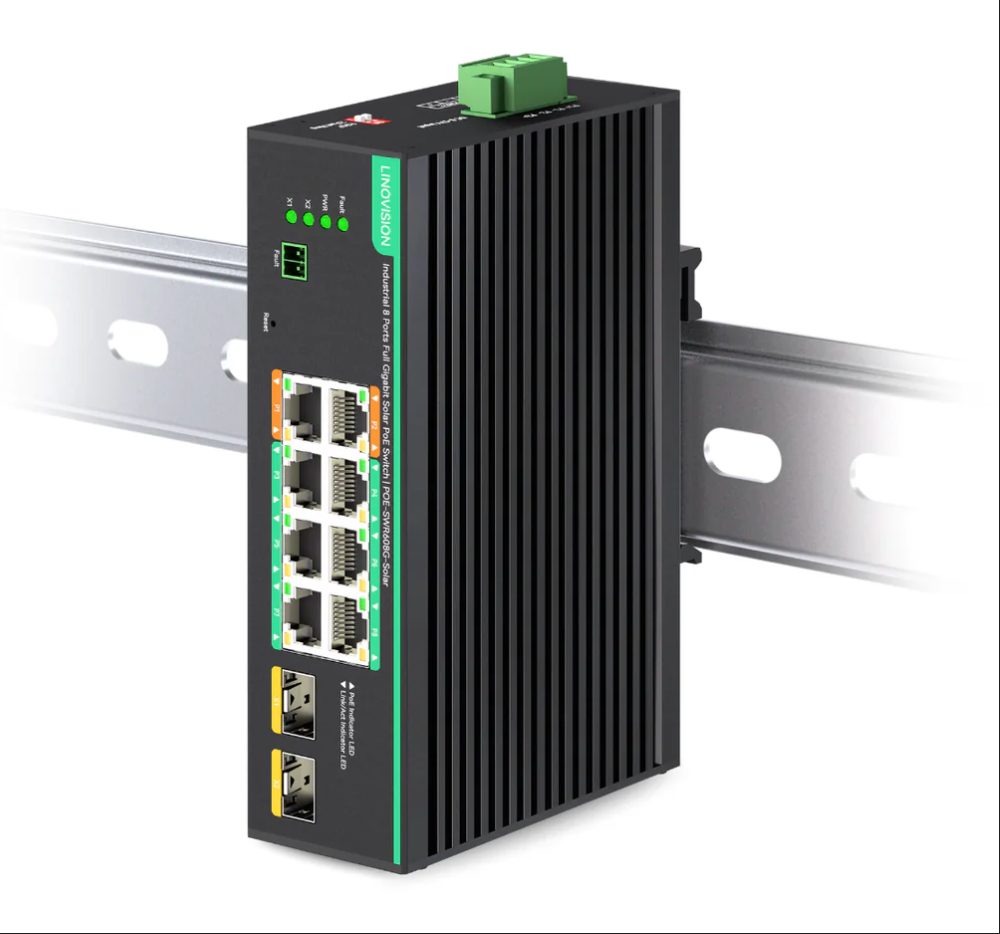

The PoE-SWR608G-SOLAR is a web-managed industrial PoE switch with eight Gigabit PoE/PoE+ ports and two 2.5 Gbps SFP slots. It supports 8–57 VDC input with a built-in voltage booster for solar power systems. Features include static routing, VLAN, advanced QoS, ACL security, and sub-50 ms ring self healing for reliable, high-performance networking.
Datasheet
Outstanding Features
- SOLAR PoE SWITCH: Support DC 8~57V voltage input, featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.
- 10 FULL GIGABIT PORTS: 2x 2.5G SFP ports, 6x IEEE802.3af/at PoE Ports and 2x 45W High PoE+ Ports.
- 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.
- REMOTELY CLOUD MANAGED: via WEB GUI or RemoteMonit CLOUD. It supports VLAN, QOS and PoE port management, including PoE On/Off control, Power budget, priority, etc.
- TOTAL PoE BUDGET: 180W (DC24V/48V input) or 70W (DC12V input).
- REDUNDANT POWER INPUT: Support 2 channel DC8～57V independent power inputs, ensure high reliability networking system.
- INDUSTRIAL DESIGN: Support DIN rail mount and Wall mount. Wide working temperature (-20°C ~ 60 °C or -4°F~140 °F) and 4KV surge protection.

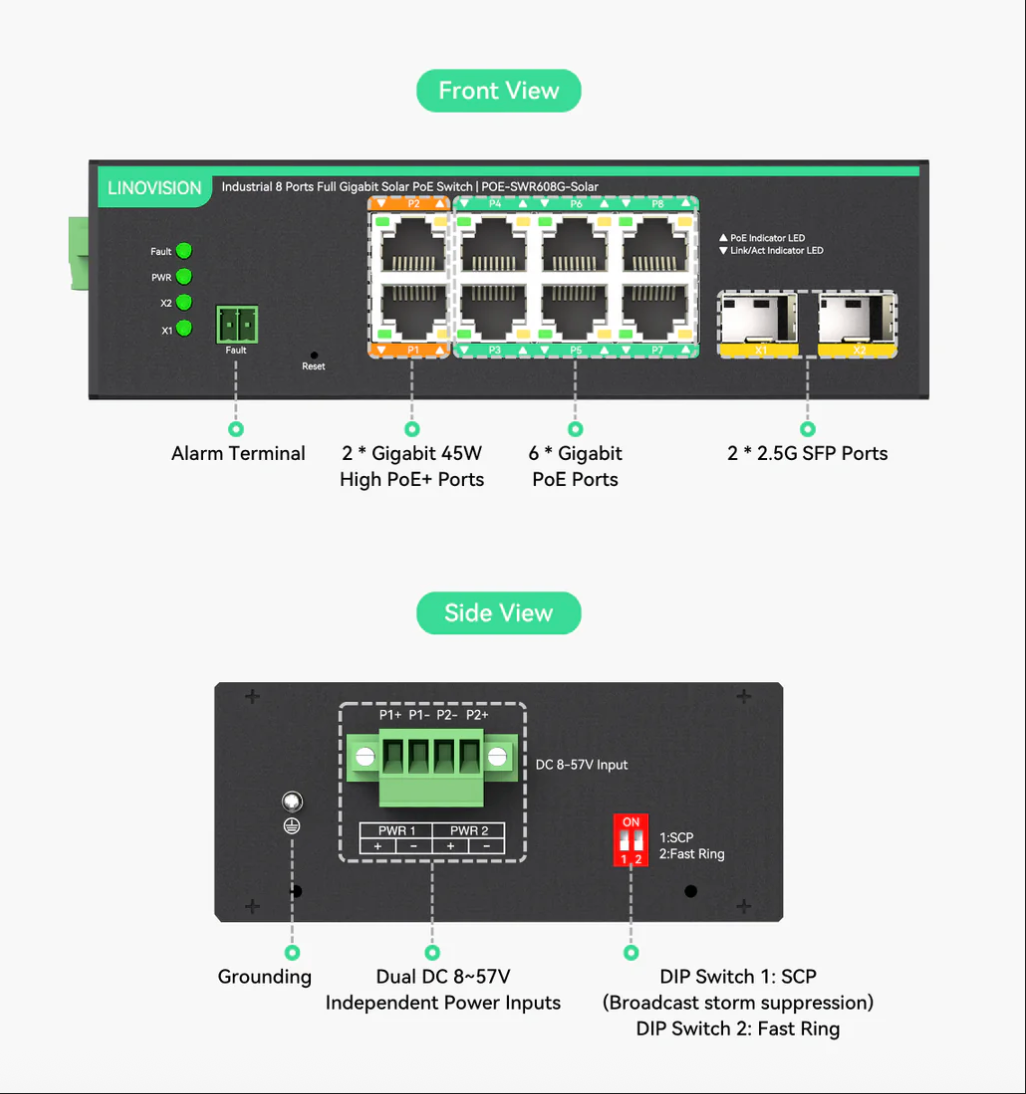

Interface

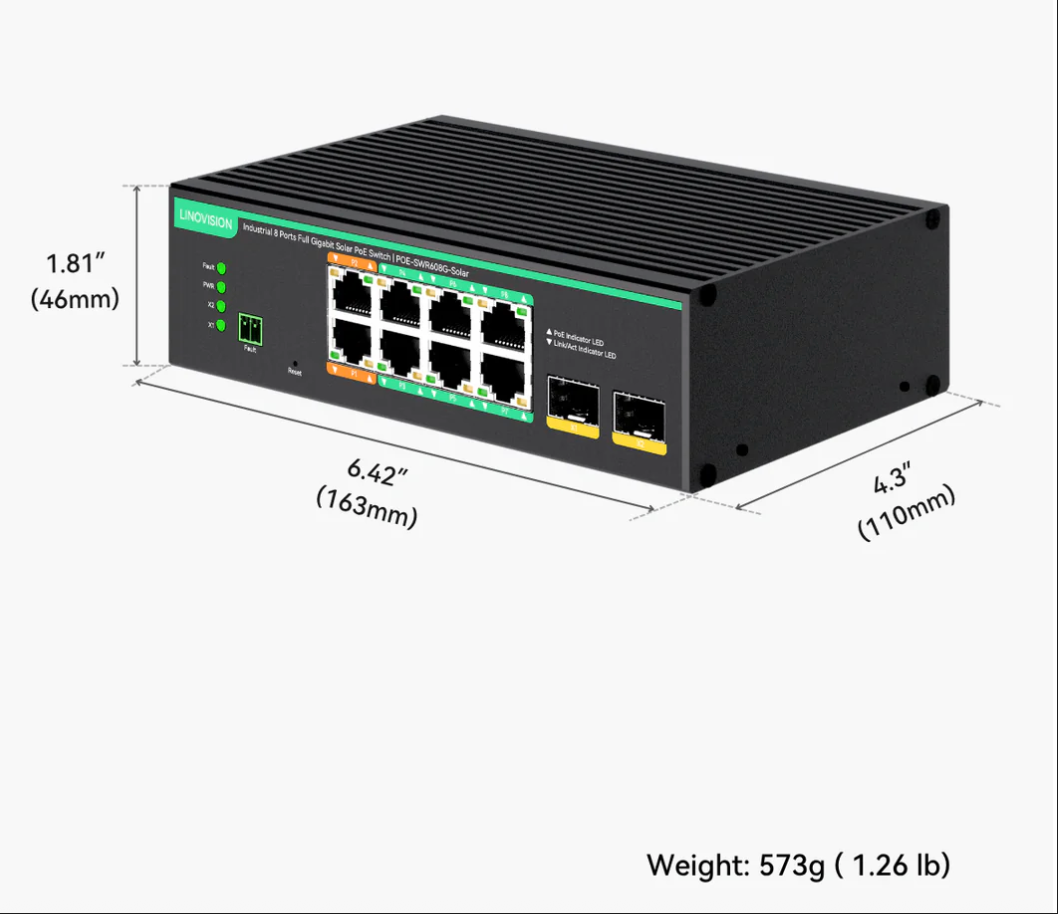

Dimension

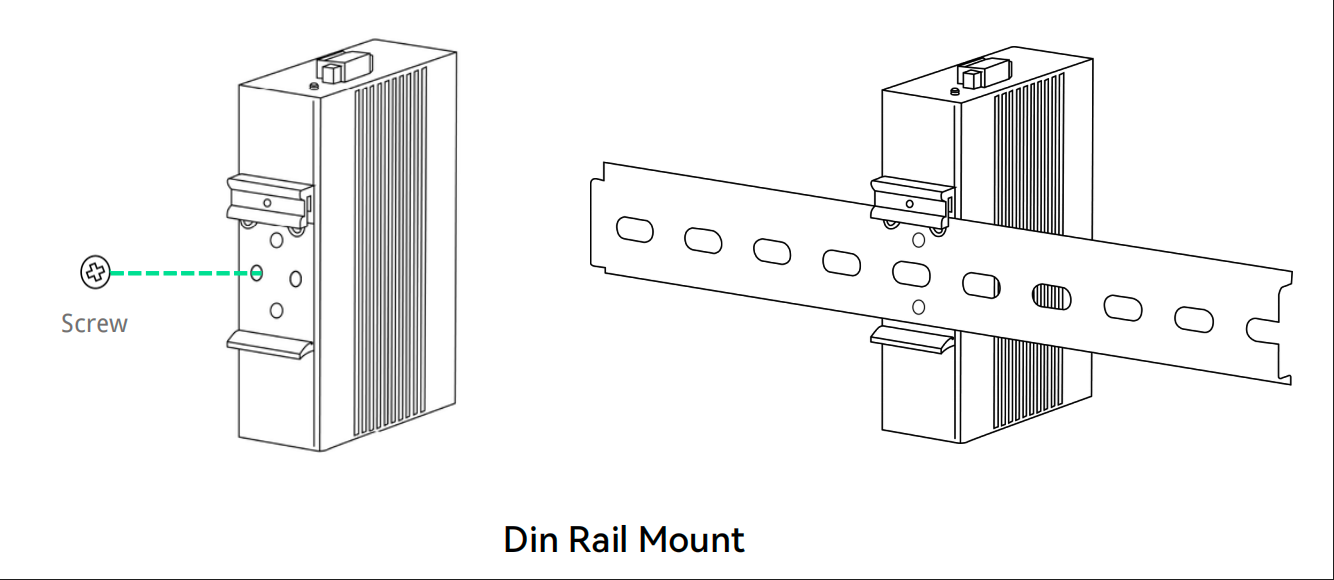

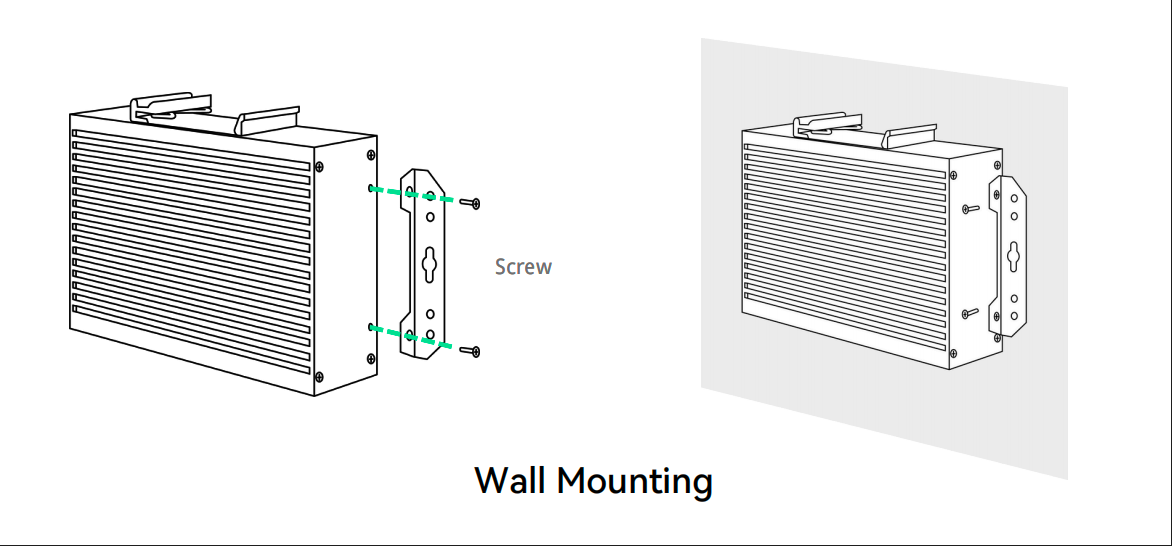

Installation

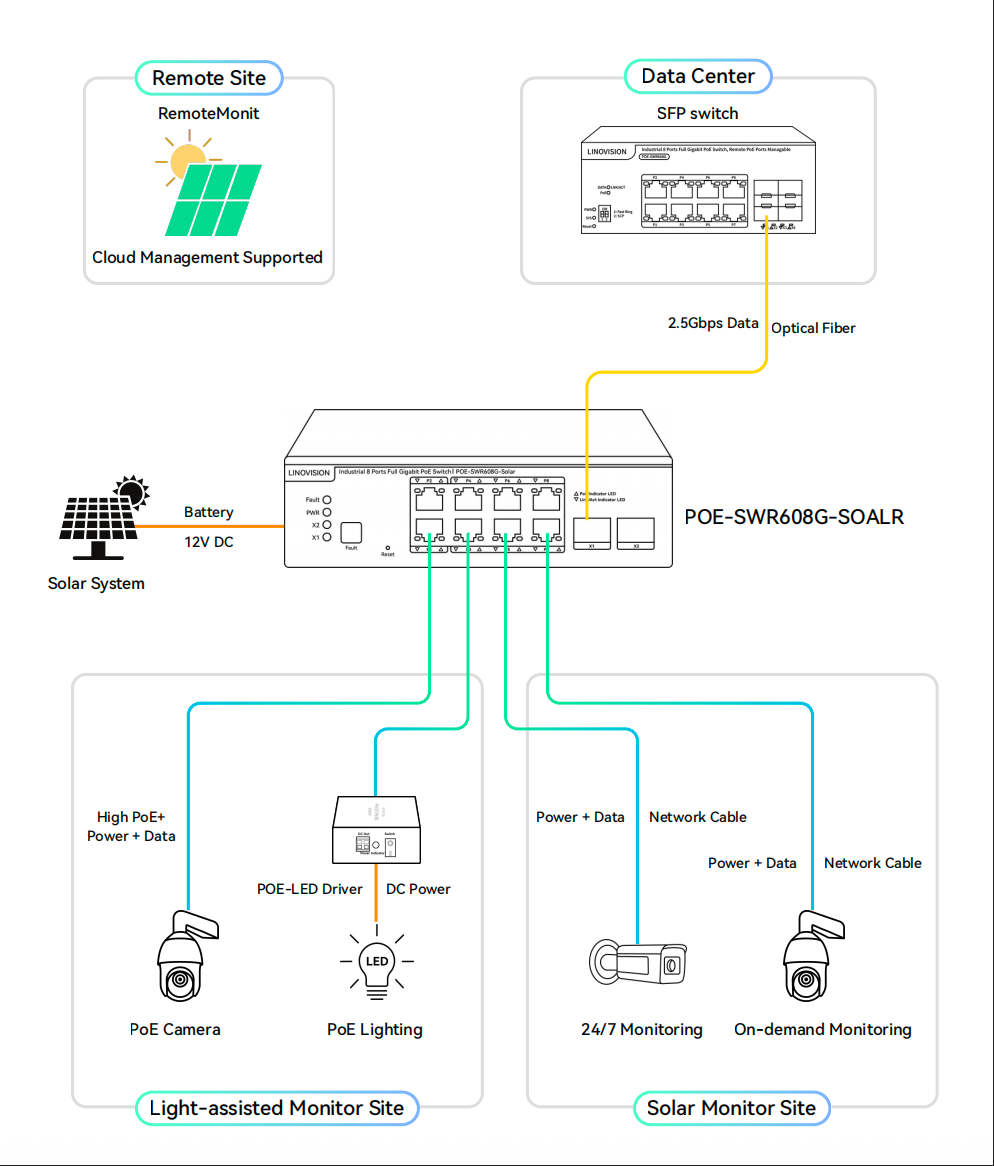

Connection Diagram
Specifications
Interface
| 8×10/100/1000Mbps RJ45 Ports
2×2.5Gbps SFP Ports
|
Standard
| IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,
IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w,
IEEE802.3ad, IEEE802.3af, IEEE802.3at
|
|
Network Media (Cable)
| 10BASE‑T: UTP category 3,4,5 cable (≤100 m)100BASE‑TX:
UTP category 5,5e cable (≤100 m)1000BASE‑X: UTP category
5e,6 cable (≤100 m)1000BASE‑X: MMF, SMF
|
|
PoE Standard
|
IEEE802.3af/at
|
PoE port
| Port1–8
|
PoE Output
| Port 1-2: 45W (Max)
Port 3-8: 30W (Max)
|
PoE Power On RJ45
| 1/2 (+), 3/6 (–)
|
PoE Power Budget | 70W @ 12V 180W @ 24V/48V |
Total power supply (reference) | 200W |
Input voltage | DC 8–57V |
MAC Address Table | 16K, Auto‑learning, Auto‑update |
Jumbo Frame | 12KByte |
Buffer | 8.4Mbit |
Transfer Mode | Store‑and‑forward |
Packet Forward Speed | 19.34Mbps |
Switching Capacity | 26Gbps |
Dimensions (L×W×H) | 163×110×46mm (6.42"×4.3"×1.81") |
Operating Humidity | 10% ~ 90% non‑condensing |
Storage Humidity | 5% ~ 90% non‑condensing |
Surge Protection | Differential mode ±2 KV, Common mode ±4 KV |
Electrostatic Standard | Contact ±6 KV, Air ±8 KV |
Function menu | Functional description | Added |
Function menu | Login authentication and logout | |
Bilingual (Chinese‑English Switching) | ||
Port Panel (two colors distinguish speed) | 1000M green 100M/10M orange‑yellow | |
System Settings | Device Info | Hostname / Device Contact / Device Location |
IP Settings | Static / DHCP Client / DNS | |
Web Settings | Web timeout settings | |
Telnet Settings | Support telnet enabled/disabled Support telnet timeout setting | |
User Management | Password must contain at least letters & numbers, length ≥ 6 | |
Upgrade | Local Upgrade | |
Device Management | Reboot / Save Configure / Restore | |
Monitoring | Port Statistics | Reboot / Save Configure / Restore |
Cable Diagnostics | Reboot / Save Configure / Restore | |
Loop Guard | rlpp | |
| IGMP Snooping | Flood/Drop / DIP Mode | |
Switch Settings | Port Settings | Status Speed / Duplex / Flow Control |
Port Mirroring | In/Out/All | |
Port Isolation | ||
Jumbo Frame | Support 1522–10000 Bytes | |
Green Enable | ||
Static MAC | ||
| Filter MAC | ||
Search MAC | ||
MAC List | Classified display static/dynamic MAC address | |
DHCP Snooping | ||
Switch Settings | VLAN Member | |
VLAN Settings | Access, Trunk | |
QoS Settings | Port Rate | |
Storm Control | ||
QoS Priority Mapping | Support CoS and DSCP priority mapping | |
QoS Queue Scheduling | Support 8 queue, SP and WRR Queue Scheduling | |
PoE Settings | PoE Basic Settings | Support enabled/disabled PoE port Force Power PoE Port Limit PD Alive |
Cloud Settings | Cloud Settings | MQTT |
Configuration
- Connect the POE-SWR608G-SOLAR to a power source, and use an RJ45 cable to connect it to your computer.
- Open your network connections and modify the settings for the network interface corresponding to the POE-SWR608G-SOLAR. Set the IP configuration to manual and assign the IP address to '192.168.2.2'.
- Open your browser and navigate to the default IP address of the POE-SWR608G-SOLAR, "192.168.2.1", and log in with the default username "admin" and password "admin".

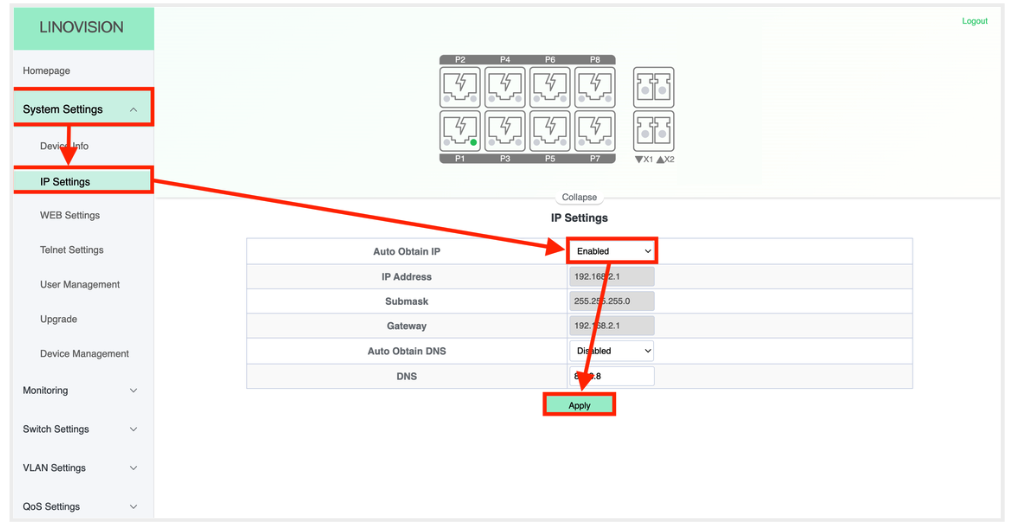

- On the sidebar, select "System Settings" - "IP Settings". Set "Auto Obtain IP" to "Enable" and click "Apply" to apply the settings.
- Connect the POE-SWR608G-SOLAR to the router/gateway with RJ45 cable. Consult your network administrator or go to the router's configuration page to obtain the new IP address of the POE-SWR608G-SOLAR.
- Save all your settings in the top right corner of the web page.

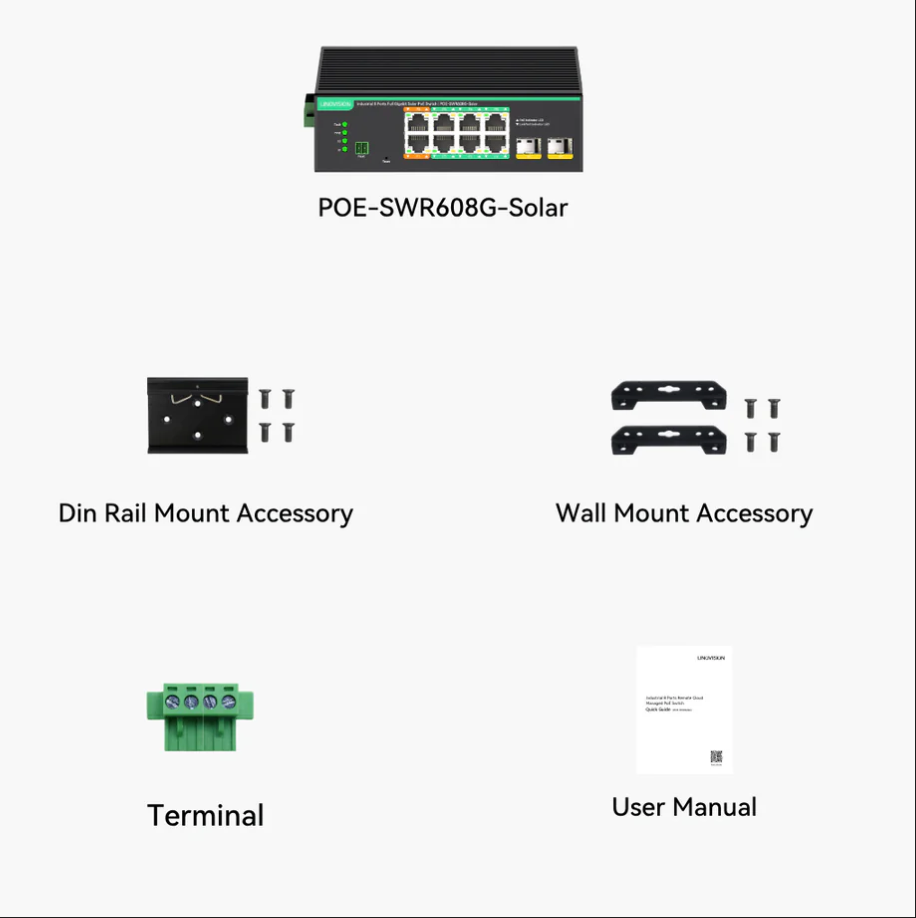

Package Contents
