8 Ports Full Gigabit BT90W PoE++ Switch x
Quick Guide (V1.1/2026-2-5)

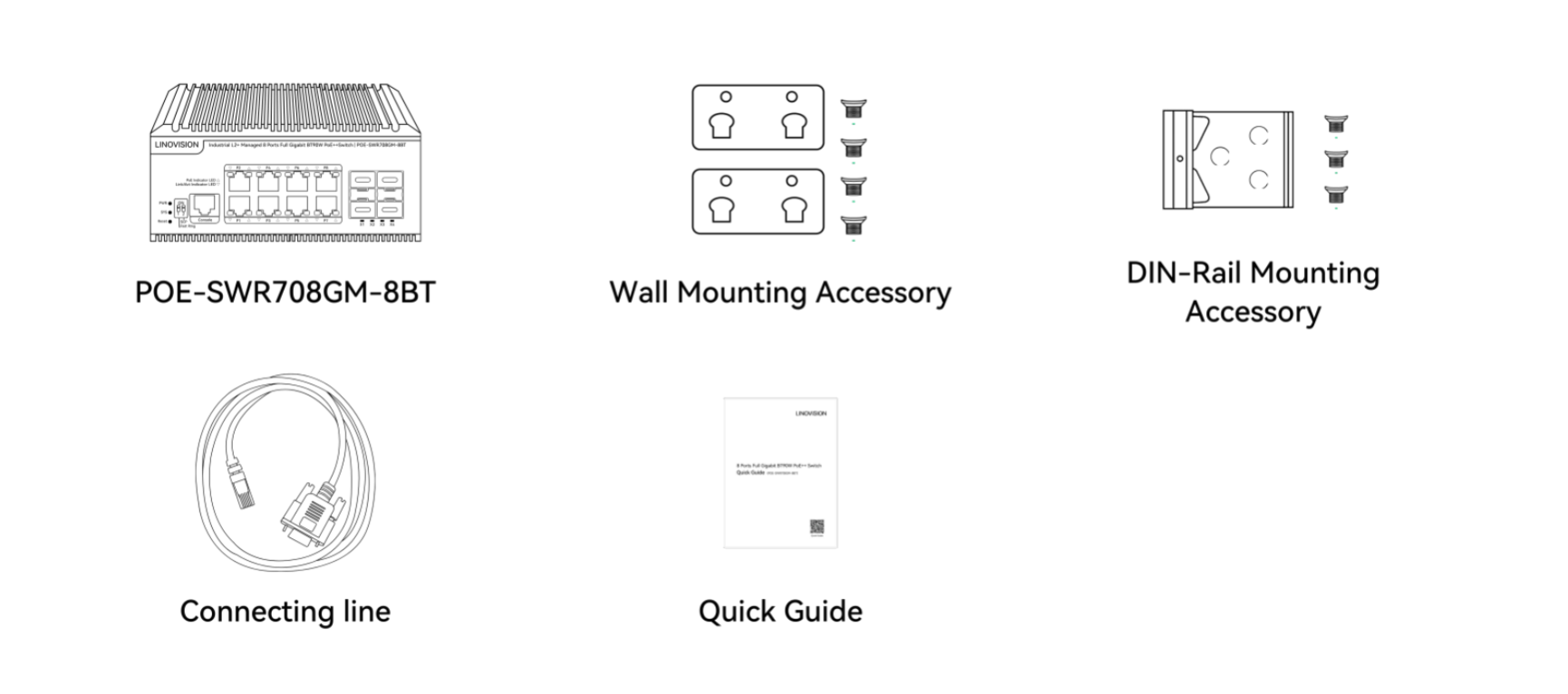

Package Contents

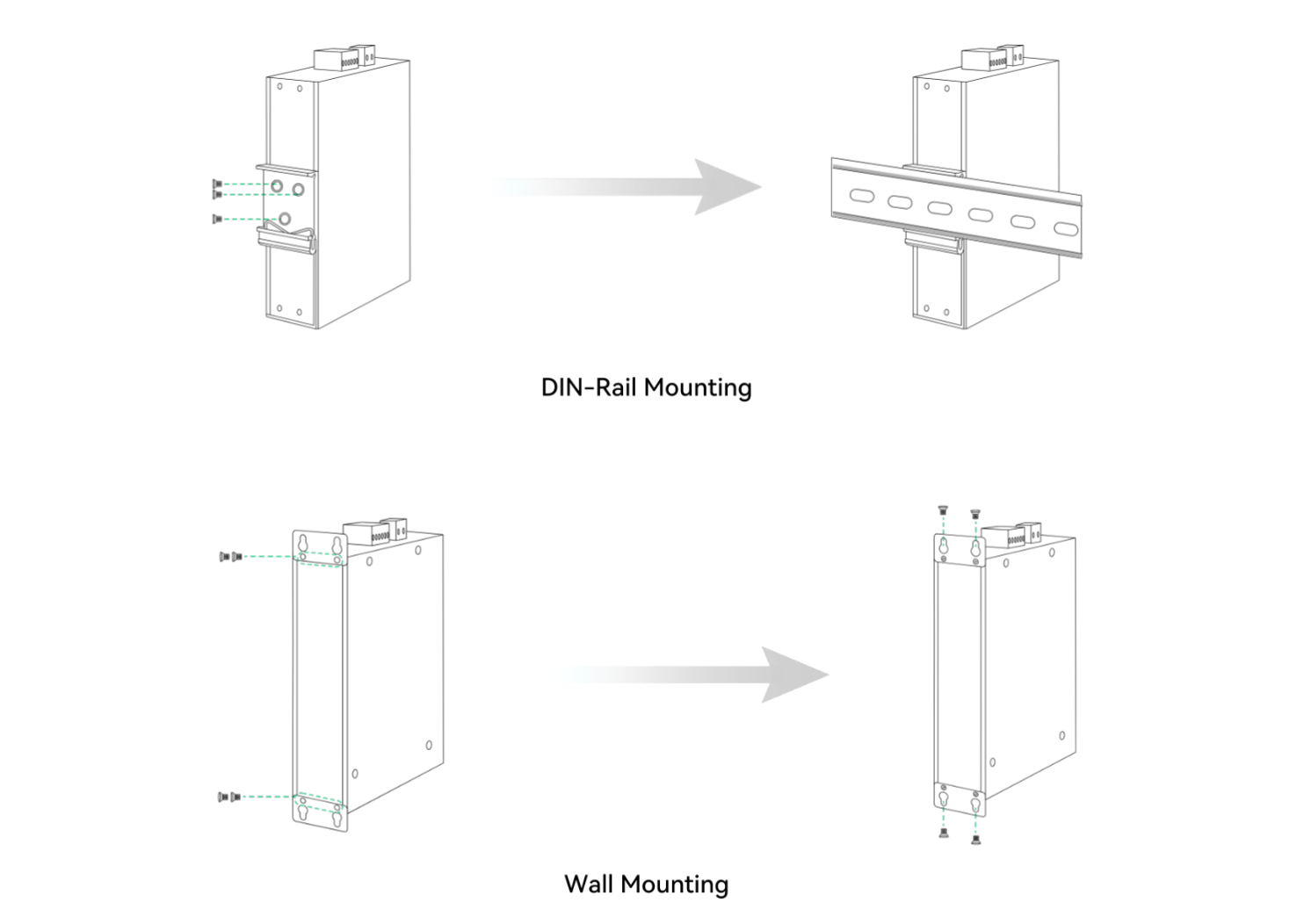

Installation

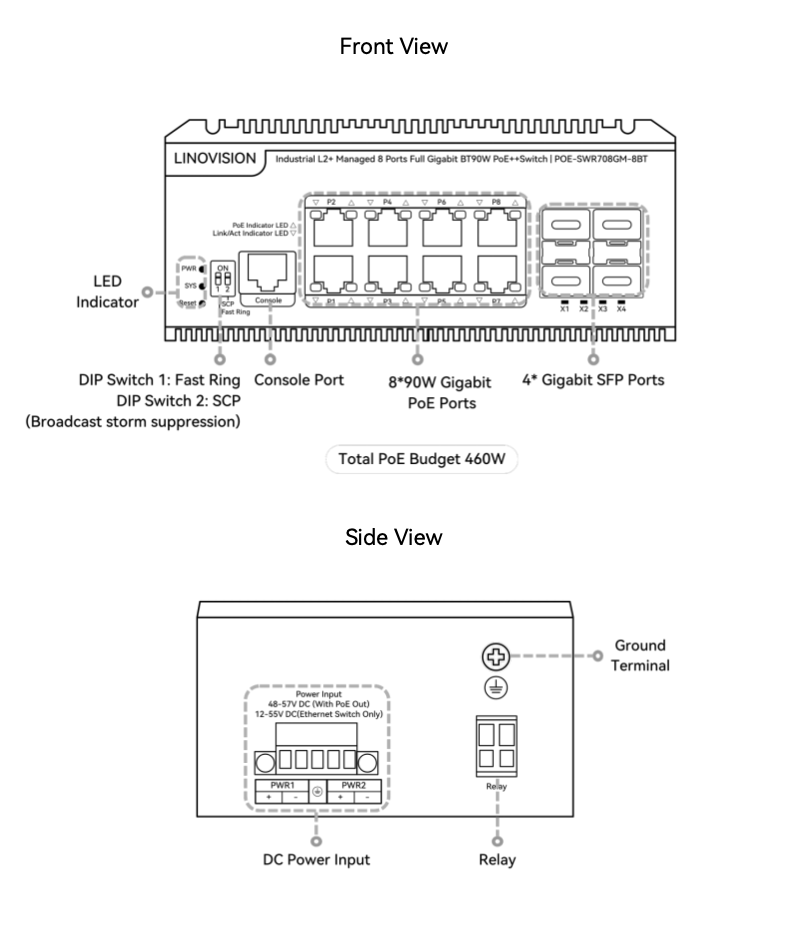

Interface

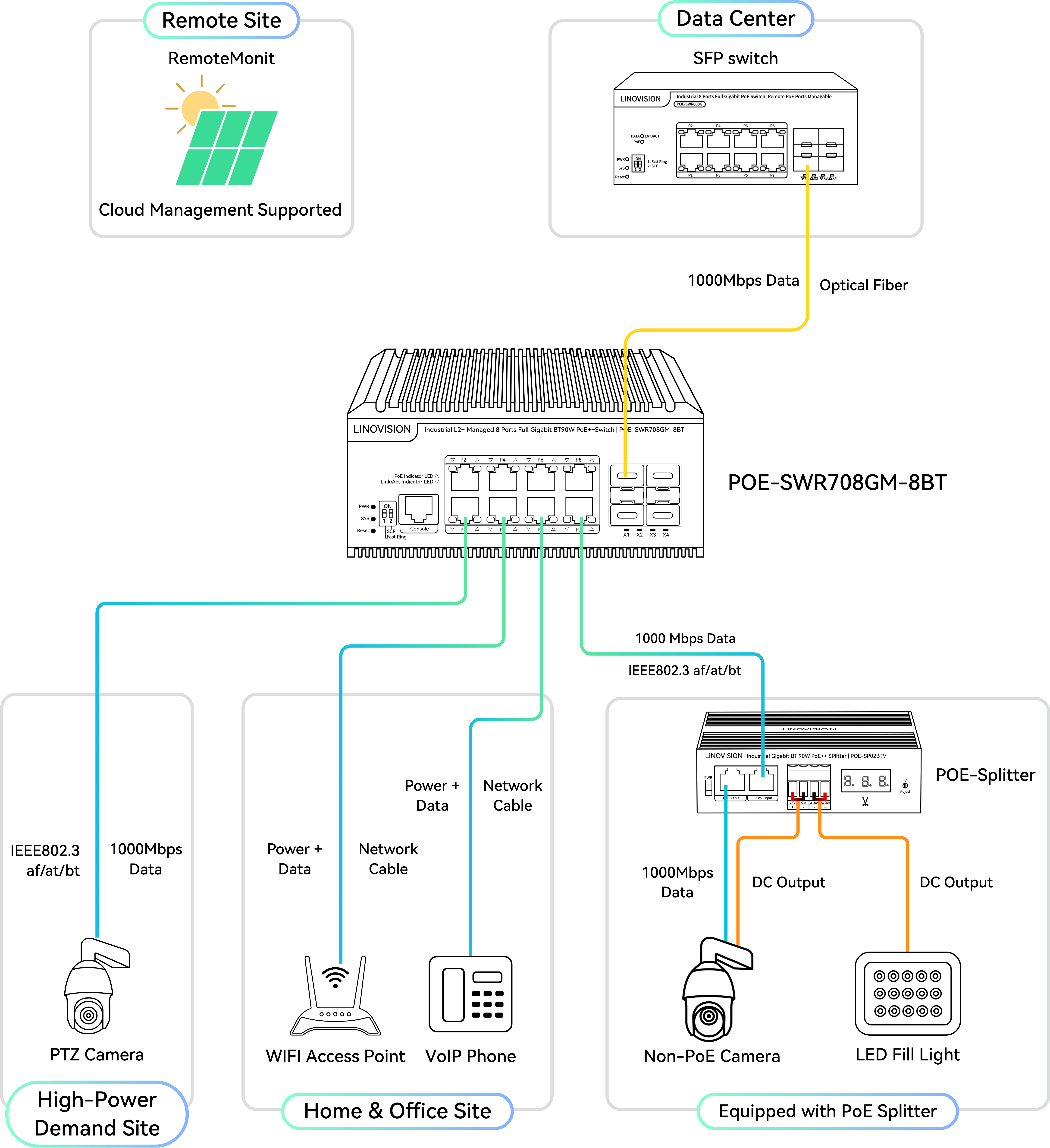

Connection Diagram
LED Indicator
| LED | Status | Indication |
| PWR | On (Green) | Indicates the Switch has power. |
| Off | No Power supply. | |
| DATA | On (Green) | Indicates the link through that port is successfully established at 10/100/1000Mbps. |
| Off | No device is connected to the corresponding port. | |
| Blink | Indicates that the Switch is actively sending or receiving data over that port. | |
| PoE | On (Orange) | There is a PoE PD connected to be port, which supply power successfully. |
| Off | No PoE powered device (PD) connected. | |
| Blink | Indicates port abnormal PoE supply. | |
| SYS | Blink (Green) | The system is working properly. |
| Off | The system is being started or is abnormal. |
Specifications
| Model | POE-SWMR324G25BTF-720 |
| Interface | Interface 24*10M/100M/1000M/2.5Gbps RJ45 Ports 6*1000M/2.5G/10Gbps SFP+ Slots 1*Console Port |
| Standard | IEEE802.3, IEEE802.3ae, IEEE802.3a, IEEE802.1ab, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1x, IEEE802.1s, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Network Media(Cable) | 10BASE-T:UTP category 3, 4, 5 cable (≤100m) 100BASE-T:UTP category 5, 5e cable(≤100m) 1000BASE-TX:UTP category 5e, 6 cable(≤100m) 2.5GBASE-X:UTP category 6, 6A cable(≤100m) 1000BASE-X:MMF, SMF 10GBASE-X:MMF, SMF 10GBASE-SR:OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR:IEC's B1.1 and B1.3 SMF (2m~10000m) |
| Indicator | PWR (Green), LNK/ACT (Green), SYS (Green), PoE(Orange) |
| MAC Address Table | 32K,Auto-learning, Auto-updating |
| Jumbo Frame | 12KByte |
| Packet Buffer | 16Mbit |
| Transfer Mode | Store-and-Forward |
| Switching Capacity | 240Gbps |
| Packet Forward Speed | 178.56Mpps |
| Dimensions(L*W*H) | |
| Total Power Supply | 1000W |
| Input Voltage | AC: 100-240V, 50/60Hz |
| PoE Total Power | 720W |
| PoE Port | 1-24 Ports |
| PoE Output Voltage | 90W (Max) |
| PoE Power On RJ45 | 1/2(-)3/6(+), 4/5(+)7/8(-) |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Lightning Protection Grade | Differential mode ±2KV, Common mode ±4KV |
| Electrostatic Standard | Contact ±6KV, Air ±8KV |
| MTBF | >50000 hours |
WEB Login
1. Connect the POE-SWR708GM-8BT to a power source, and use an RJ45 cable to connect it to your computer.
2. Open your network connections and modify the settings for the network interface corresponding to the POE-SWR708GM-8BT. Set the IP configuration to manual and assign the IP address to "192.168.2.2".
3. Open your browser and navigate to the default IP address of the POE-SWR708GM-8BT, "192.168.2.1", and log in with the default username "admin" and password "admin".

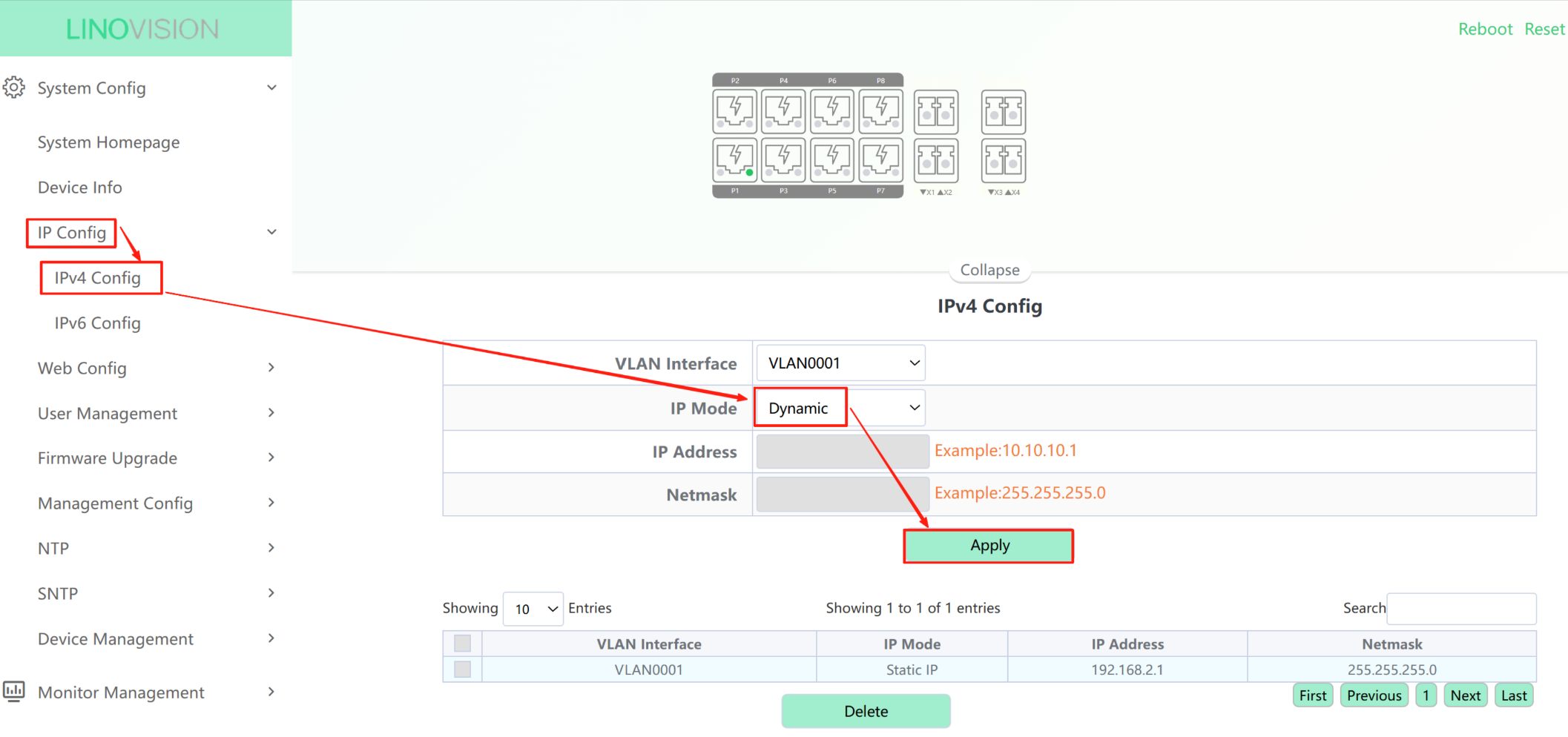

4. On the sidebar, select "System Settings" - "IP Settings". Set "Auto Obtain IP" to "Enable" and click "Apply" to apply the settings.
5. Connect the POE-SWR708GM-8BT to the router/gateway with RJ45 cable. Consult your network administrator or go to the router's configuration page to obtain the new IP address of the POE-SWR708GM-8BT.
6. Save all your settings in the top right corner of the web page.
