SIM Card size for IOT-R32W and IOT-R32L

SIM Card size for IOT-R32W and IOT-R32L

IOT-R32W and IOT-R32L use 2FF size MiniSIM cards.

A SIM adapter kit is included with the router so you can adapt your 4FF SIM card to 2FF and fit into the router.

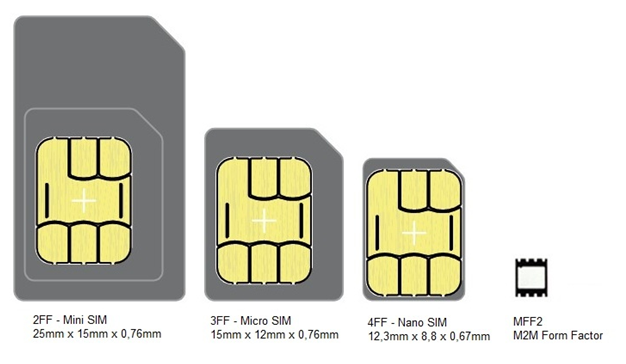

SIM size reference:
1FF: 85.6mm × 53.98mm × 0.76mm
2FF (Mini): 25mm x 15mm x 0.76mm
3FF (Micro): 15mm x 12mm x 0.76mm
4FF (Nano): 12.3mm × 8.8mm × 0.67mm
MFF2 (eSIM): 5mm x 6 mm x 1mm
