Snap Shot setup on IP Camera

Snap Shot setup on IP Camera

(Note: The IP Camera will need a SD Card installed to store and retrieve the snapshot images)

Step 1: Storage  Schedule setting  Capture  Capture Schedule  Setup the schedule time  Save

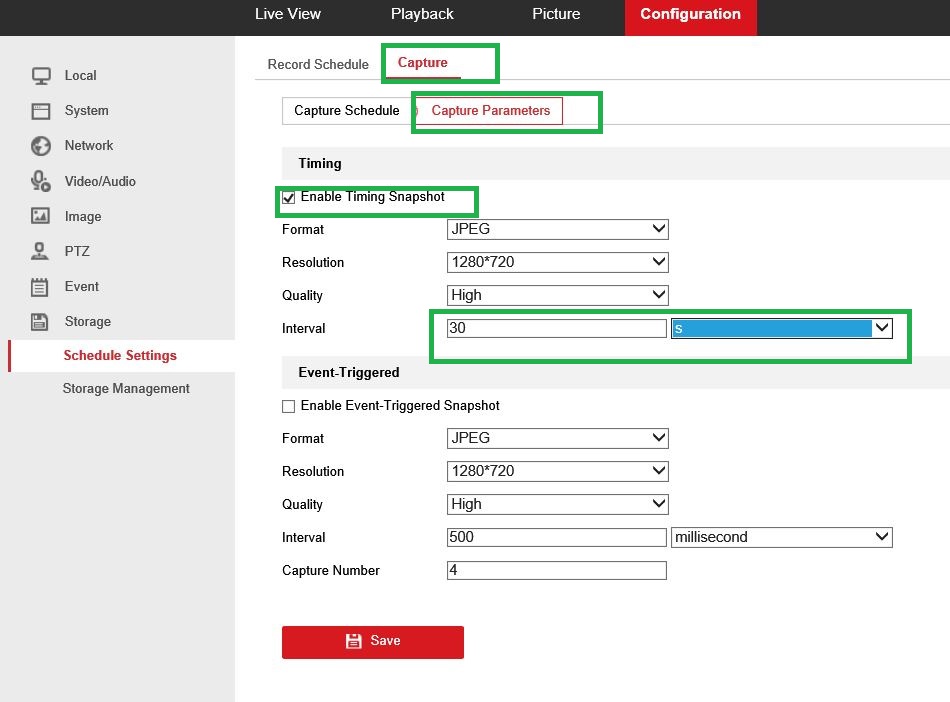

Step 2: Storage  Schedule Setting  Capture  Capture parameters  Check “Enable timing snapshot”  Set the Interval  Save

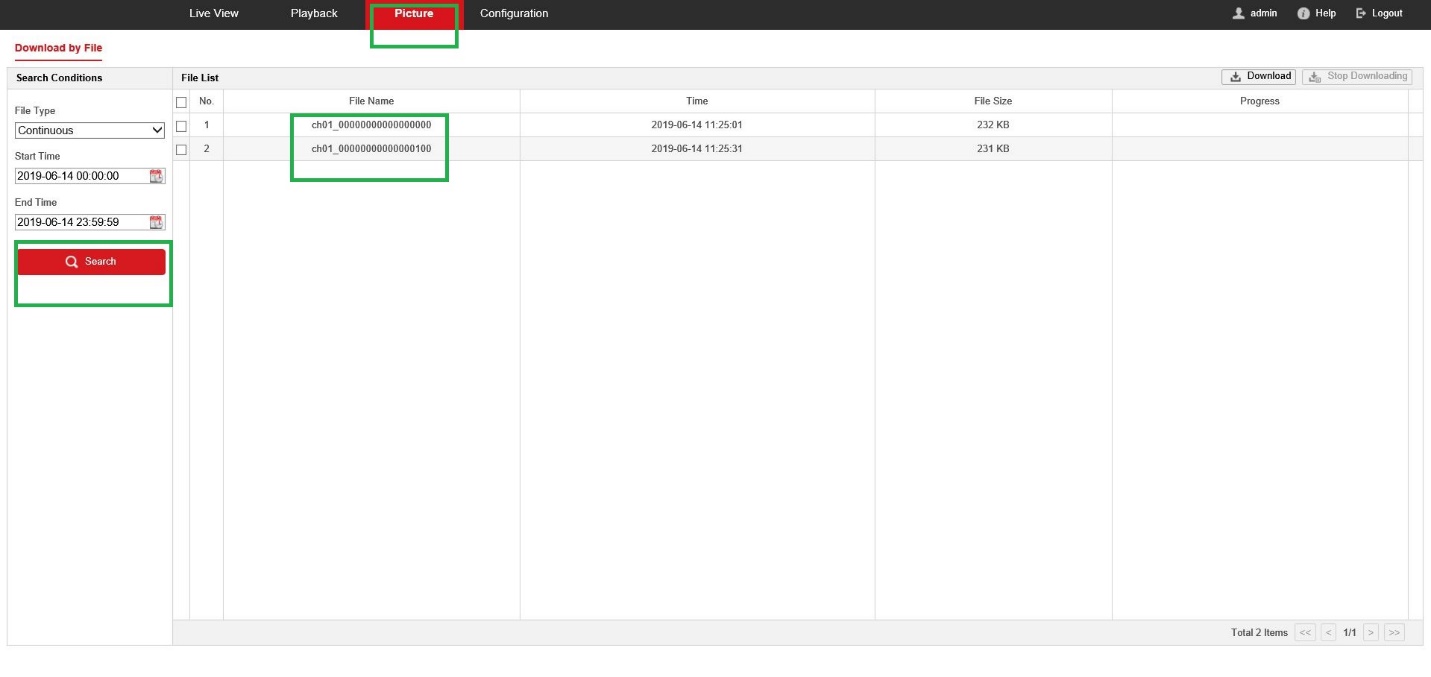

Step 3: Go to Picture   Search  to view the captured file
