Overview

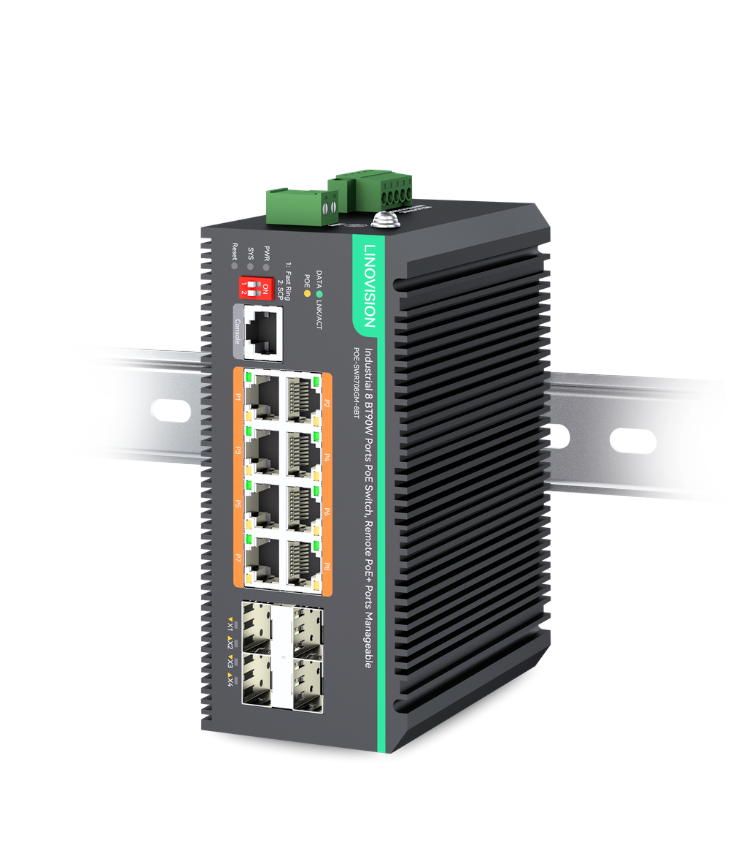

POE-SWR708GM-8BT is an 8-Port 90W PoE++ L2+ switch with 4 SFP uplinks, offering 460W total PoE power. It supports VLAN, static routing, and remote cloud management via Linovision RemoteMonit. Designed for industrial use, it features fanless IP40 housing, -40°C to 75°C operation, and DIN-rail/wall mounting.

User Manual

This document applies to POE-SWR708GM-8BT industrial Switch. Unless otherwise specified, POE-SWR708GM-8BT is used as an example in the product diagram.

Packing List

When using the Switch for the first time, carefully open the packing box. The packing box should contain the following items:

  1. POE-SWR708GM-8BT *1
  1. User Guide *1
  1. Wall Mounting Accessory *1
  1. DIN-Rail Mounting Accessory *1
  1. Connecting Line *1

Note: Precision devices are built in the device, please handle them carefully to avoid violent vibration, which may affect the performance of the device. If you find that the equipment is damaged or any parts are lost in the process of transportation, please inform us, we will give you a proper solution as soon as possible.



Statement

Product specifications and information mentioned in this manual are for reference only and are subject to change without prior notice. Unless otherwise agreed, this manual is for use only and does not constitute any form of warranty.



Convention

The product pictures in this document are for illustration only. The number and positions of ports depend on actual models. This document helps you correctly use the Switch. It describes the performance characteristics of the Switch and describes how to install the Switch. Read this manual carefully before operating the Switch.

Chapter 1 Introduction To The User Guide

Thank you for purchasing our POE-SWR708GM-8BT Industrial PoE Switch! The device adopts storage and forwarding, fanless, low power consumption design, has the advantages of easy to use, compact and beautiful, simple installation, etc. The product is designed to meet Ethernet standards, with lightning protection, static protection mechanism, operating temperature range of -40°C to 75°C, stable performance, safety and reliability, can be widely used in intelligent transportation, telecommunications, security, financial securities, customs and other broadband data transmission fields.


1.1 Use

This document is intended to help users familiarize themselves with and correctly use POE-SWR708GM-8BT Industrial PoE Switches.

1.2 User Manual Overview

Chapter 1: Introduction To The User Guide.

Chapter 2: Product Introduction.

Chapter 3: Product Appearance Description.

Chapter 4: Installation Guide.

Appendix: Technical Specifications.


Chapter 2 Product Introduction

2.1 Product Overview

POE-SWR708GM-8BT is a ring-network Industrial Managed PoE Switch developed by our company. It provides 8*10/100/1000Mbps adaptive RJ45 ports and 4*1000Mbps SFP slots. Each RJ45 Port supports MDI/MDIX automatic flipping and wire-speed forwarding. Ports 1-8 support PoE power supply. PoE ports automatically detect PD devices and supply power to PD devices that comply with IEEE 802.3af/at/bt standards. Each port has a maximum of 90W.

The equipment support static routing functions, provide perfect security, QoS, and plenty of VLAN function has ring network function, can form a ring network, Switch between by hand in hand form a ring network topology, the redundancy, high reliability characteristics can make in a ring online link disconnected all the way, will not affect the forwarding of data on the network.


2.2 Product Features

  1. Operating temperature: -40°C to 75°C
  2. Low power consumption, fanless design with high-efficiency aluminum alloy shell and heat-dissipation grooves
  3. DIN-rail installation
  4. Industrial-grade components
  5. Supports IEEE 802.3af/at/bt standards
  6. Single-port PoE output up to 90W
  7. Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control
  8. Supports one-key ring network and one-key storm suppression with redundancy design for high reliability
  9. Supports traditional STP/MSTP/RSTP Layer 2 link protection technologies
  10. Supports static and dynamic link aggregation (LACP) to increase bandwidth, enhance link reliability, and enable load balancing and backup
  11. Flexible and convenient management via Console, Telnet, and SSH
  12. Supports web-based management for easy setup and maintenance
  13. Supports file upload and download through TFTP
  14. Dual power inputs for redundant backup, significantly improving power reliability

2.3 Product Advantage

  1. -40°C ~ 75 °C operating temperature design

-40℃~75℃ operating temperature design, selected industrial components, the use of natural heat dissipation, to ensure that the Switch can achieve long-term stable operation within the temperature range, to meet all kinds of use environment.


  1. High energy aluminum alloy roof heat conduction groove shell design

Body size 145*109*62mm, compact and light, full aluminum alloy high energy roof heat conduction groove shell design, better heat dissipation effect.



  1. DIN-Rail installation, simple and flexible

DIN-Rail installation design, easy and quick installation, so that users reduce unnecessary installation time, save time cost.


  1. Select industrial grade components

Chemical nickel gold PCB board, with high corrosion resistance, oxidation resistance. Select high specification capacitor, greatly improve the service life of products.


  1. Supports one-click ring network and one-click storm suppression

Supports one-click loop networks, inhibits broadcast storms, improves network reliability, and strengthens data protection. With strong environmental adaptability and high-speed topology self-healing, it can be widely used in security, monitoring and other scenarios.


  1. Supports WEB management, which is simple and efficient

Provides WEB management functions and supports basic network functions such as 802.1Q VLAN, port monitoring, and port aggregation Yes. You can manage and maintain the network through the WEB UI.


  1. Supports relay alarm function

Support system start-up abnormal and power failure alarm function, if the system start-up or input power abnormal can output alarm signal in time.


Chapter 3 Product Appearance Description

3.1 Front Panel

The front panel consists of 8*10/100/1000Mbps adaptive RJ45 ports and 4*1000Mbps SFP slots and related indicators, as shown below:

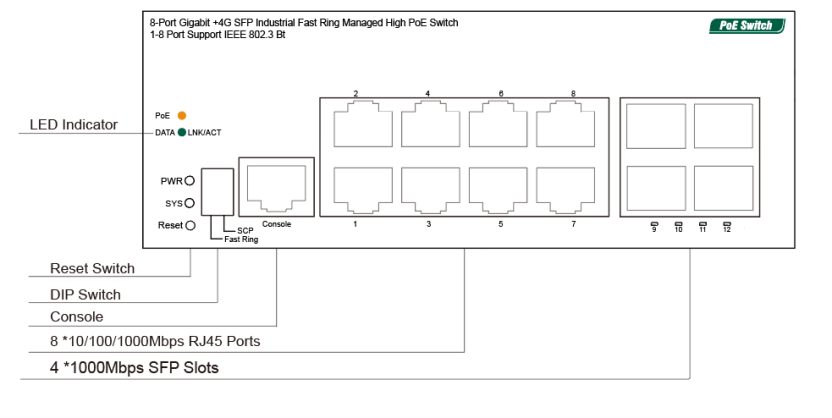

Figure 3-1 Front panel of the POE-SWR708GM-8BT Switch



POE-SWR708GM-8BT Port description:


Console port

The Console port is used to connect to the serial port of a computer or other terminal device for switch management and configuration.


SCP

One-touch broadcast storm suppression: limits broadcast, unicast, and multicast packets to a certain rate.


Fast Ring

To enable the ERPS function, set the last two SFP slots as the sub-network ports of the ring network.


3.2 LED Indicator

The LED indicators of the Switch are shown in the following table. Users can monitor the work and running status of the Switch conveniently and quickly through the following indicators:


LED

Color

Function

PWR

Green

Off:  No Power supply.

Light: Indicates the Switch has power.

DATA

Green

Off:  No device is connected to the corresponding port.

Light: Indicates the link through that port is successfully

     established at 10/100/1000Mbps.

Blink: Indicates that the Switch is actively sending or

     receiving data over that port.

PoE

Orange

Off:  No PoE powered device (PD) connected.

Light: There is a PoE PD connected to be port, which

     supply power successfully.

Blink: Indicates port abnormal PoE supply.

SYS

Green

Blinking: The system is working properly

Off: The system is being started or is abnormal



3.3 Side Plate



Figure 3-2 POE-SWR708GM-8BT Switch side panel

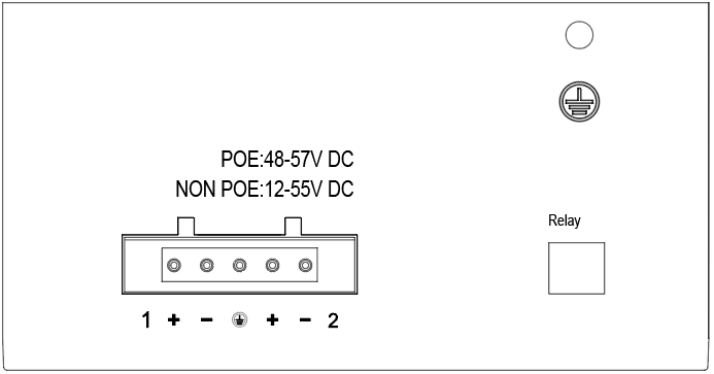

The upper panel of the Switch provides 5-position industrial wiring terminals and power input DC: The standard voltage ranges from 48V to 57V, and the input voltage of two PWR1 and PWR2 power supplies ranges from 48V to 57V. The dc power input of the Switch is redundant. The PWR1 and PWR2 power supplies can be used individually or connected to two independent dc power supply systems. When any power supply system fails, the device can run normally without interruption, which improves the reliability of network operation.

Relay port:Alarm port, support machine abnormal alarm function. This interface needs to be connected to an external alarm device, when the machine starts abnormally or power on abnormal, the internal relay will close, timely output alarm signal, in the circuit has an automatic alarm, safety protection, isolation conversion and other functions

Chapter 4 Installation Guide

This chapter helps users correctly install and safely use Switches.


4.1 Installation Precautions

Precautions: To avoid equipment damage and personal injury, observe the following precautions:

  1. The switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference.
  2. The humidity of the switch equipment room should be 5%–95%. Install proper equipment if possible.
  3. The grounding of the switch shall comply with the grounding requirements described in this manual, and shall be separately and properly grounded.
  4. Keep a proper distance between the switch and other devices. Do not stack other devices on the switch.
  5. The connection cable between the switch and the distribution frame should be standardized and reasonable. The jumper wires in the distribution frame (or box) should be neat and clearly arranged to prevent parallel cable issues.
  6. To avoid the danger of electric shock, do not open the chassis without authorization. If any fault occurs, contact professional maintenance personnel.


      Safety Tips:
  1. Use a three-hole socket with safe grounding, and ensure that the PGND cable of the power socket is reliably grounded.
  2. Ensure sufficient space for heat dissipation and ventilation of the Switch. Do not place heavy objects on the Switch.


4.2 Installation Environment

Before installation, make sure that the proper working environment is available, including power requirements, adequate space, proximity to other equipment to be connected, and other equipment in place. Please confirm the following installation requirements:


  1. Ensure the stability of the workbench and proper grounding.
  2. Check whether the required cables and connectors for installation are available and that cable lengths are less than 100 meters.
  3. The product does not include installation components. Prepare the necessary components based on the selected installation method, such as screws, nuts, and tools, to ensure a secure setup.
  4. Power supply: 48V to 57V DC.
  5. Environment: operating temperature -40°C to 75°C; relative humidity 5% to 95%.

4.3 Installation

Rail mounting

The 45mm standard DIN-Rail installation is very convenient for most industrial applications. The installation steps are as follows:

  1. Check whether the installation accessories for DIN-rail mounting are available (this product includes the necessary accessories).
  2. Check whether the DIN-rail is securely fixed and whether there is a suitable location for installing the product.
  3. Insert the lower part of the product’s DIN-rail mounting clip (with spring support) onto the DIN-rail, then press the upper part into place. Apply slight pressure to ensure the equipment is balanced and securely attached.

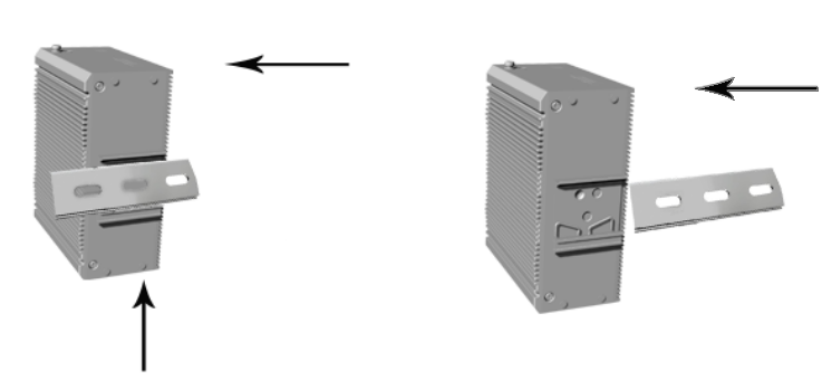

Figure 4-1 Schematic diagram of industrial machine guide rail installation



       Note: Aluminum alloy DIN-Rail hooks have been fixed to the rear panel of the Switch.

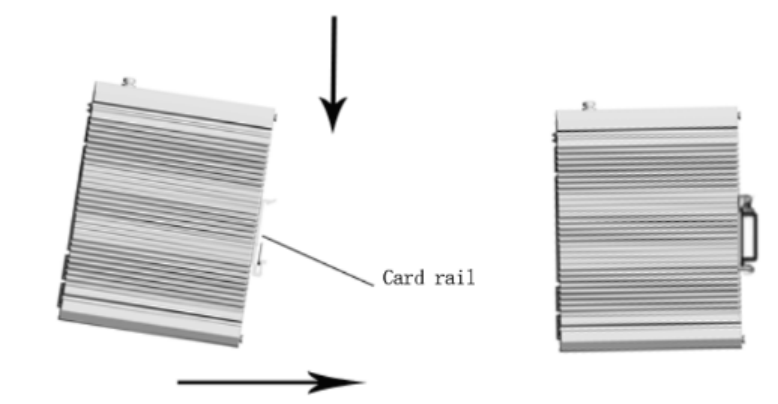

Figure 4-2 Schematic diagram of industrial machine guide rail disassembly




      Power on
  1. Power on: First insert the power terminal of the power cable into the device’s power port, then plug in the power cord and turn on the power. After startup, the switch will automatically initialize. If all port indicators turn on briefly and then turn off, the system has successfully reset. The power LED should remain on.
  1. Power off operation: Unplug the power cord first, then remove the wiring from the terminal. Please follow this sequence to ensure safe operation.



Wall mounted installation

The following describes how to install a Switch on the wall:

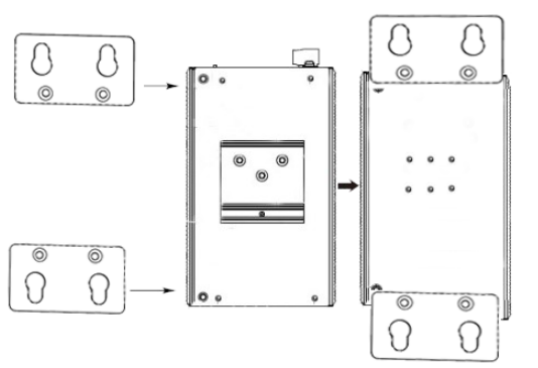

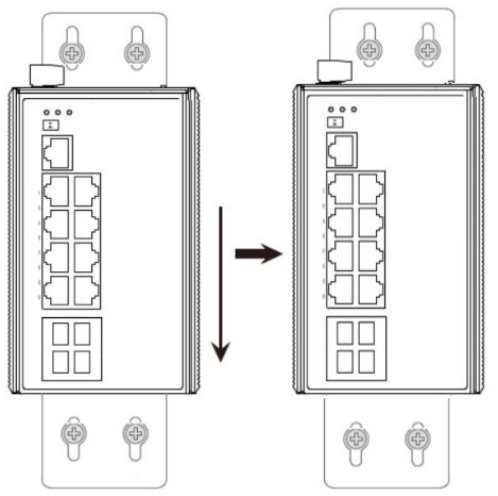

Schematic diagram of wall mounted installation of industrial machine

  1. Remove the DIN-Rail mounting plate on the rear board of the Switch.
  2. Install the wall mounting board on the Switch as shown below.
  3. Four wall screws are required to mount the Switch on the wall, as shown in the figure above.
  4. When fixing the screws to the wall, do not screw the screws into the wall completely. Leave a space of about 2 mm for sliding the wall panel between the wall and the screws.
  5. After securing the screws to the wall, place the four screw heads through most of the keyhole, then place the Switch vertically and tighten the screws to increase stability.

Appendix: Technical Specifications


Mechanical Specs
Dimensions (W*H*D)
145 x 109 x 62 mm (5.71 x 4.29 x 2.44 in)
Weight
1.01 kg (2.22 lb)
Protection Rating
IP40
Material
metal
Installation
Rack-mount/Desktop mount
Interfaces
Power Supply
48-57 VDC
Ethernet Port
8 * 10/100/1000Base-T RJ45 Ports
4 * 1000Base-X SFP Slots
Management port
1 * Console RJ45 Port
Srandard
IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3x、IEEE802.1X、IEEE802.1q、IEEE802.1p、IEEE802.1d、IEEE802.1w、IEEE802.3ad、IEEE802.3af、IEEE802.3at、IEEE802.3bt
PoE
PoE Power Budget
460 W
PoE Outputs
8 * IEEE 802.3bt PoE++ 90 W Ports (Pin 1/2/7/8-, 3/6/4/5+)
Switching Features
Switching Capacity
24 Gbps
Packet Forwarding Rate
17.86 Mpps
MAC Address Table
8 KB
Packet Buffer
4.1Mbit
Jumbo Frame
10 KByte
Watchdog
Support
Environment
Operating Temperature
-40°C to 75°C (-40℉ to 167℉)
Storage Temperature
-40°C to 80°C (-40℉ to 176℉)
Operating Humidity
5% to 90% non-condensing
Storage Humidity
0% to 95% non-condensing
Surge Protection
Differential mode ±2 KV, Common mode ±6 KV
Electrostatic Standard
Contact ±6 KV, Air ±8 KV
MTBF
>100,000 hours
L3 Features
DHCP
DHCP/DHCPv6 Server
Route
IPV4/IPV6 Static Routing
Route Aggregation
L2 Features
VLAN
Up to 4,093 VLANs Simultaneously
802.1Q tag-based VLAN
Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
IP subnet-based VLAN
Voice VLAN
Private VLAN
Guest VLAN
QinQ/Selective-QinQ/Flexible QinQ
GVRP/GMRP
IGMP
IGMP Snooping V1/V2/V3
IGMP Proxy
Loop Detection
Loopback Detection of STP
ERPS
Spanning Tree Protocol
STP/RSTP/MSTP
MSTP 64 instance
BPDU Guard/Root Guard/BPDU Tunnel
PoE Management
PoE On/Off Control
PoE Budget Config
PD Alive Detection
Time Schedule PoE
QoS
Priority Levels
8 Hardware queues
Scheduling
SP/WRR/WDRR Queue Scheduling Algorithm
Class of Services
Based on Port
Based on IEEE 802.1p VLAN Priority
IPv4/IPv6 IP/DSCP precedence
Security
IEEE 802.1X
Port access control
Mac-address access control
RADIUS/TACACS+
Standard Protocol
Storm Control
Defend Broadcast, Multicast & Unknown unicast
DoS Prevention
Deny DoS Attack
SSL
OpenSSL 1.1.0
IEEE 802.1X
Port access control
Mac-address access control
ARP
Static ARP
ARP Scanning Prevention
ARP Spoofing Prevention
ARP Guard
Gratuitous ARP
Dynamic ARP Inspection
ARP Quantity Control
ACL
IP-based ACL
MAC-based ACL
Time-based ACL
VLAN-based ACL
User defined ACL
Management
Web GUI
Easy Browser-based Device Configuration
SNMP
SNMP V1/V2c/V3
SNMP Trap
CLOUD Management
LINOVISION RemoteMonit Platform
CLI management
Console/Telnet /SSH
File Management
HTTP/FTP/TFTP
