POE-SW804G-SOLAR 4 Ports MPPT Solar PoE Switch
Overview
POE-SW804G-SOLAR is an industrial solar-powered PoE switch combining a high-efficiency MPPT solar charge controller and a 5-port full Gigabit PoE switch. It directly connects to solar panels and batteries to deliver continuous PoE power for IP cameras, wireless bridges, and other devices. Featuring 99% MPPT tracking efficiency, smart battery management, RS485 remote monitoring, and a 120W PoE budget (at 24V), it supports 12V/24V systems and multiple battery types. With robust protections, MC4/XT60 connectors, fanless IP40 housing, and wide temperature tolerance, it’s ideal for off-grid deployments.User Manual
Datasheet
POE-SW804G-SOLAR
4 Ports MPPT Solar PoE Switch for Security Cameras and IoT Devices
Outstanding Features
- Solar PoE Switch: Industrial PoE Switch with built-in MPPT solar charge controller, working directly
with PV solar panels (Max. 300W) and batteries to supply non-stop PoE power for security cameras,
Wireless bridges, LED lights, etc.
- Smart Battery Management: Local battery status LED indicator and remotely battery management,
compatible to battery types (Lead Acid, Gel, AGM, Lithium, LiFePO4 Lithium, etc. ). Automatically
detects 12V or 24V DC system voltages (for Non-Lithium battery types). 10A output current.
- 99% Efficient Charging: MPPT (Maximum Power Point Tracker) charging technology with up to 99%
tracking efficiency and 98% peak PV conversion efficiency. It is much better than traditional PWM
controllers, especially in cloudy days.
- 5-Port Full Gigabit PoE Switch: Provide 4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink; All ports
10/100/1000Mbps self-adaptive full duplex; Total POE budget is 120W@24V or 60W@12V.
- Remote Monitoring via RS485: Supports RS485 ModBus for remote monitor and control, enabling you
to monitor the status of your solar panels/solar trailers/solar powered cameras on the go. It can be
managed in Linovision RemoteMonit Cloud Platform (bundle with IOT-C101 or IOT-R51W Gateway).
Specification
Mechanical | |
| Model | POE-SW804G-SOLAR |
| Enclosure Material | Aluminium |
| Weight | 1.34 lb (0.61 kg) |
| Dimension | 4.13*4.13*2.16" (105*105*55mm) |
| Storage Temperature | -40°F to 185°F (-40°C to +85°C) |
| Operating Temperature | -40°F to 131°F (-40°C to +55°C) |
| Relative Humidity | 5% to 95% non-condensing |
Ethernet | |
| MAC Address Table | 8K |
| Packet Buffer | 1Mbits |
| Packet Length | 10Kbytes |
| Switching Capacity | 10Gbps |
| PoE Standard | IEEE 802.3 af/at |
| PoE Mode | Mode B |
| PoE Budget | 60W (12V System Voltage) 120W (24V System Voltage) |
Solar | |
| Charging Mode | Max Power Point Tracking |
| Battery Type | Lead Acid, Gel, AGM, Lithium, LiFePO4 Lithium, etc (Default set to 4s LiFePO4 Lithium, Voltage 11.2V ~ 14.4V) |
| MAX PV Panel Output Power | 170W (12V System Voltage) 340W (24V System Voltage) |
| MAX PV Panel Open Circuit Voltage | 30V (12V System Voltage) 60V (24V System Voltage) |
| MAX Charging Current | 10A |
| Discharge Mode | Manually, Day/Night Auto Switch, Schedule |
| Output Voltage | Battery Voltage |
| Max Output Current | 5A |
| Typical Efficiency | >98% |
| Self Consumption | <1.2W |

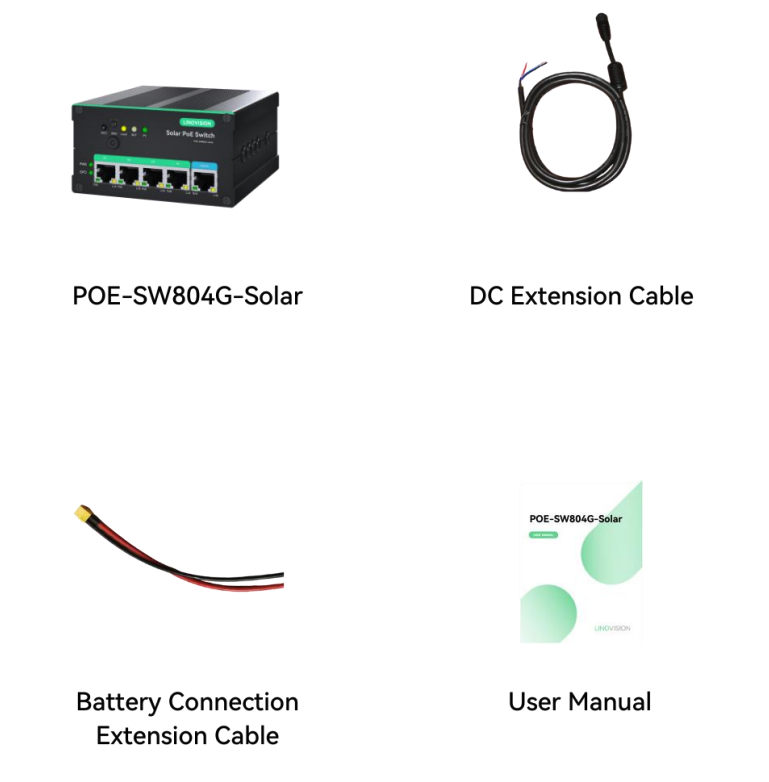

Package contents
Interface
Dimension

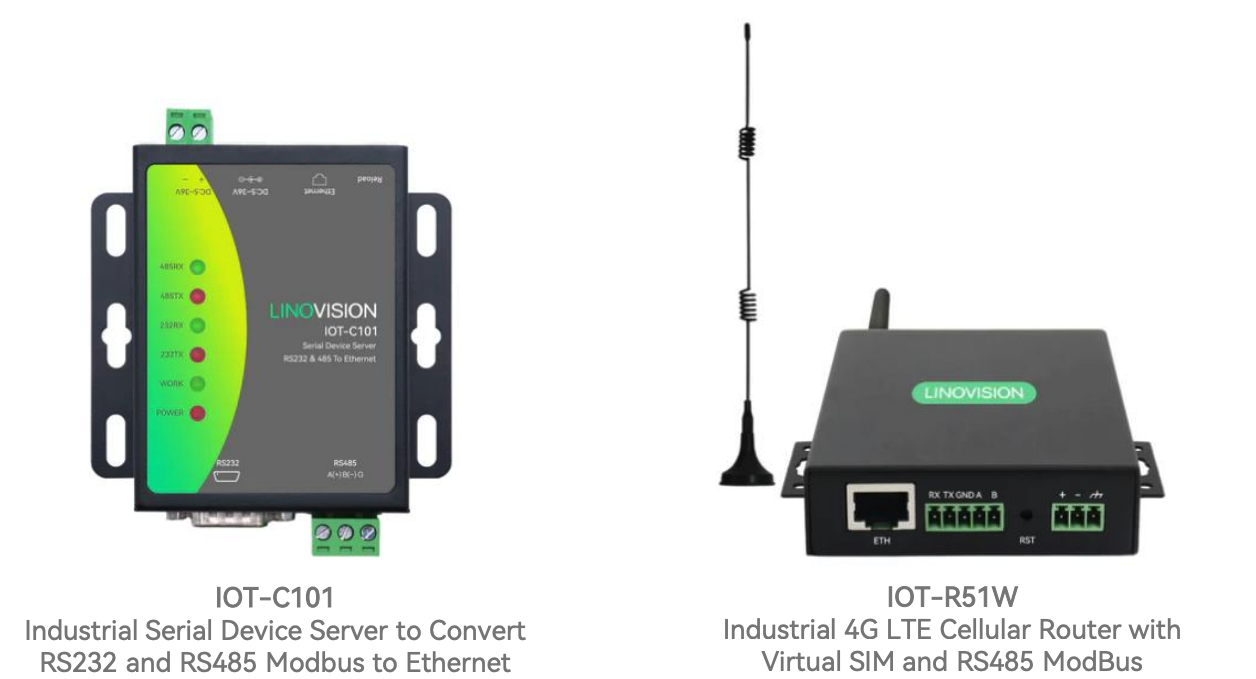

Recommended bundles for remote management
Linovision RemoteMonit CLOUD
User Manual
1.Products Introduction
1.1 Products Description
POE-SW804G-SOLAR series MPPT solar controller employs maximum power point tracking (MPPT) technology to achieve real-time optimization of the solar panel's operating point, thereby maximizing the power transfer from the photovoltaic (PV) system to the battery. This significantly enhances PV charging efficiency. The controller's precise regulation of charging current and voltage makes it particularly suitable for lithium battery charging applications, especially in small off-grid solar power systems.
Additionally, the controller offers multiple operation modes, including automatic, light-controlled, and manual modes, as well as a test mode designed for engineering installation and commissioning.
1.2 Main Features
1. MPPT Technology Compatible with Gel, AGM, Lithium, and Other Battery Types
2. Peak Conversion Efficiency Reaches up to 98%
3. High Tracking Efficiency of 99%
4. Automatic 12V/24V System Detection
5. Time-Based Load Control with Timer and Dimmer Functionality
6. Maximum Output Efficiency of 96%
7. Aluminum Housing for Enhanced Cooling Performance
8. Optional Motion Sensor Functionality
2. Peak Conversion Efficiency Reaches up to 98%
3. High Tracking Efficiency of 99%
4. Automatic 12V/24V System Detection
5. Time-Based Load Control with Timer and Dimmer Functionality
6. Maximum Output Efficiency of 96%
7. Aluminum Housing for Enhanced Cooling Performance
8. Optional Motion Sensor Functionality
1.3 Technical Parameters
Mechanical | |
Model | POE-SW804G-SOLAR |
Enclosure Material | Aluminium |
Weight | 1.34 lb (0.61 kg) |
Dimension | 4.13*4.13*2.16" (105*105*55mm) |
Storage Temperature | -40°F to 185°F (-40°C to +85°C) |
Operating Temperature | -40°F to 131°F (-40°C to +55°C) |
Relative Humidity | 5% to 95% non-condensing |
Ethernet | |
MAC Address Table | 8K |
Packet Buffer | 1Mbits |
Packet Length | 10Kbytes |
Switching Capacity | 10Gbps |
PoE Standard | IEEE 802.3 af/at |
PoE Mode | Mode B |
PoE Budget | 60W (12V System Voltage) 120W (24V System Voltage) |
Solar | |
Charging Mode | Max Power Point Tracking |
Battery Type | Lead Acid, Gel, AGM, Lithium, LiFePO4 Lithium, etc (Default set to 4s LiFePO4 Lithium, Voltage 11.2V ~ 14.4V) |
MAX PV Panel Output Power | 170W (12V System Voltage) 340W (24V System Voltage) |
MAX PV Panel Open Circuit Voltage | 30V (12V System Voltage) 60V (24V System Voltage) |
MAX Charging Current | 10A |
Discharge Mode | Manually, Day/Night Auto Switch, Schedule |
Output Voltage | Battery Voltage |
Max Output Current | 5A |
Typical Efficiency | >98% |
Self Consumption | <1.2W |

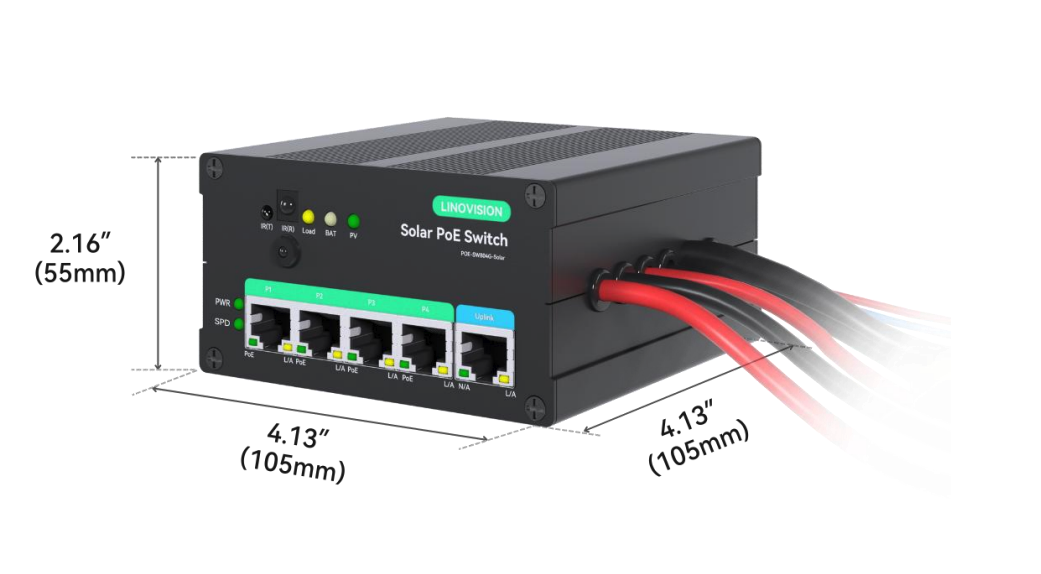

1.4 Dimension

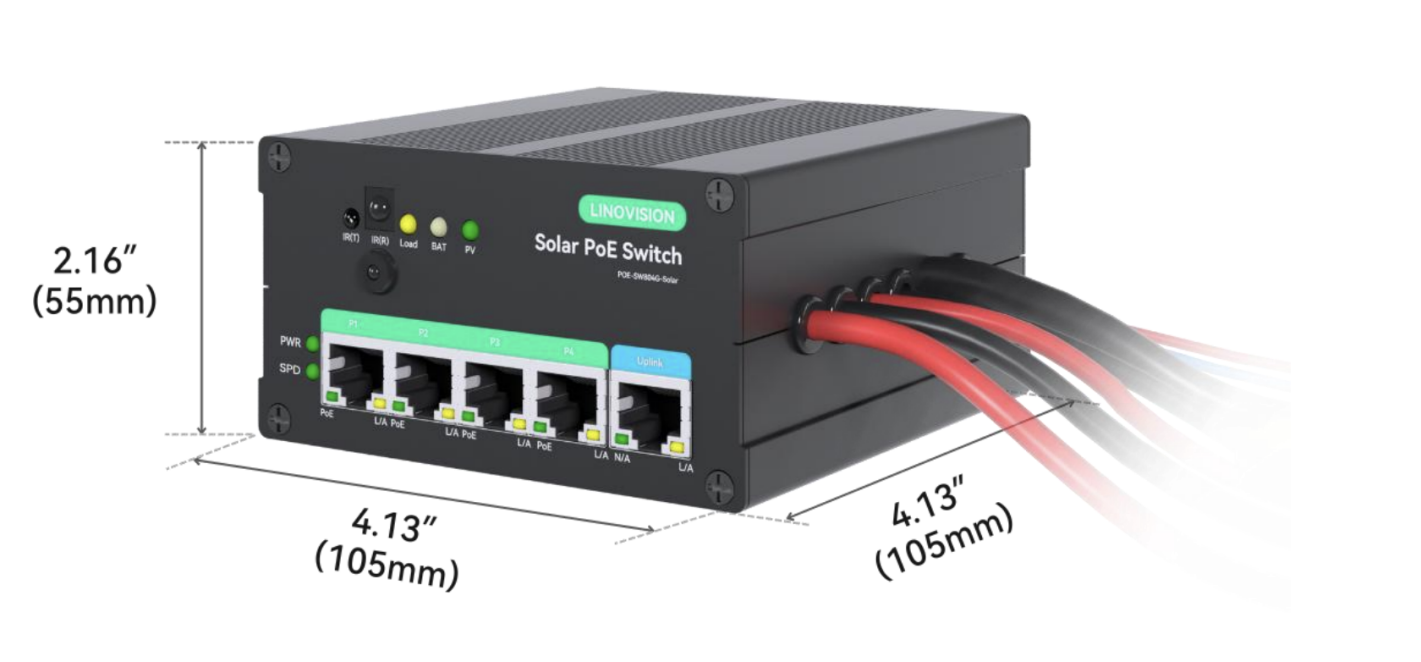

Figure 1.4 POE-804G-SOLAR appearance
2. Installation
2.1 Panel Installation

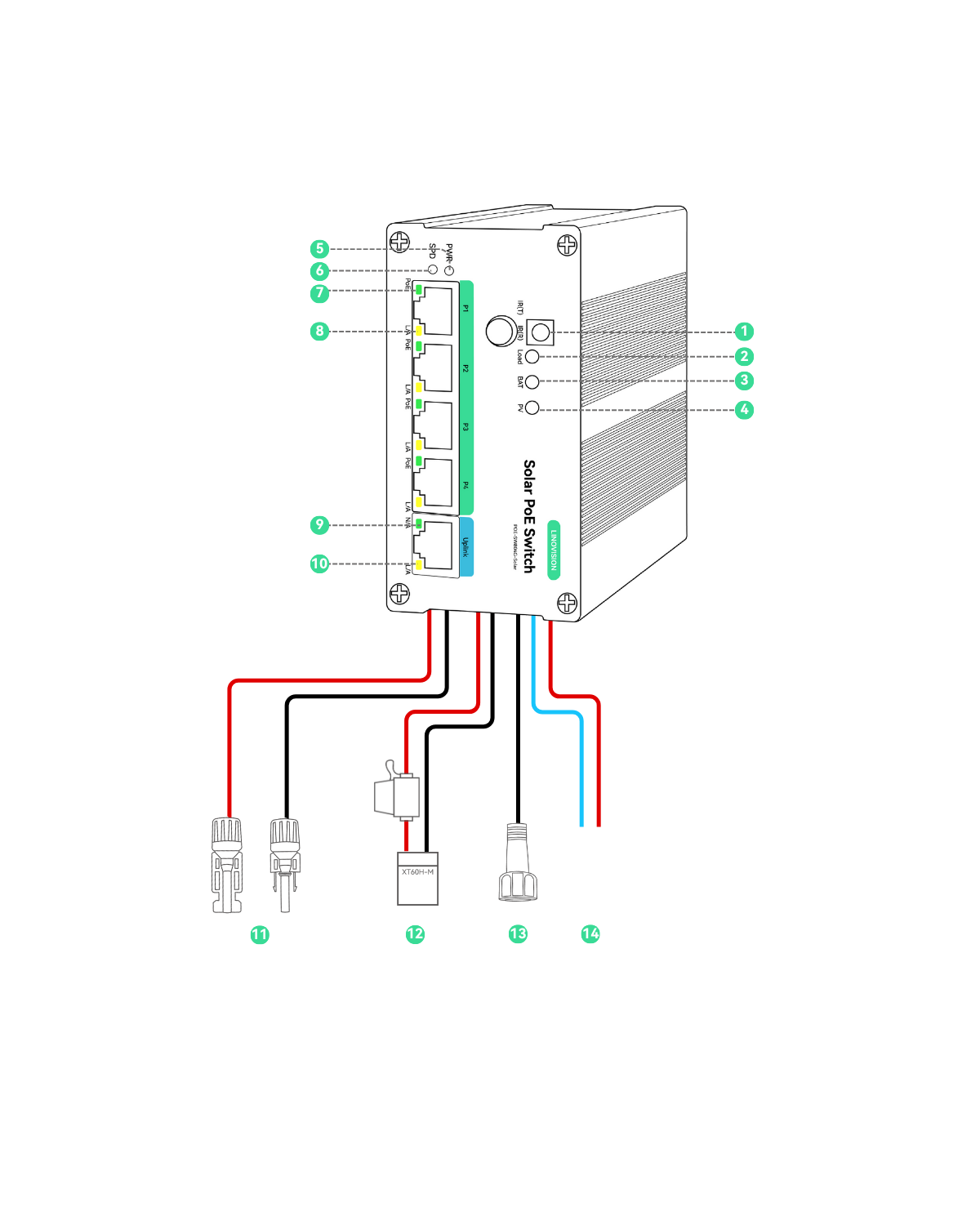

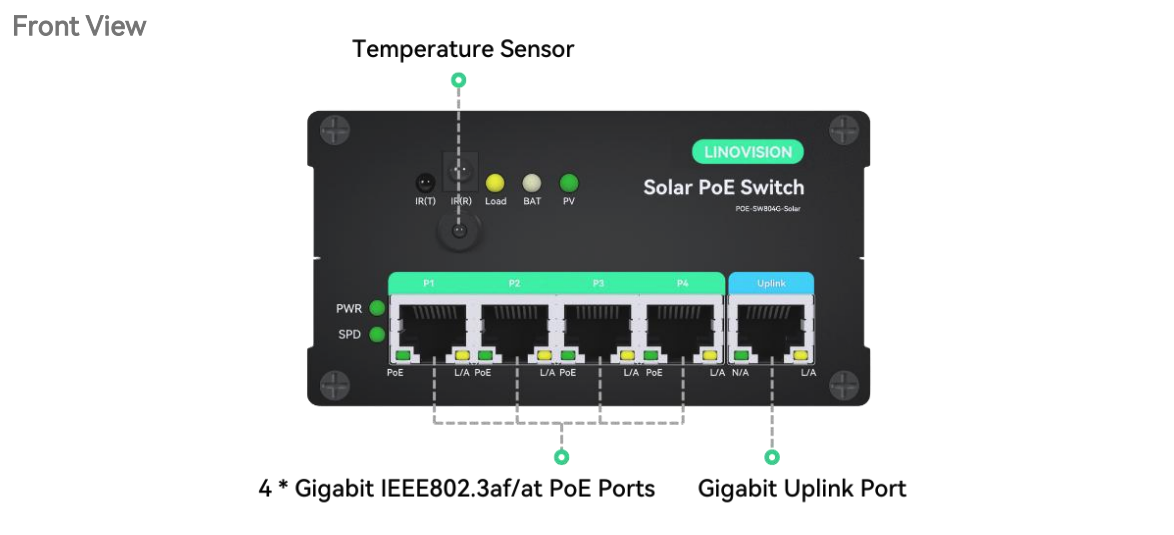

①IR communication connector ②Load indicator (yellow) ③Battery indicator (red/green) ④ PV indicator (green) ⑤Power indicator ⑥Data rate indicator ⑦PoE indicator (PoE port) ⑧Link/Activity indicator (PoE port) ⑨Not Available / Not Active (Uplink) ⑩Link/Activity indicator (Uplink) ⑪PV connection terminal ⑫ Battery connection terminal ⑬Load connection terminal ⑭RS485 connection terminal
2.2 LED Indicators
A. PV Indicator
Color | Indication | Working State |
Green | On Solid | PV is charging Battery |
Green | Flash Fast | Battery Over Voltage,refer to Trouble shooting. |
--- | OFF | PV voltage is low |
B. Battery Indicator
Color | Indication | Working State |
Green | On Solid | Battery is Normal |
Green | Flash | Battery is full |
Yellow | On Solid | Battery is under voltage |
Red | On Solid | Battery is over-discharged, turn off Load auto |
C. Load Indicator
Color | Indication | Working State |
Yellow | On Solid | Load is ON |
-- | OFF | Load is off |
Yellow | Flash Fast | Load short circuit or open circuit |
Yellow | Flash Slow | Load string number is too low Or overload limited power output |
2.3 Installation of the Controller
Install the controller in a location free from direct sunlight, high temperatures, and risk of immersion. Pay special attention to the radiator beneath the device, which is designed to reduce the operating temperature during full-power operation. Ensure that no obstructions impede heat dissipation, allowing for effective cooling through natural convection. For installations in confined spaces, such as lamp posts, orient the radiator fins along the airflow direction to optimize heat dissipation.

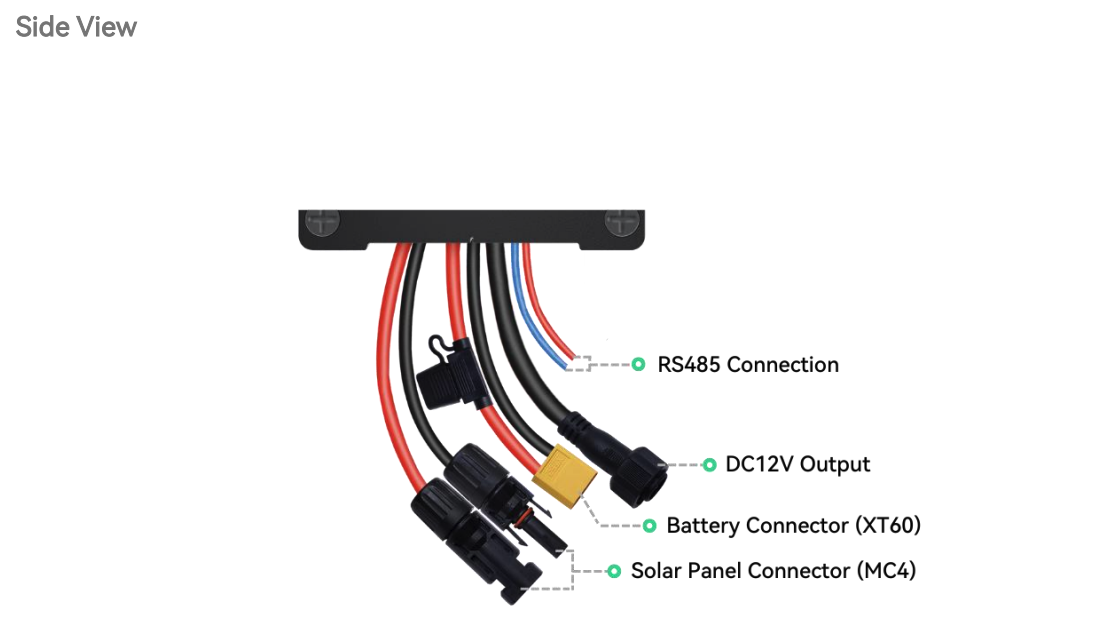

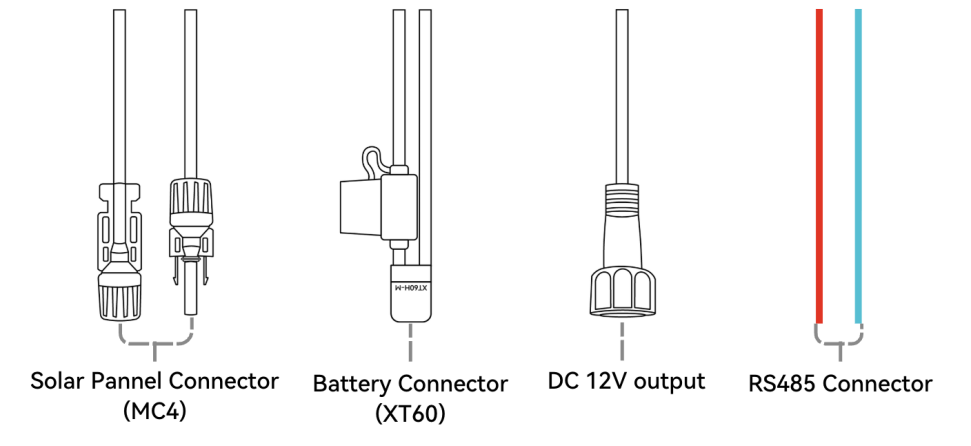

2.5 Solar Interface

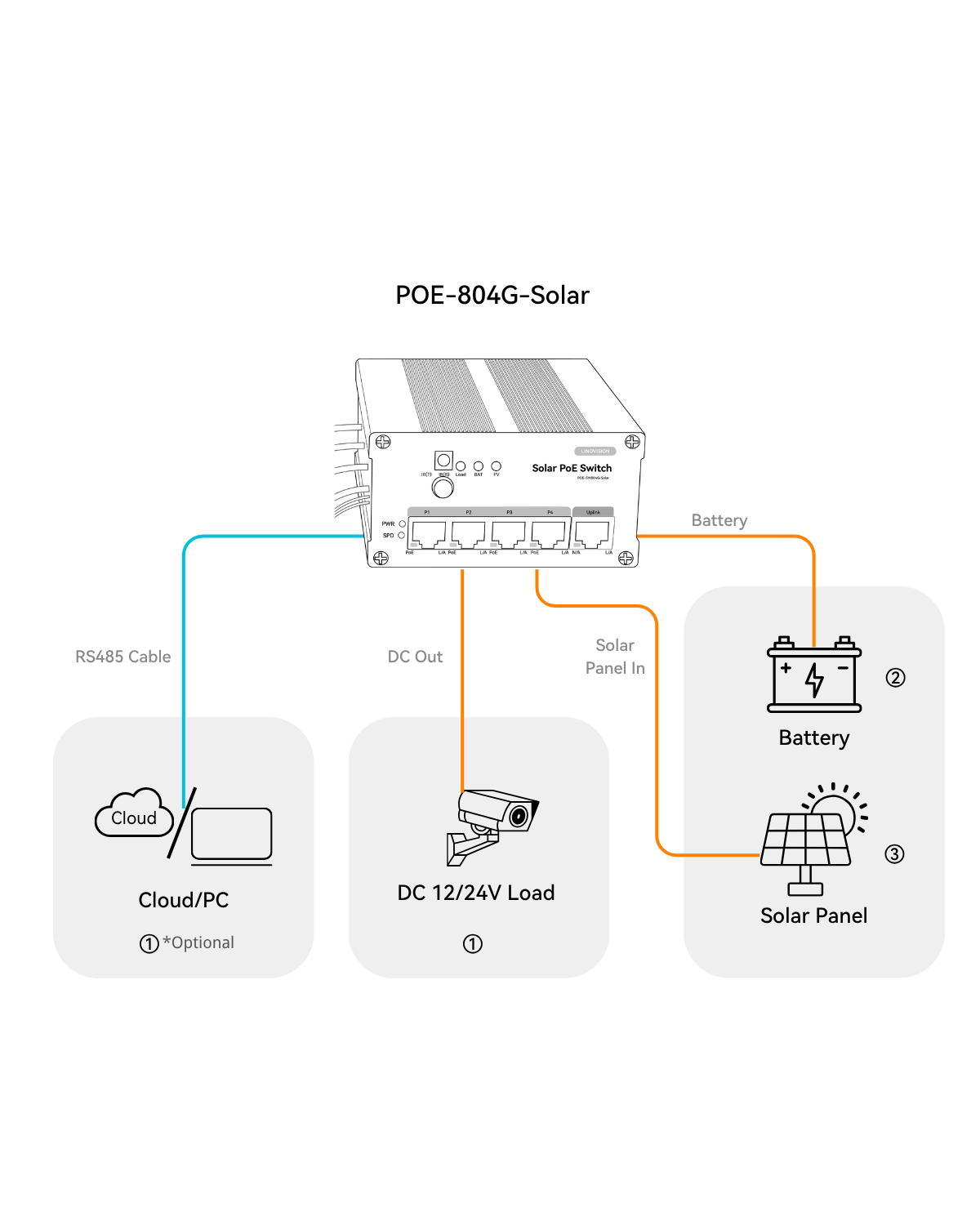

2.6 Connection Steps
For safety reasons, please complete the wiring in the following order:
1. Load Connection
2. Battery Connection
3. Solar Panel Connection

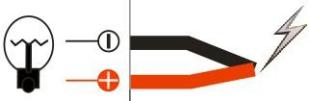

1. Load Connection:
As the controller has not yet started operation, there will be no response from the controller after connecting the load.
2. Battery Connection:
Before connecting the battery, ensure that the battery voltage is higher than 9V to initiate controller operation. For a 24V system, ensure the battery voltage is not lower than 18V. After completing the battery connection, the controller will start working. Approximately 10 seconds later, the load will automatically turn on to confirm correct wiring.
3. Solar Panel Connection:
The controller supports both standard 12V and 24V solar panel components, as well as those with an open-circuit input voltage not exceeding the specified maximum input voltage. Ensure that the voltage at the highest power point of the solar panels is not lower than the battery voltage.
1. Load Connection
2. Battery Connection
3. Solar Panel Connection
1. Load Connection:
As the controller has not yet started operation, there will be no response from the controller after connecting the load.
2. Battery Connection:
Before connecting the battery, ensure that the battery voltage is higher than 9V to initiate controller operation. For a 24V system, ensure the battery voltage is not lower than 18V. After completing the battery connection, the controller will start working. Approximately 10 seconds later, the load will automatically turn on to confirm correct wiring.
3. Solar Panel Connection:
The controller supports both standard 12V and 24V solar panel components, as well as those with an open-circuit input voltage not exceeding the specified maximum input voltage. Ensure that the voltage at the highest power point of the solar panels is not lower than the battery voltage.
*If your battery type is not a 12V LiFePO₄ battery, please complete step ② and then refer to the instructions below under "Battery Type Set Up" before step ③ connecting the solar panel.
2.7 Battery Type Set Up
If you are using a battery other than a 12V LiFePO₄, configuration is required via a RS485 to USB cable (sold separately) and software on your PC. Please follow the steps below:
Download and install the Linovision PC configuration software "LINOVISION Tool Box" from the link provided.

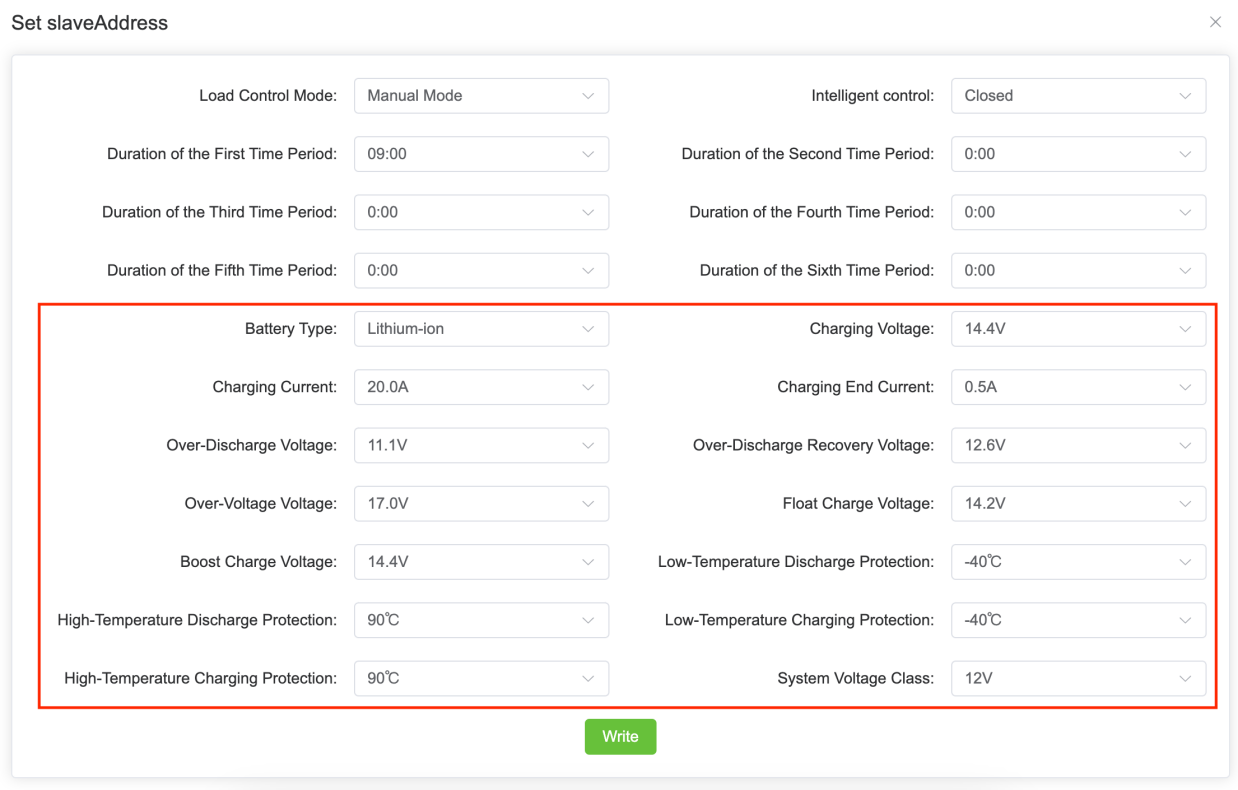

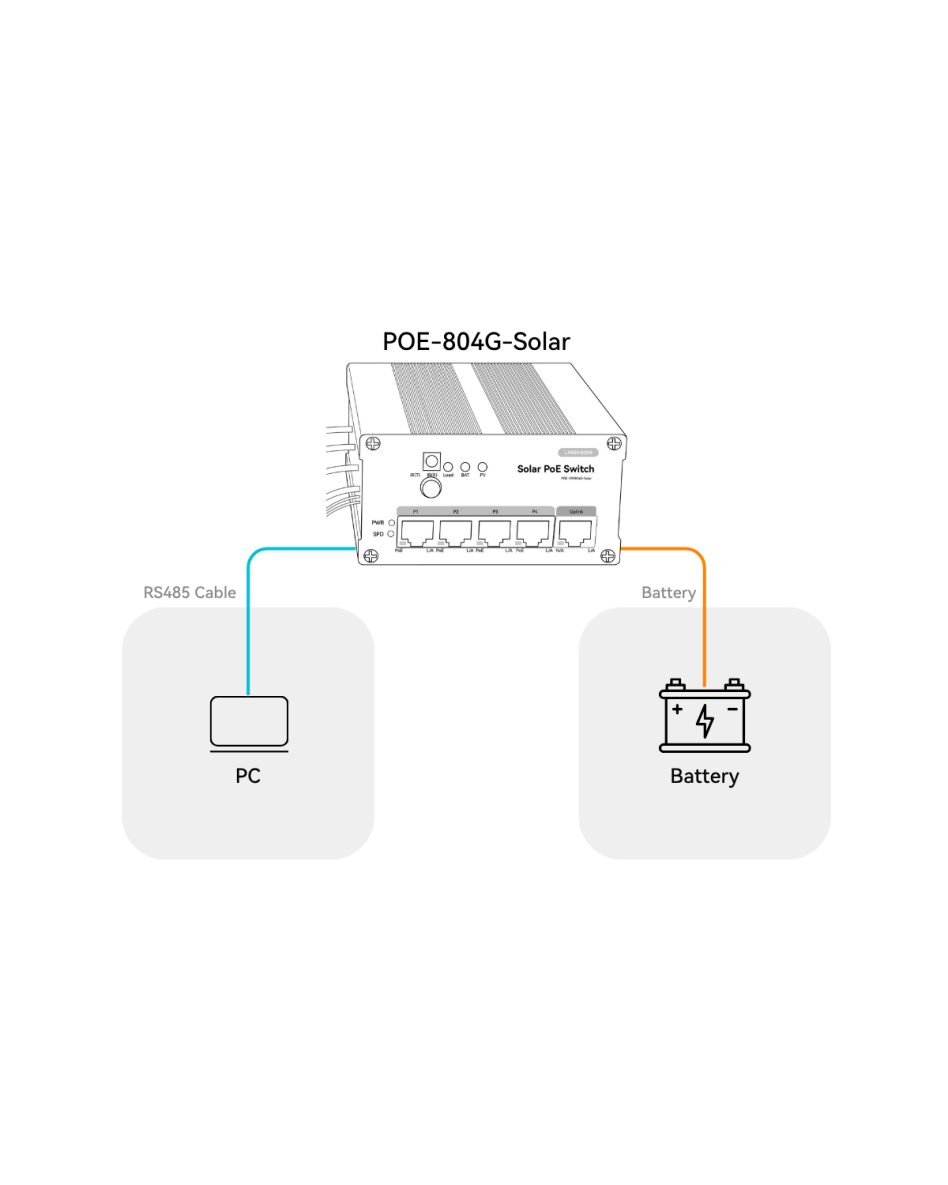

Connect the RS485 to USB cable, Red wire to terminal A, Blue wire to terminal B. Plug the USB end into your PC, then connect the XT60 interface to the battery.

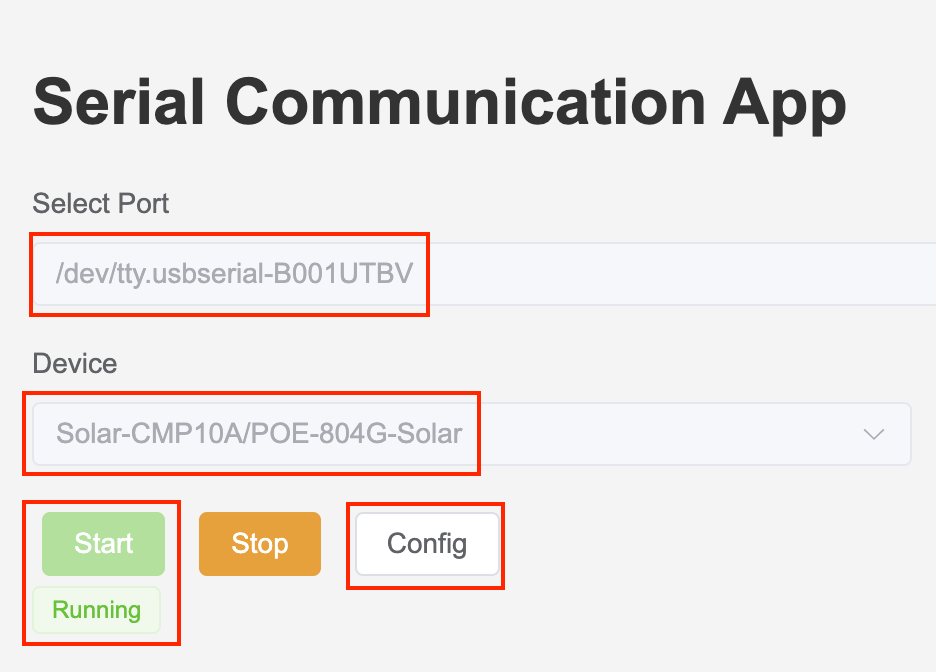

Run the "LINOVISION Tool Box". Select the corresponding port. Set the device model to Solar-CMP10A/POE-804G-Solar, then click "Start" and "Config" to enter the configuration interface.
*If you need to manually configure a 24V battery, please fill in each parameter as if for a 12V system and set the system voltage level to 24V — the system will automatically double the values during actual operation.
2.8 Battery Type Set Up Reference
For gel and lead-acid batteries, the POE-SW804G-SOLAR controller comes with built-in charge curves and 12V/24V auto-detection so only battery type selection is needed.
For LiFePO₄ and NMC batteries, configuration must be done according to the actual battery specifications. The 24V information is for reference only. When filling in the parameters, you should still enter values based on a 12V system and only change the system voltage level to 24V.
Parameter | 12V LiFePO₄ (4S) | 24V LiFePO₄ (8S) | 12V NMC (3S) | 24V NMC (7S) |
Charging Voltage | 14.4V | 28.8V | 12.6V | 29.4V |
Charging Current | 10.0A | 10.0A | 10.0A | 10.0A |
Charging End Current | 0.5A | 0.5A | 0.5A | 0.5A |
Over-Discharge Voltage | 11.2V | 22.4V | 9.0V | 21.0V |
Over-Discharge Recovery Voltage | 12.3V | 23.6V | 9.9V | 22.2V |
Over-Voltage Voltage | 15.0V | 30.0V | 13.0V | 30.8V |
Float Charge Voltage | 14.2V | 28.4V | 12.3V | 28.7V |
Boost Charge Voltage | 14.4V | 28.8V | 12.6V | 29.4V |
High-Temperature Charge Protection | 55°C | 55°C | 50°C | 50°C |
High-Temperature Discharge Protection | 60°C | 60°C | 60°C | 60°C |
Low-Temperature Charge Protection | 0°C | 0°C | 0°C | 0°C |
Low-Temperature Discharge Protection | -20°C | -20°C | -20°C | -20°C |
Symptom | Possible Cause | Corrective Action |
PV status indicator LED is off in daylight; load lamp switches on in daylight; load lamp operates for only one night | Photovoltaic module wiring incorrect | Verify and correct the photovoltaic module wiring |
Load status indicator LED flashes rapidly; load lamp does not illuminate | Load lamp wiring short-circuited or open-circuited; load lamp defective | Inspect and repair the load lamp wiring; replace the lamp if necessary |
Load status indicator LED flashes rapidly; load lamp flickers | The load lamp turns off immediately after lighting, and the load status indicator LED flashes rapidly | Adjust the consumption of load lamp to the range specified in the controller datasheet |
Load status indicator LED flashes slowly | Load power exceeds the controller’s rated capacity | Reduce the output current to within the controller’s rating |
BAT status indicator LED is red; lighting duration is insufficient | Battery deeply discharged; excessive cable resistance; battery damaged | Confirm proper charging conditions and remove any shading of the photovoltaic module; shorten or tighten battery cables; replace the battery if required |
2.9 Cloud Connection

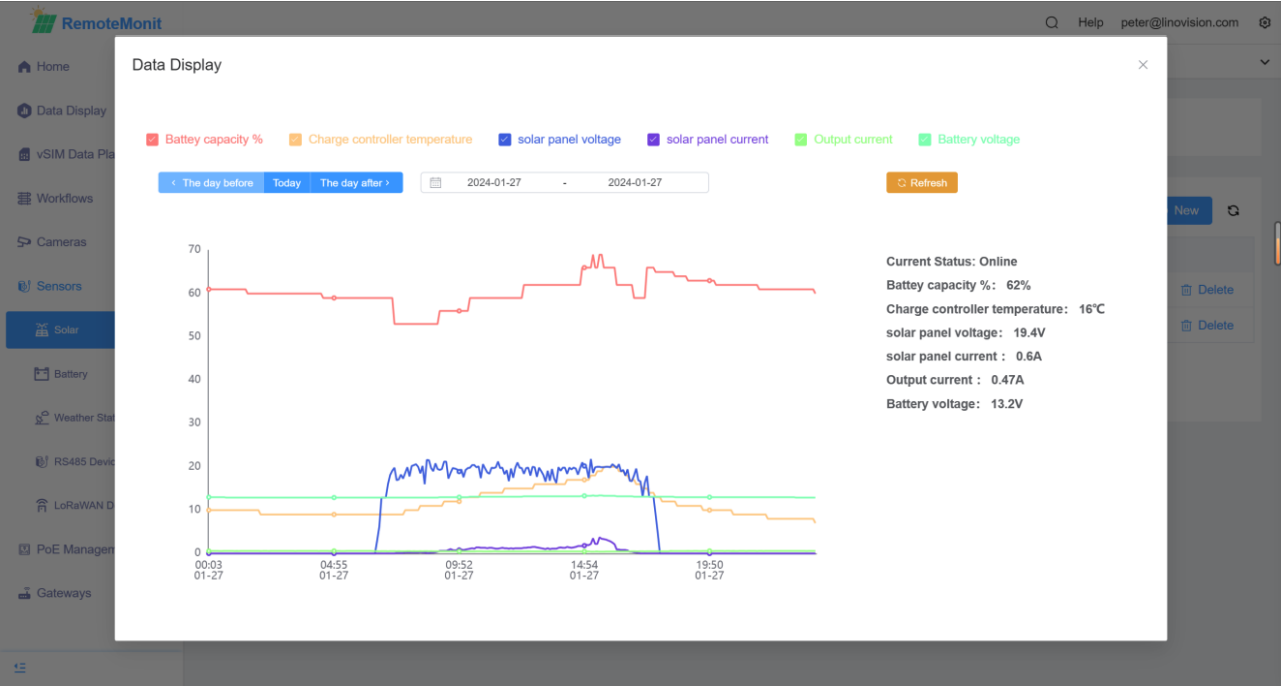

The POE-804G-SOLAR can be used with a gateway to enable data monitoring on the cloud platform. For details, please refer to the link below.
3. Instruction
3.1 Charge Description

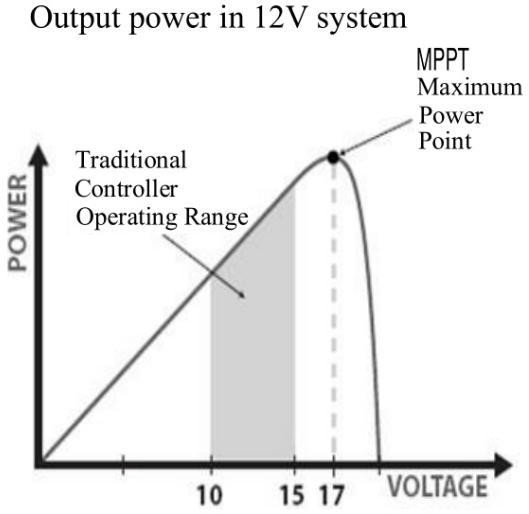

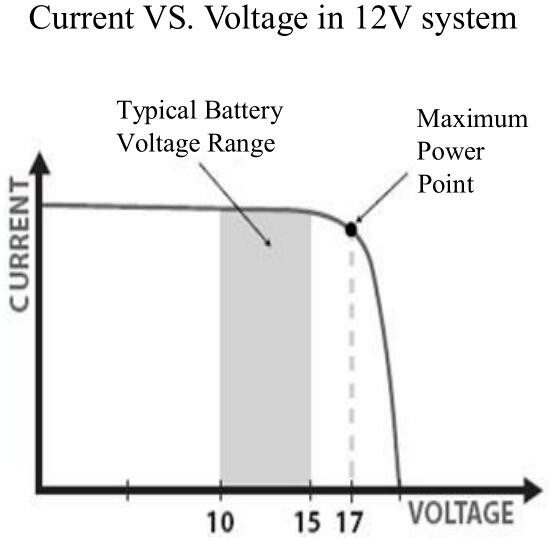

The controller employs Maximum Power Point Tracking (MPPT) technology to extract the maximum power from the solar modules. The tracking algorithm is fully automatic and requires no user adjustment. MPPT technology continuously tracks the array's maximum power point voltage (Vmp), which varies with weather conditions, ensuring optimal power harvesting throughout the day.
Charging of Lead-Acid or Gel Batteries:
The controller manages battery charging according to predefined charging profiles for different types of cells. If the cell type configured in the controller is lead-acid or gel battery, the entire charging process consists of three stages: fast charge, equalization charge, and float charge.
The controller manages battery charging according to predefined charging profiles for different types of cells. If the cell type configured in the controller is lead-acid or gel battery, the entire charging process consists of three stages: fast charge, equalization charge, and float charge.

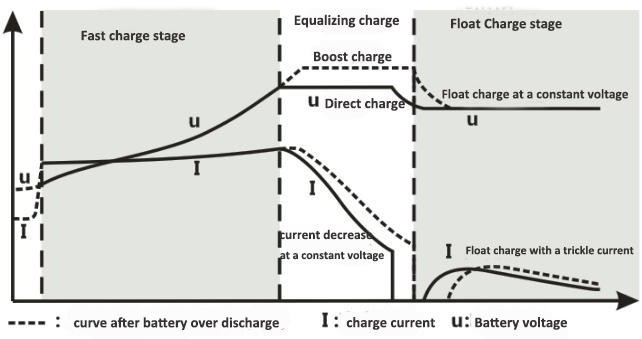

3.1.1 Lead Acid or Gel battery
a. Trickle Pre-Charge Stage:
At the beginning of the charging process, if the battery voltage is too low, the controller initiates a trickle pre-charge stage to protect the battery from damage caused by high current impacts. During this stage, the controller charges the battery with a small current. Once the battery voltage has sufficiently improved, the controller transitions to the fast charge stage.
At the beginning of the charging process, if the battery voltage is too low, the controller initiates a trickle pre-charge stage to protect the battery from damage caused by high current impacts. During this stage, the controller charges the battery with a small current. Once the battery voltage has sufficiently improved, the controller transitions to the fast charge stage.
b. Fast Charge Stage:
When the battery voltage has not yet reached the set threshold, the controller provides maximum solar power to charge the battery. During the fast charge stage, the solar panel and battery are directly connected, with the solar panel voltage clamped at the battery voltage.
When the battery voltage has not yet reached the set threshold, the controller provides maximum solar power to charge the battery. During the fast charge stage, the solar panel and battery are directly connected, with the solar panel voltage clamped at the battery voltage.
c. Equalization Charge Stage:
Once the equalization charge voltage is reached, pulse width modulation (PWM) is activated. The controller maintains the battery voltage at the set level to prevent overcharging. This stage typically lasts for 2 hours before transitioning to the float charge stage.
Once the equalization charge voltage is reached, pulse width modulation (PWM) is activated. The controller maintains the battery voltage at the set level to prevent overcharging. This stage typically lasts for 2 hours before transitioning to the float charge stage.
d. Float Charge Stage:
In this phase, the battery requires minimal additional power. However, the controller continues to provide a weak charging current to meet the power consumption needs of small loads and compensate for self-discharge. This ensures that the battery remains in a fully charged state, extending its service life.
In this phase, the battery requires minimal additional power. However, the controller continues to provide a weak charging current to meet the power consumption needs of small loads and compensate for self-discharge. This ensures that the battery remains in a fully charged state, extending its service life.

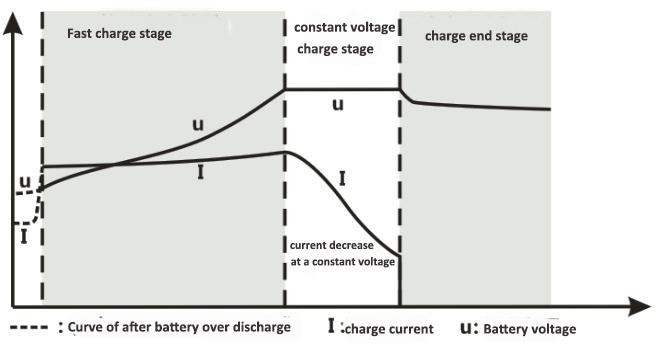

Charging of Lithium battery:
When the battery type selected is lithium, the controller adjusts its charging profile to accommodate the specific charging characteristics of lithium batteries.
3.1.2 Lithium battery
Trickle Pre-Charge Stage:
At the beginning of the charging process, if the battery voltage is too low, the controller initiates a trickle pre-charge stage to protect the battery from damage caused by high current impacts. During this stage, the controller charges the battery with a small current. Once the battery voltage has sufficiently improved, the controller transitions to the fast charge stage.
At the beginning of the charging process, if the battery voltage is too low, the controller initiates a trickle pre-charge stage to protect the battery from damage caused by high current impacts. During this stage, the controller charges the battery with a small current. Once the battery voltage has sufficiently improved, the controller transitions to the fast charge stage.
Fast Charge Stage:
When the battery voltage has not yet reached the set threshold, the controller provides maximum solar power to charge the battery. During the fast charge stage, the solar panel and battery are directly connected, with the solar panel voltage clamped at the battery voltage.
When the battery voltage has not yet reached the set threshold, the controller provides maximum solar power to charge the battery. During the fast charge stage, the solar panel and battery are directly connected, with the solar panel voltage clamped at the battery voltage.
Constant-Voltage Charge Stage:
Once the battery voltage reaches the predefined level, the constant-current charge phase ends, and the controller enters the constant-voltage charge phase. As the charging process continues, the current gradually decreases from its maximum level based on the battery's saturation degree. For a single-string battery, this charge voltage is typically set to 4.2V. The specific voltage should be adjusted according to the parameters provided by the battery manufacturer. (Note: C represents the ratio between the cell's nominal capacity and the charging current. For example, for a cell capacity of 1000mAh, 1C means a charging current of 1000mA.)
Once the battery voltage reaches the predefined level, the constant-current charge phase ends, and the controller enters the constant-voltage charge phase. As the charging process continues, the current gradually decreases from its maximum level based on the battery's saturation degree. For a single-string battery, this charge voltage is typically set to 4.2V. The specific voltage should be adjusted according to the parameters provided by the battery manufacturer. (Note: C represents the ratio between the cell's nominal capacity and the charging current. For example, for a cell capacity of 1000mAh, 1C means a charging current of 1000mA.)
Charge Termination Stage:
During the constant-voltage charge phase, the controller monitors the charging current. When the charging current drops to the end-of-charge current, typically 0.02C, the charging process is terminated.
During the constant-voltage charge phase, the controller monitors the charging current. When the charging current drops to the end-of-charge current, typically 0.02C, the charging process is terminated.
3.2 Discharge Description
Discharge Operation Mode:
The POE-SW804G-SOLAR series controller is designed to operate automatically and unattended, following predefined operational modes.
The POE-SW804G-SOLAR series controller is designed to operate automatically and unattended, following predefined operational modes.
3.2.1 Manual work mode
Manual Mode:
When used in an independent power system, the controller defaults to "manual ON/OFF" mode. By pressing the F1 button on the RC-3 remote control, users can manually activate or deactivate the controller output. If the controller is restarted, its operating status will remain unaffected.
When used in an independent power system, the controller defaults to "manual ON/OFF" mode. By pressing the F1 button on the RC-3 remote control, users can manually activate or deactivate the controller output. If the controller is restarted, its operating status will remain unaffected.
3.2.2 Auto work mode
Automatic Operation with Two Modes:
The controller supports both light control mode and automatic mode, which can be used in conjunction with the LED driver to manage solar street lights. When the PV voltage remains continuously higher than the set light control voltage for more than two minutes (adjustable between 20 seconds and 10 minutes), the controller determines that the system is in daytime mode. Conversely, when the PV voltage remains continuously lower than the set light control voltage for more than two minutes, the controller determines that the system is in nighttime mode.
The controller supports both light control mode and automatic mode, which can be used in conjunction with the LED driver to manage solar street lights. When the PV voltage remains continuously higher than the set light control voltage for more than two minutes (adjustable between 20 seconds and 10 minutes), the controller determines that the system is in daytime mode. Conversely, when the PV voltage remains continuously lower than the set light control voltage for more than two minutes, the controller determines that the system is in nighttime mode.
a. Light-Control Mode:

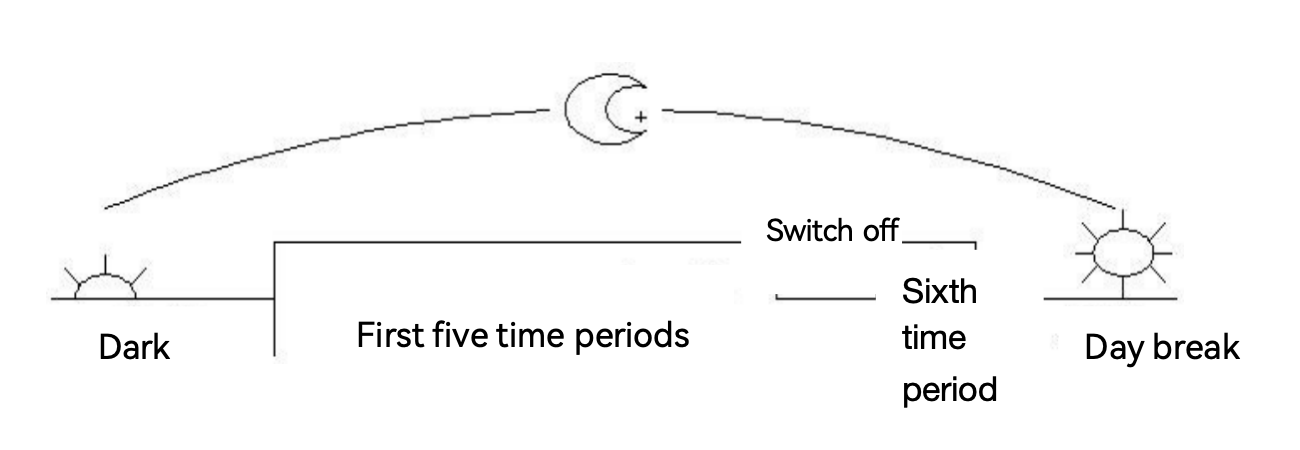

In this mode, the controller automatically closes the output during the daytime and opens the output at night.
In this mode, the controller automatically closes the output during the daytime and opens the output at night.
b. Automatic Mode:
In this mode, the controller closes the output during the daytime and allows the output to operate in six different periods at night. The sixth period corresponds to the morning light period.
In this mode, the controller closes the output during the daytime and allows the output to operate in six different periods at night. The sixth period corresponds to the morning light period.
3.2.3 Test
Testing Mode:
This mode is designed for system testing and closely mirrors the complete light-control mode. The primary difference is the elimination of the delay time before optical signal determination, while all other functions remain intact. This facilitates the verification of proper system functionality during installation and testing.
This mode is designed for system testing and closely mirrors the complete light-control mode. The primary difference is the elimination of the delay time before optical signal determination, while all other functions remain intact. This facilitates the verification of proper system functionality during installation and testing.
4. Trouble Shooting
Phenomenon | Analysis | Solutions |
1. During the daytime, the PV indicator remains dark. 2. During the daytime, the load is active. 3. The load operates exclusively throughout the night. | There is an error in the connection of the solar panel cables. | 1. Verify the correctness of the solar panel cable connections. 2. Disconnect the solar panel cables from the solar controller, measure the open-circuit voltage (Voc), and then reconnect them. |
The load indicator is flashing rapidly, and the LED lamp is not functioning. | 1. The LED lamp cable is either open-circuited or short-circuited. 2. The LED lamp is either damaged or the connection between the LED chips does not meet the driver's specified range. | 1. Reverify the correctness of the LED lamp cable connections. 2. Disconnect the LED lamp cables, then reconnect them. |
The load indicator is flashing rapidly, and the LED lamp is also flashing. | After the LED lamp is powered on, it operates for a few seconds before turning off, and then the LED lamp begins to flash rapidly. | The series connection of LED chips exceeds the controller's output range. Please ensure that the number of LED chips in series is within the specified limits and refer to the parameter table for proper adjustment of the LED chip connections. |
The load indicator is flashing slowly. | The output power exceeds the controller's rated power. | Reduce the output current. |
5. Protection
Load Fault: In the event of any short circuit or open circuit in the controller's load connections, the controller will automatically provide protection, and the load indicator will flash rapidly. The system periodically detects the load fault to determine if it has been resolved. If the fault persists for more than 7 minutes, the controller will cease attempting to switch on the load until the next day, or until maintenance personnel have eliminated the fault and initiated a manual switch-on operation. | |
Overpower Protection: When the load power exceeds the rated power by 5%, the controller will activate the power protection mode to prevent potential damage. | |
Overcharge Protection: When the battery voltage during charging exceeds the safe threshold, the controller will automatically disconnect the charging circuit to prevent potential damage to the battery. | |
Overdischarge Protection: When the battery voltage drops below the safe threshold during discharge, the controller will automatically disconnect the load output to protect the battery. | |
PV Module Reverse Polarity Protection: In the event of reverse polarity connection of PV modules (not recommended), the controller will not be damaged and will resume normal operation once the wiring errors are corrected. |
Battery Polarity Protection: In the event of reverse polarity connection of the battery (not recommended), the controller will not be damaged and will resume normal operation once the wiring errors are corrected. | |
Temperature Sensor Fault Protection: In the event of a short circuit or damage to the temperature sensor, the controller will default to operating at 25°C. This prevents potential errors and damage to the battery that could result from inaccurate temperature compensation. | |
Overcurrent Protection: The system provides overcurrent protection with a 60-second delay when the current exceeds 1.25 times the rated current, featuring inverse time lag characteristics. |
6. Communication Protocol
6.1 Protocol Specification
This protocol is suitable for communication control of the POE-SW804G-SOLAR device.
6.2 Agreement Content
6.2.1 Hardware Interface:
The hardware interface is a 485 interface with red line A and blue line B, operating in half-duplex mode.
6.2.2 Baud Rate:
The baud rate is set to 9600 bps, with 8 data bits, 1 stop bit, and no parity.
6.2.3 Signaling Types:
There are four types of signaling: read parameters, write parameters, state control, and response.
6.2.4 Message Format:
The message format consists of prefix + signaling type + data length + data + checksum. Each component is described as follows:
- Prefix: One byte in length, indicating the transmitting device number. 0x40 represents the POE-SW804G-SOLAR terminal, while 0x20 refers to the sending set.
- Signaling Type: One byte in length, with the following values:
- 0x01: Read POE-SW804G-SOLAR terminal parameters.
- 0x02: Write POE-SW804G-SOLAR terminal parameters.
- 0x03: Clear abnormal state instruction. If there is no abnormal state and the POE-SW804G-SOLAR terminal is in manual mode, it remains unchanged; if there is no abnormal state and the POE-SW804G-SOLAR terminal is not in manual mode, it enters test mode upon receiving a test instruction.
- Data Length: One byte in length, representing the actual byte length of the subsequent data.
- Data: The length is defined by the Data Length field and contains the POE-SW804G-SOLAR controller parameters (refer to the attached table).
- Checksum: One byte in length, calculated as the sum of prefix + command + data length + data bytes, retaining only the lowest byte.
6.2.5 Signal Response Modes:
- When the master device issues a read instruction, the controller responds with the requested data (see the message read example).
- When the master device issues a write instruction, the controller confirms the write operation (see the message write example).
- When the master device issues a state control command, the controller executes the command without providing a response.
The hardware interface is a 485 interface with red line A and blue line B, operating in half-duplex mode.
6.2.2 Baud Rate:
The baud rate is set to 9600 bps, with 8 data bits, 1 stop bit, and no parity.
6.2.3 Signaling Types:
There are four types of signaling: read parameters, write parameters, state control, and response.
6.2.4 Message Format:
The message format consists of prefix + signaling type + data length + data + checksum. Each component is described as follows:
- Prefix: One byte in length, indicating the transmitting device number. 0x40 represents the POE-SW804G-SOLAR terminal, while 0x20 refers to the sending set.
- Signaling Type: One byte in length, with the following values:
- 0x01: Read POE-SW804G-SOLAR terminal parameters.
- 0x02: Write POE-SW804G-SOLAR terminal parameters.
- 0x03: Clear abnormal state instruction. If there is no abnormal state and the POE-SW804G-SOLAR terminal is in manual mode, it remains unchanged; if there is no abnormal state and the POE-SW804G-SOLAR terminal is not in manual mode, it enters test mode upon receiving a test instruction.
- Data Length: One byte in length, representing the actual byte length of the subsequent data.
- Data: The length is defined by the Data Length field and contains the POE-SW804G-SOLAR controller parameters (refer to the attached table).
- Checksum: One byte in length, calculated as the sum of prefix + command + data length + data bytes, retaining only the lowest byte.
6.2.5 Signal Response Modes:
- When the master device issues a read instruction, the controller responds with the requested data (see the message read example).
- When the master device issues a write instruction, the controller confirms the write operation (see the message write example).
- When the master device issues a state control command, the controller executes the command without providing a response.
6.2.6 Data format:
The word | order | DL | data field | Accumulation and verification |
Terminal device 0x40 Master control device 0x20 | 0x01 Read the command 0x02 Write the command 0x03 Load switch reverse or abnormal state clear or test command 0x24 Read status | Data area data length N bytes | Data 1 Data 2... Data N | Accumulation: prefix + command + data length + data 1 + data 2 +......+ Data N, take the last byte of the cumulative sum. |
Schedule: Definition of the Data Area
When the POE-SW804G-SOLAR terminal responds to a read command from the master device, it must include all data fields specified in the table and none can be omitted.
When the POE-SW804G-SOLAR terminal responds to a read command from the master device, it must include all data fields specified in the table and none can be omitted.
When the master device sends the write command to the POE-SW804G-SOLAR terminal, all data bits in the table must be included and cannot be omitted.
Data shall be defined in order in the table, in the following format.
Write command | ||
The main control equipment is sent | ||
order | Functional representation | Content definition |
0 | The word | 0x20 Master device sent |
1 | order | 0x02 Write instructions |
2 | DL | 39 Data 0x27 |
3 | Product model | Fix to 0x00 |
4 | maximumoutput | Fix to 0x00 |
5 | The first time | High four byte hours, four lower ten digits of minutes, after the same. Example 0x12 represents 1 hour and 20 minutes |
6 | First time current | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
7 | The second time | Four bytes higher represent hours, and four lower indicate ten digits in minutes |
8 | Second period current | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
9 | The third time | Four bytes higher represent hours, and four lower indicate ten digits in minutes |
10 | Third period current | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
11 | intelligent control | 0x00 off 0x01 mode 1 0x02 Mode 2 |
12 | advanced setup | 0x00 off 0x01 open |
13 | Load control mode | 0x01 Manual mode 0x02 auto-mode mode 0x03 Debug mode 0x04 Pure light control mode |
14 | Light control delay time | Minutes; such as 0x10, representing 16 minutes |
15 | Optical control voltage | 0x01 is for the 0.1V,59=5.9V |
16 | Battery type | 0x01 colloid 0x02 lead acid 0x03 custom 0x04 lithium battery |
17 | Overvoltage voltage | 0x01 is for the 0.1V,170=17.0V |
18 | Over and over voltage | 0x01 is for the 0.1V,111=11.1V |
19 | Over-put back voltage | 0x01 is for the 0.1V,126=12.6V |
20 | Raise the charging voltage | 0x01 is for the 0.1V,146=14.6V |
21 | floating charge voltage | 0x01 is for the 0.1V,136=13.6V |
22 | Power supply priority | The default value is 00 |
23 | The fourth time | Four bytes higher represent hours, and four lower indicate ten digits in minutes |
24 | Fourth period current | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
25 | The fifth time | Four bytes higher represent hours, and four lower indicate ten digits in minutes |
26 | Fifth period current | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
27 | The sixth time | Four bytes higher represent hours, and four lower indicate ten digits in minutes |
28 | Load sleep output power | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA. |
29 | Sensor enabling period | The highest bit of binary code indicates the on / off state of the sensor function at a time, 1 on 0 off.1111 1111 means that the sensor is valid during all periods, 0111 1111 means that the sensor is invalid in the first period and the remaining periods are valid. |
30 | Current in the sixth period | 0 is 150 mA 1 is 200 mA; and so on, for every 1 increase in this value, the corresponding output current increases by 50 mA.255 for 0 mA, 254 for 50 mA and 253 for 100 mA |
31 | System voltage level | 0x01 is 12V (valid only if the battery type is lithium battery) 0x02 for 24V |
32 | charging voltage | 0x01 is 0.1V,140=14.0V (valid only if battery type is lithium battery) |
33 | charging current | 0x01 is 0.1A,100=10.0A (valid only if battery type is lithium battery) |
34 | Charging end current | 0x01 is 0.1A,3=0.3A (valid only if battery type is lithium battery) |
35 | Manufacturer setting | Fix to 0x00 |
36 | Customer Settings | Fix to 0x00 |
37 | Protocol version number | Fix to 0x00 |
38 | Charging high temperature protection | 65 for 77℉(25℃) 40 for 32℉( 0℃) |
39 | Charging low temperature protection | 65 for 77℉(25℃) 40 for 32℉ (0℃) |
40 | Discharge high temperature protection | 65 for 77℉(25℃) 40 for 32℉(0℃) |
41 | Discharge low temperature protection | 65 for 25℃ 40 for 0℃ |
42 | Accumulation and verification | |
Read the state | ||
The main control equipment is sent | ||
order | Functional representation | Content definition |
0 | The word | 0x20 Master device sent |
1 | order | 0x24 Read the state instruction |
2 | DL | 0x02 No data bits |
3 | Sensor status | 0x00 still 0x01 trigger |
4 | Customer code | |
5 | Accumulation and verification | |
Terminal equipment sent | ||
order | Functional representation | Content definition |
0 | The word | 0x40 The terminal equipment is sent |
1 | order | 0x24 Read the state instruction |
2 | DL | The 0x2E 46-bit data |
3 | accumulator voltage H | 120 representation 12V |
4 | accumulator voltage L | |
5 | Battery status | 0x00 overrelease 0x01 underpressure 0x02 normal 0x03 charging limit 0x04 overpressure 0x09 over temperature protection |
6 | load current H | 15 representation 0.15A |
7 | load current L | |
8 | load voltage H | 350 representation 35V |
9 | load voltage L | |
10 | Load status | 0x00 off 0x01 on 0x02 open circuit protection 0x06 straight through protection 0x09 short circuit protection 0x0A Overload protection 0x11 overload warning |
11 | Optical cell current H | 50 indicates that 5A OxFF indicates the invalid data |
12 | Optical cell current L | |
13 | Optical cell voltage H | 200 representation 20V |
14 | Optical cell voltage L | |
15 | Optical cell status | 0x00 battery cell low voltage, 0x01 battery voltage high, 0x02 battery reaches charging voltage, 0x03 battery overvoltage, 0x0A charge overcurrent |
16 | external temperature | 65 representation 25℃ |
17 | Internal temperature | 65 representation 25℃ |
18 | Working days L | 1 indicates 1 day |
19 | Overtimes (16 days) | 1 represents 1 time |
20 | Today's discharge quantity is H | |
21 | Today's discharge quantity, L | 1 representation 1WH |
22 | Yesterday the discharge quantity is H | |
23 | Yesterday the discharge quantity L | 1 representation 1WH |
24 | Accumulated discharge quantity H | |
25 | Accumulated discharge quantity: L | 1 representation 1KWH |
26 | Today's charge level is H | |
27 | Today's charge level is L | 1 indicates that 1WH OxFF indicates the invalid data |
28 | Yesterday the charge is H | |
29 | Yesterday, the charge quantity is L | 1 indicates that 1WH OxFF indicates the invalid data |
30 | Accumulated charge quantity: H | |
31 | Accumulated charge quantity: L | 1 indicates that 1KWH OxFF indicates the invalid data |
32 | Working days H | |
33 | Battery power H | -- |
34 | Battery power L | -- |
35 | Battery allowance | 0~100 1 represents 1% |
36 | The number of overlets is H | 1 Show 1 time |
37 | The number of overlets L | |
38 | Overpressure number H | 1 Show 1 time |
39 | Overpressure number L | |
40 | Number of underpressure: 16 days | 1 Show 1 time |
... | continue to have... | |
49 | Accumulation and verification | |
Remote control command | ||
The main control equipment is sent | ||
order | Functional representation | Content definition |
0 | The word | 0x20 Master device sent |
1 | order | 0x05 Remote control command |
2 | DL | 0x04 Quad digit data |
3 | Remote mode switch | 0 Close 1 open |
4 | load switch | 0 Close 1 open |
5 | output power | 0~100%。Maximum percentage of current value set for the active period For example, if 1 time period 150mA 2 time period 1000 mA, the rest of the time period is 00.00 output Power is set to 50. The actual output power is 100050 / 100 = 500mA |
6 | heartbeat time | 0x01 indicates 1 min.60 indicates 60 min. After the telecommunication command is sent successfully The controller starts time. During the set heartbeat time, if the controller is not there again Receiving the communication command, then exit the remote control mode to run automatically. |
7 | Accumulation and verification | |
Terminal equipment sent | ||
order | Functional representation | Content definition |
0 | The word | 0x40 The terminal equipment is sent |
1 | order | 0x05 Remote control command |
2 | DL | 0x01 1-bit data |
3 | Set success | 0x01 |
4 | Accumulation and verification | 0x47 |
Clears up the historical data command | ||
The main control equipment is sent | ||
order | Functional representation | Content definition |
0 | The word | 0x20 Master device sent |
1 | order | 0x28 Remote control command |
2 | DL | 0 |
3 | Accumulation and verification | 0x48 |
Related Articles
What is Perpetual PoE technology?
Perpetual PoE is a technology that allows devices to receive power from the network even when the PSE switch is rebooting. Currently, rebooting the switch causes a temporary loss of power on the ports, which leads to a complete reboot of all ...POE-EXT3001LP UltraReach PoE Extender
Overview POE-EXT3001LP is one port UltraReach PoE extender for both indoor and outdoor applications, featuring 2600ft (or 800 meters) super long distance PoE power and data transmission. Features PoE EXTENDER - Extend extra 330ft or 100m POE + ...What is Quick-PoE technology?
Introduction Power-over-Ethernet (PoE) technology allows network devices to receive power through the same cable that is used for data communication. This can be useful in situations where there is no convenient electrical outlet nearby or where it ...Linovision PoE Over Coax Converter User Manual 2023
This version was updated on December 9, 2022.What is PoE over Coax?
PoE over coax? What is PoE first? Power over Ethernet (PoE) enables Ethernet cables like Cat 5e/Cat 6 to transmit electric power and data signal at the same time, meaning plug in an Ethernet cable, and no other power cable is needed. So PoE over coax ...
